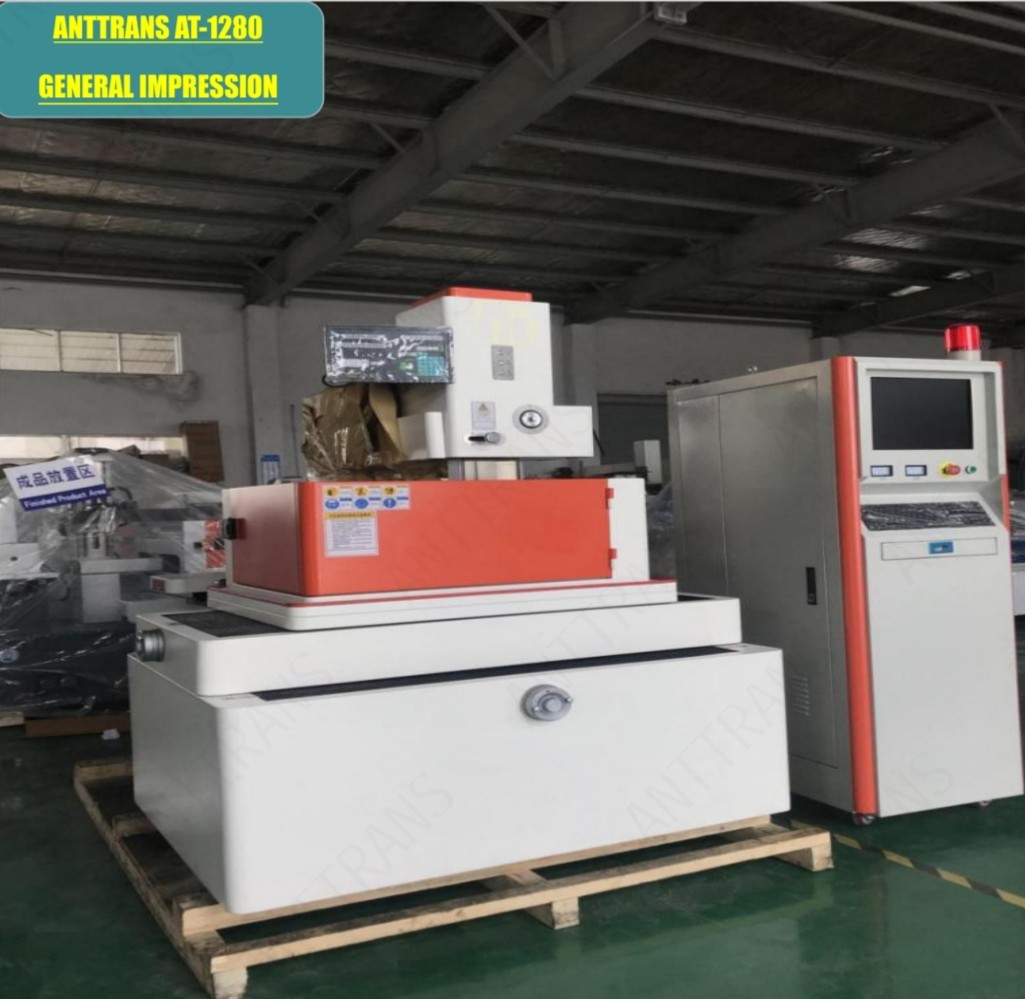

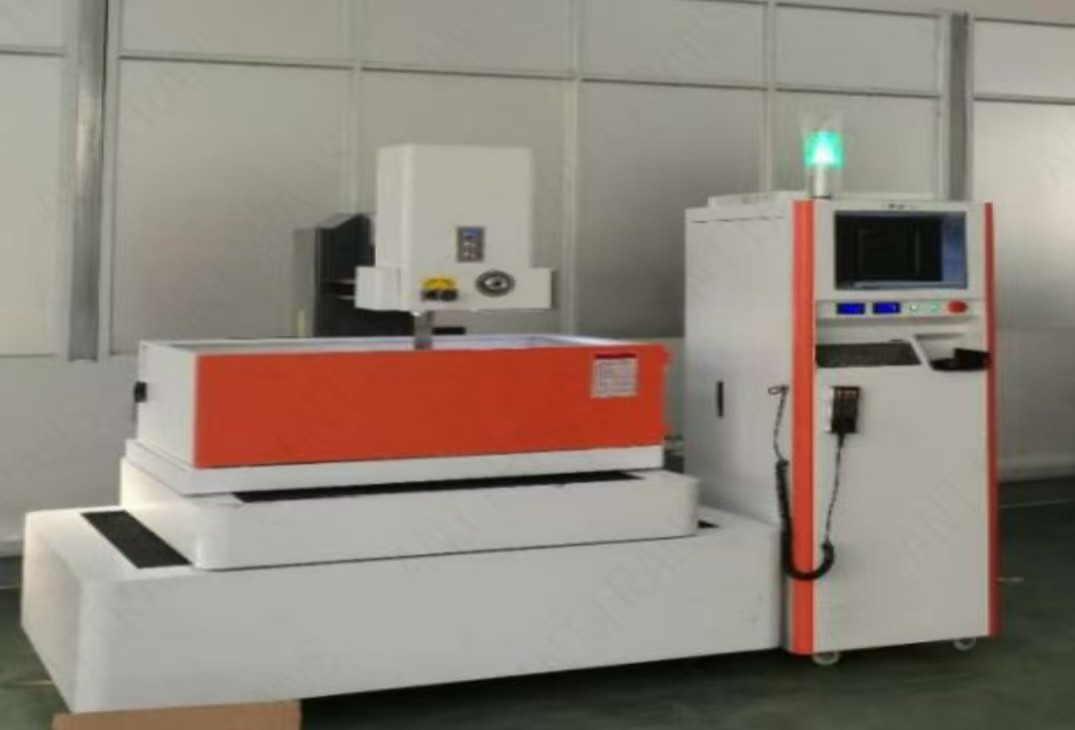

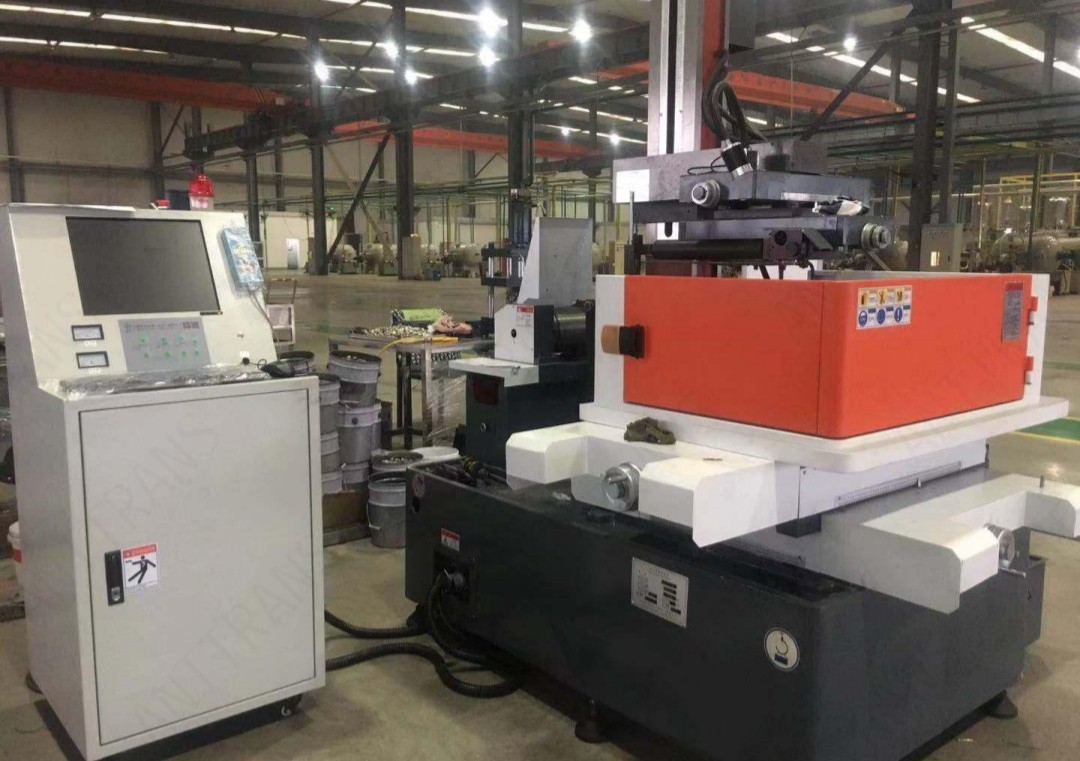

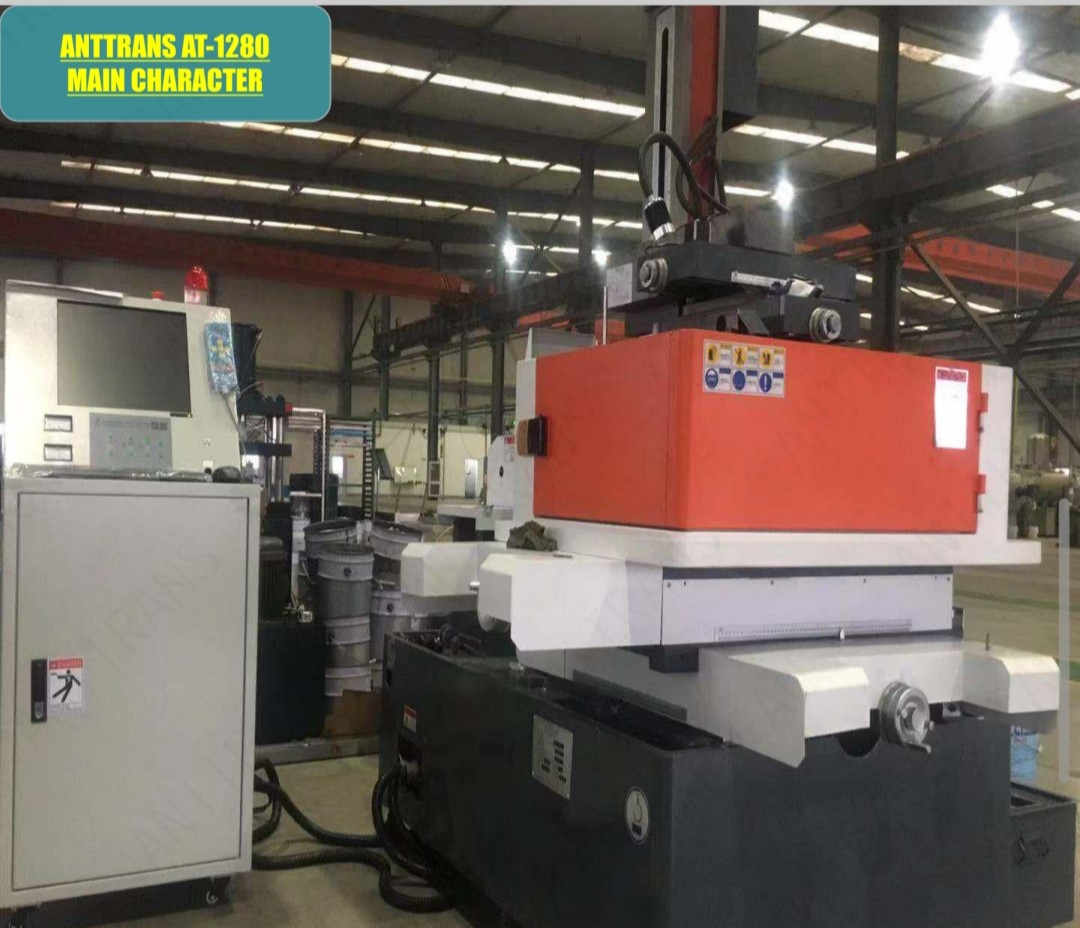

FIVE AXIS CNC WIRE CUT EDM MACHINE

No.

Quoted Specification

1.

A) TECHNICAL SPECIFICATIONS A-1 Machine Type: Submergd

A-2 Traverse Range X-axis: 1200mm

A-3 Traverse Range Y-axis: 800mm

A-4 Traverse Range Z-axis: 500mm

A-5 X,Y Heidenhain Linear Scale A-6 Anti Collision on Z-Axis

A-7 Wire Diameter Range:◎ 0.15~0.30mm

A-8 Max Taper Angle:±32 Degree/H100mm

A-9 Accuracy: 4μm

A-10 Repeatability: 2um

A-11 Surface Roughness:Ra 0.1~0.3 μm

A-12 Automatic Vertical Alignment Jig: 02 Set

A-13 Filter:04 Pcs

A-14 Clamping Tool Kit:04 Set

A-15 Brass Wire(Non-reusable):50 Roll

A-16 Ion Exchange Resin:02 Set

A-17 Tool Box:01 Set

A-18 Input Interface:LAN,USB Driver,RS-232

A-19 Wire Guide

A-20 Flushing Nozzles A-21 Energizing plates A-22 Water Chiller

A-23 Auto Water Quality Control and Temperature Control A-24 Auto Wire Threading System

B)POWER SUPPLY

B-1 400±10%,50Hz,3Phase

B-2 Transformer &Automatic Voltage Regulator(AVR)

C)CONTROLLER FEATURES AND FUNCTIONS C-1 Windows CE Controller· 19"Touch Display C-2 Hard Disc ITB

C-3 Conversational(Script)Programming

C-4 Auto Machining Cycle C-5 Retrace Function

C-6 Home Returm Position C-7 Cutting Path Display 3D C-8 Simulation 3D Display C-9 Dry Run

C-10 Pattern Rotation

C-11 Automatic Vertical Alignment C-12 Backlash Compensation

C-13 Optional Block Skip

C-14 Start Point Return C-15 Break Point return C-16 Subprogramm

C-17 Linear,Circular Interpolation C-18 Arc Compensation

C-19 Corner Compensation

C-20 Wire Consumption Compensation C-21 Manual Data Input(MDI)

C-22 Single Block

C-23 Optional Stop

C-24 Automatic Position C-25 Edge Position

C-26 Slit Position

C-27 Hole Center Position C-28 Side Position Center C-29 DXF Support

D)SPARE PARTS

D-1 Spare Parts:Electrica/Mechanical/Electronic spare parts may necesarily be provided for satisfactory

performance of the machine.Details are as follows:

ANNEX 1

E)STANDARD DOCUMENTATION (in English)

E-1 Standard Documentation may comprise of following documents

E-2 Hard copies 02 Sets

E-3 Machine Operational Manuals.

E-4 Control Programming Manuals.

E-5 Electrical/Electronics Maintenance manuals E-6 Mechanical Maintenance Manuals

E-7 Machine initialization data and parameter E-8 Alarm messages and fault diagnostics

E-9 Machine test reports

Soft copies(Reproducible) 1Set E-10 Electrical drawings.

E-11 PLC program lists LADDER/STL.

E-12 Re loadable machine initialization data

and machine parameters.

Software(Backup Copies) 1Set

E-13 Operating system for PLC/NC control

E-14 Software for PC data communication

E-15 Software for tool &work measuring system.

E-16 Machine Simulation,Programming &Training Software of control (PC Version).

F)PRE-DELIVERY INSPECTION AND TRAINING F-1 The machine will be subjected to detailed Inspection

&Training at the manufacturer's premises by

02 Engineers of the buyers for atleast 02 weeks before dispatch.

G) PACKING

G-1 Packing Sea case basic machine along with production packages and all accessories.
