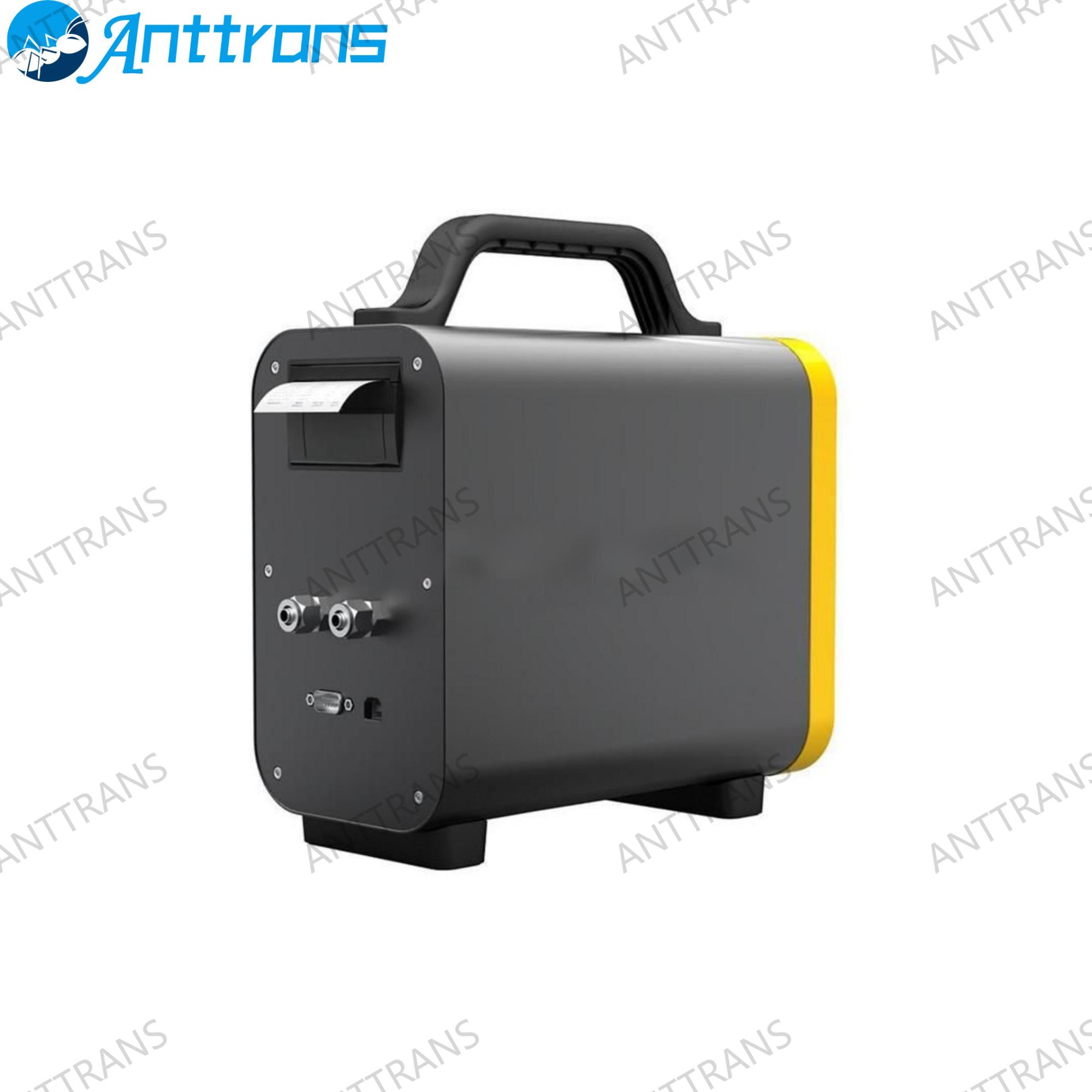

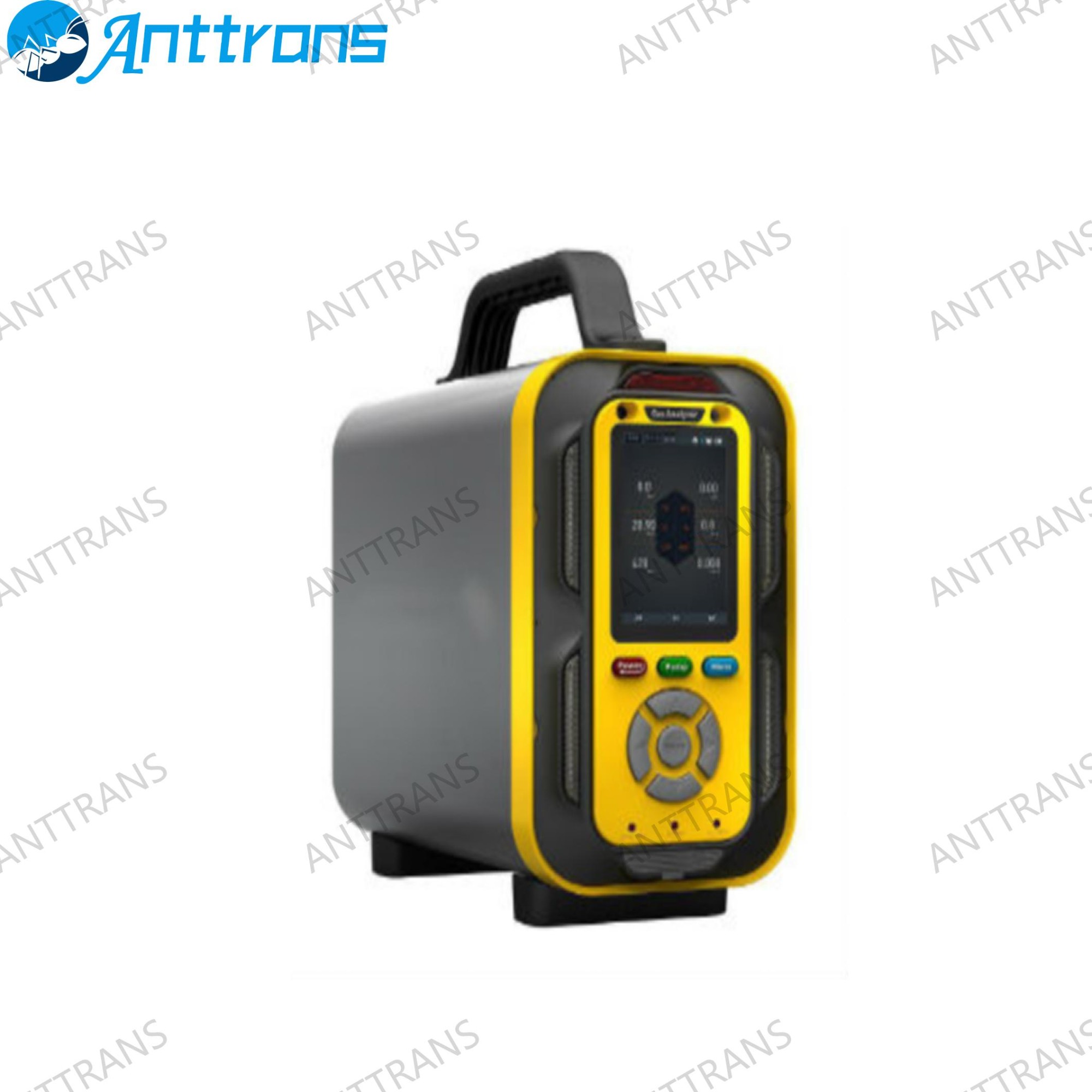

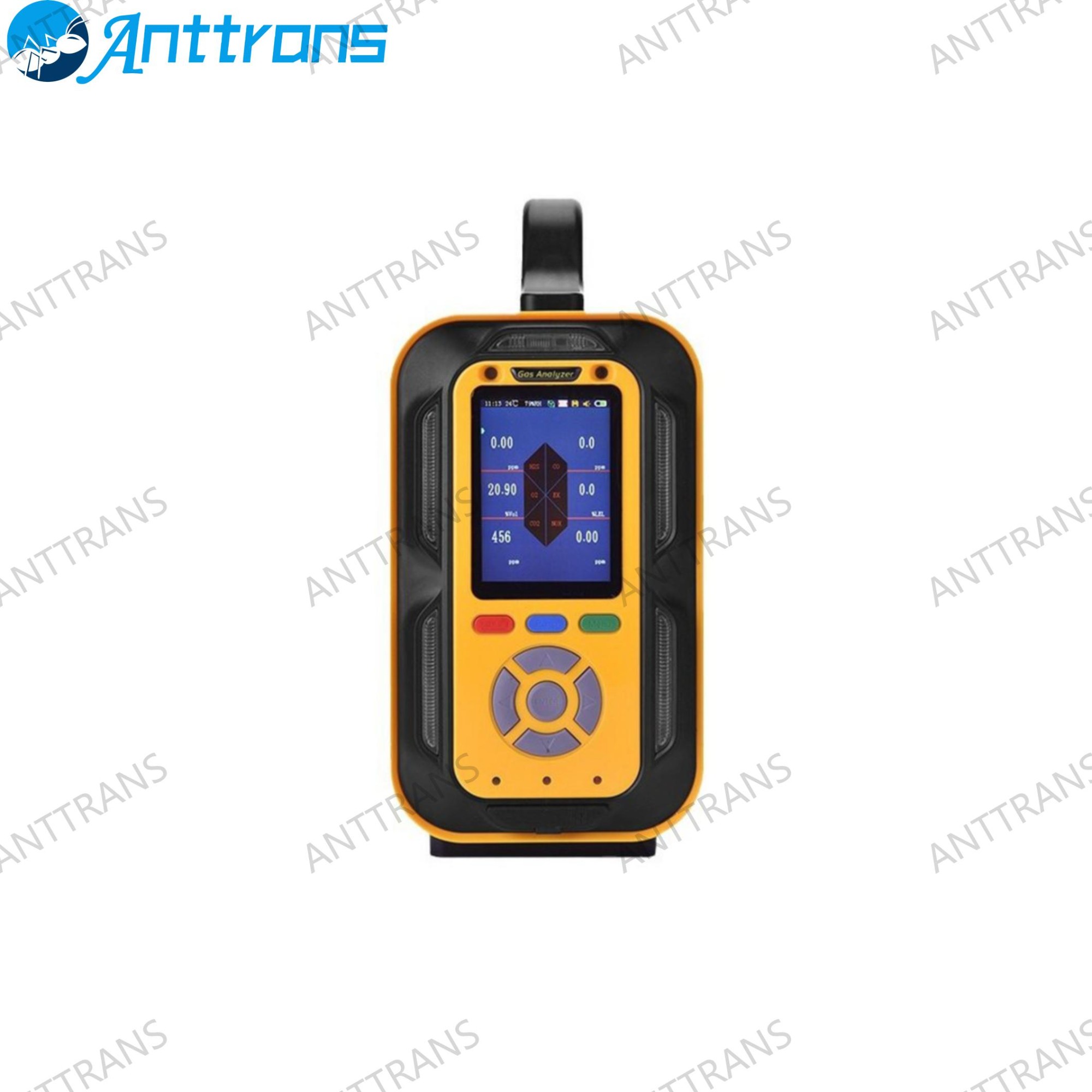

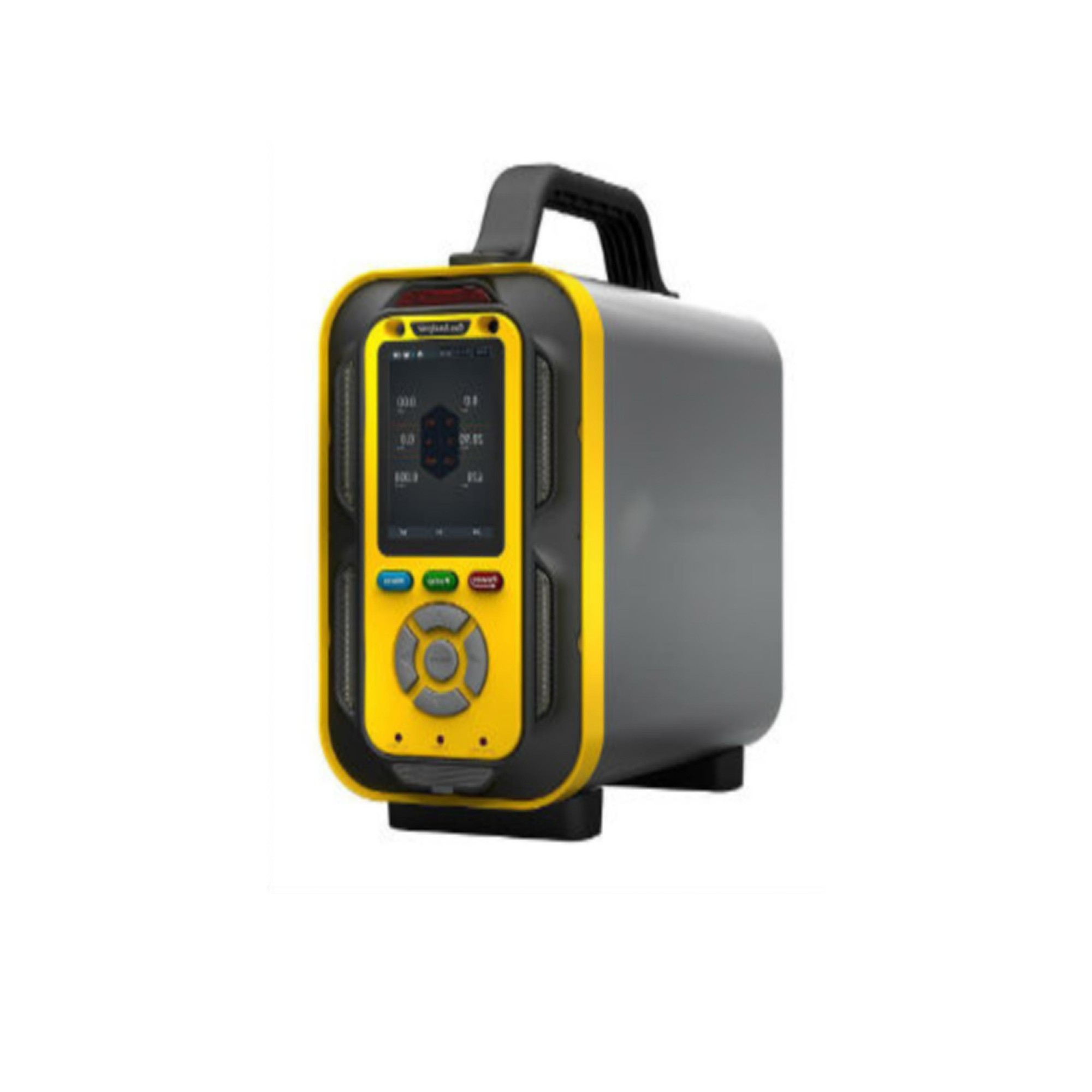

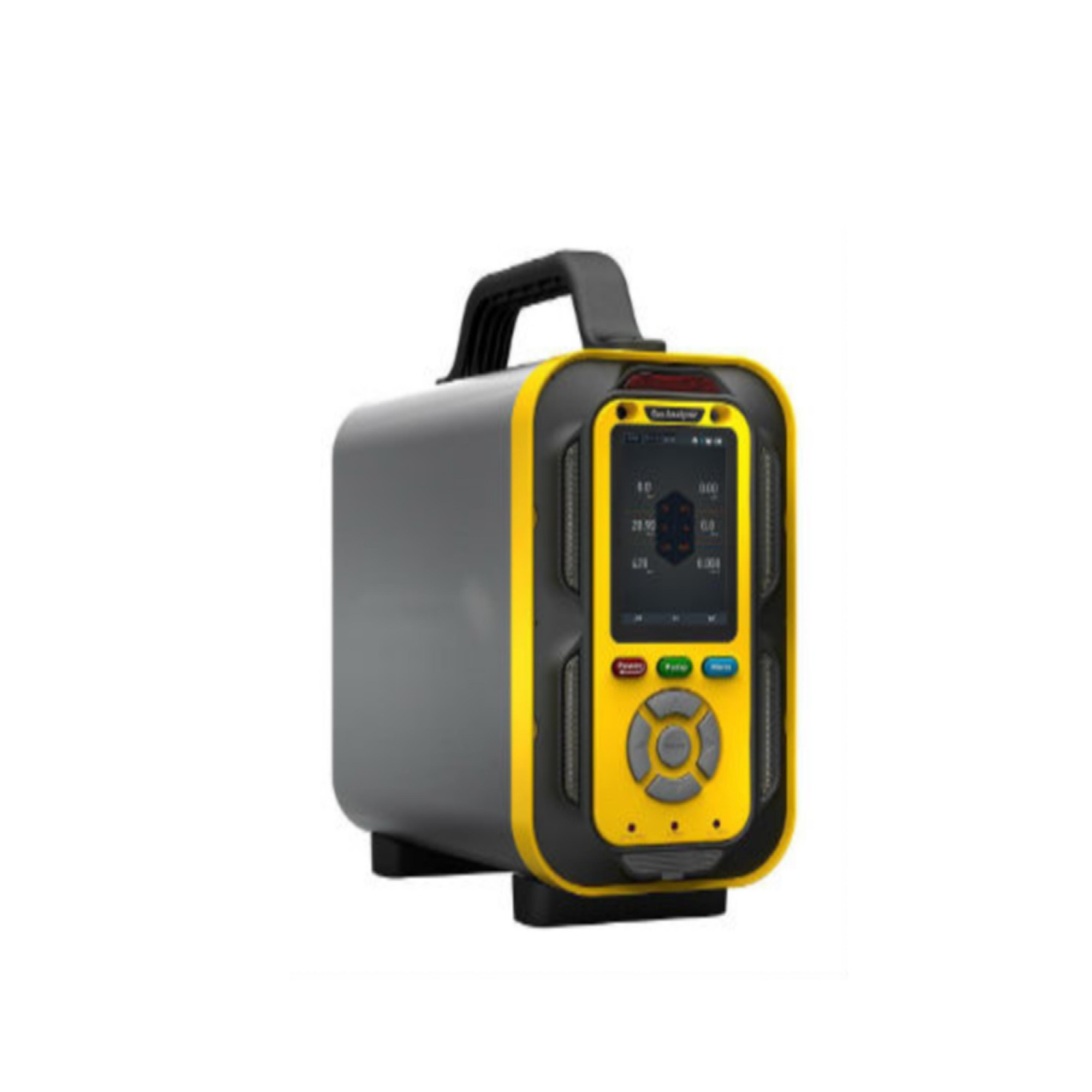

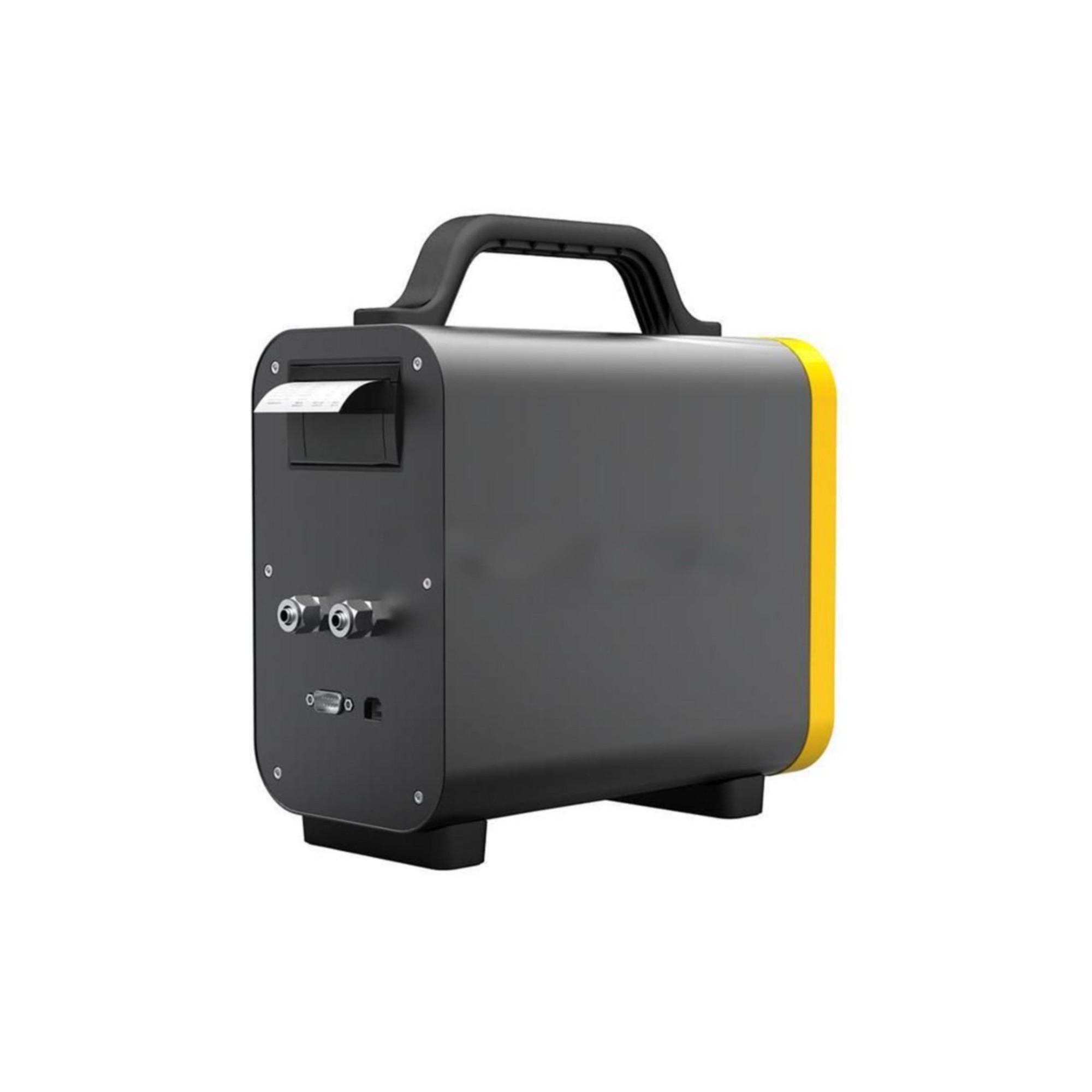

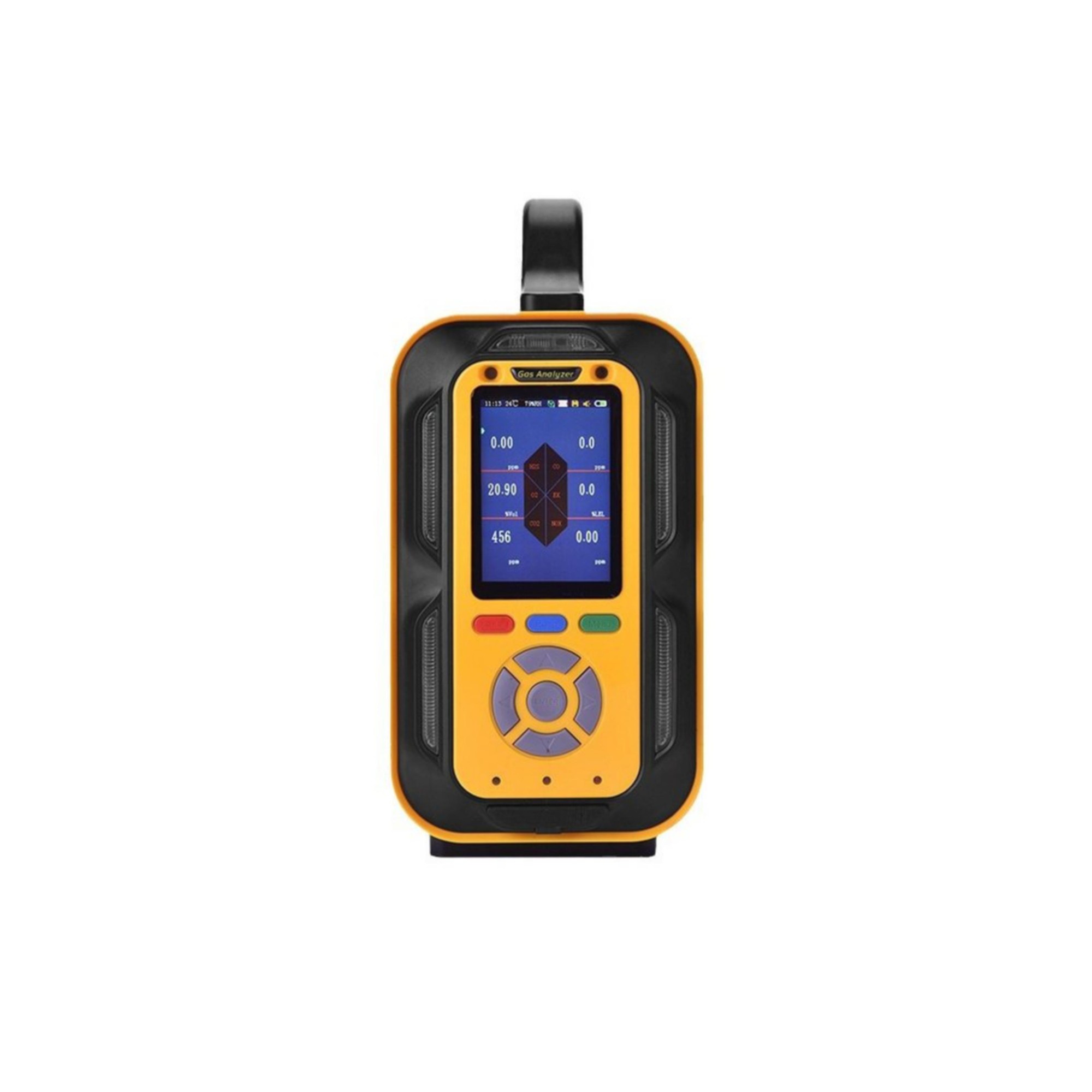

Handheld Multi-Gas Analyzer/ Pump-Suction Multi-Gas Analyzer

Product Introduction:
The AT-MT6X is a multi-gas analyzer capable of selecting any 24 types of toxic and harmful gases. It is widely used for detecting gas concentrations in various environments, primarily in industries such as petroleum, warehousing, municipal gas, firefighting, metallurgy, biopharmaceuticals, energy and power, power plants, chemicals, emergency detection, confined space detection, pipeline inspection, environmental protection bureaus, and electronics.

Product Features:

1. Pump-suction sampling (high configuration with 3 pumps in operation), with a sampling distance exceeding 10 meters.

2. 3.5-inch high-definition color screen.

3. Large-capacity data storage, capable of storing 200,000 data entries, transferable to a computer via USB.

4. Adjustable display modes for 24 gases, including triple-interface display, single-item display, and curve display.

5. Quick switching of gas concentration units.

6. Display of maximum, minimum, and average values.

7. Chinese and English display interfaces.

8. Built-in water and dust filter, along with temperature compensation function to ensure measurement accuracy.

9. 10,800mA high-capacity lithium polymer rechargeable battery.

10. Three-level alarm (sound, light, vibration) for user convenience in identifying dangers.

11. Simultaneous detection of any 24 gases.

12. Intrinsic safety circuit design, resistant to static electricity and electromagnetic interference.

13. Optional high-temperature and high-humidity preprocessing system and handle for more complex environments.

14. Optional infrared wireless printer, capable of printing company name, time, ambient temperature and humidity, gas name, and concentration.

15. Optional remote wireless transmission.

Technical Specifications:

· Detected Gases: O₂ (Oxygen), CO (Carbon Monoxide), CO₂ (Carbon Dioxide), H₂S (Hydrogen Sulfide), SO₂ (Sulfur Dioxide), NO₂ (Nitrogen Dioxide), Cl₂ (Chlorine), F₂ (Fluorine)

· Detection Principle: Electrochemical, In frared

· Measurement Ranges:

o O₂: 0-100%

o CO: 0-5000ppm

o CO₂: 0-100% Vol.

o H₂S: 0-100ppm

o SO₂: 0-5,000ppm

o NO₂: 0-20ppm

o Cl₂: 0-20ppm

o F₂: 0-10ppm

· Sampling Method: Pump-suction

· Sampling Flow Rate: 800ml/min

· Accuracy: ±1%FS

· Repeatability: ≤±1%

· Linearity: ≤±1%

· Response Time: T90 ≤ 20S

· Display: 3.5-inch high-definition color screen

· Display Languages: Chinese and English

· Display Content: Convertible between 6-group gas display, single-group large-font gas display, and single-group curve graphic display

· Battery Capacity: 10,800mA polymer rechargeable battery

· Charger: USB charger

· Data Storage: 200,000 data entries

· Data Communication: USB data interface or optional RS232 interface

· Printer: Optional infrared wireless printer

· Protection Level: IP66

· Explosion-Proof Grade: ExiaⅡCT6

· Operating Temperature: -40℃ to 70℃

· Operating Humidity: 0-99%RH

· Dimensions and Weight: 235mm × 205mm × 120mm, 2.5kg

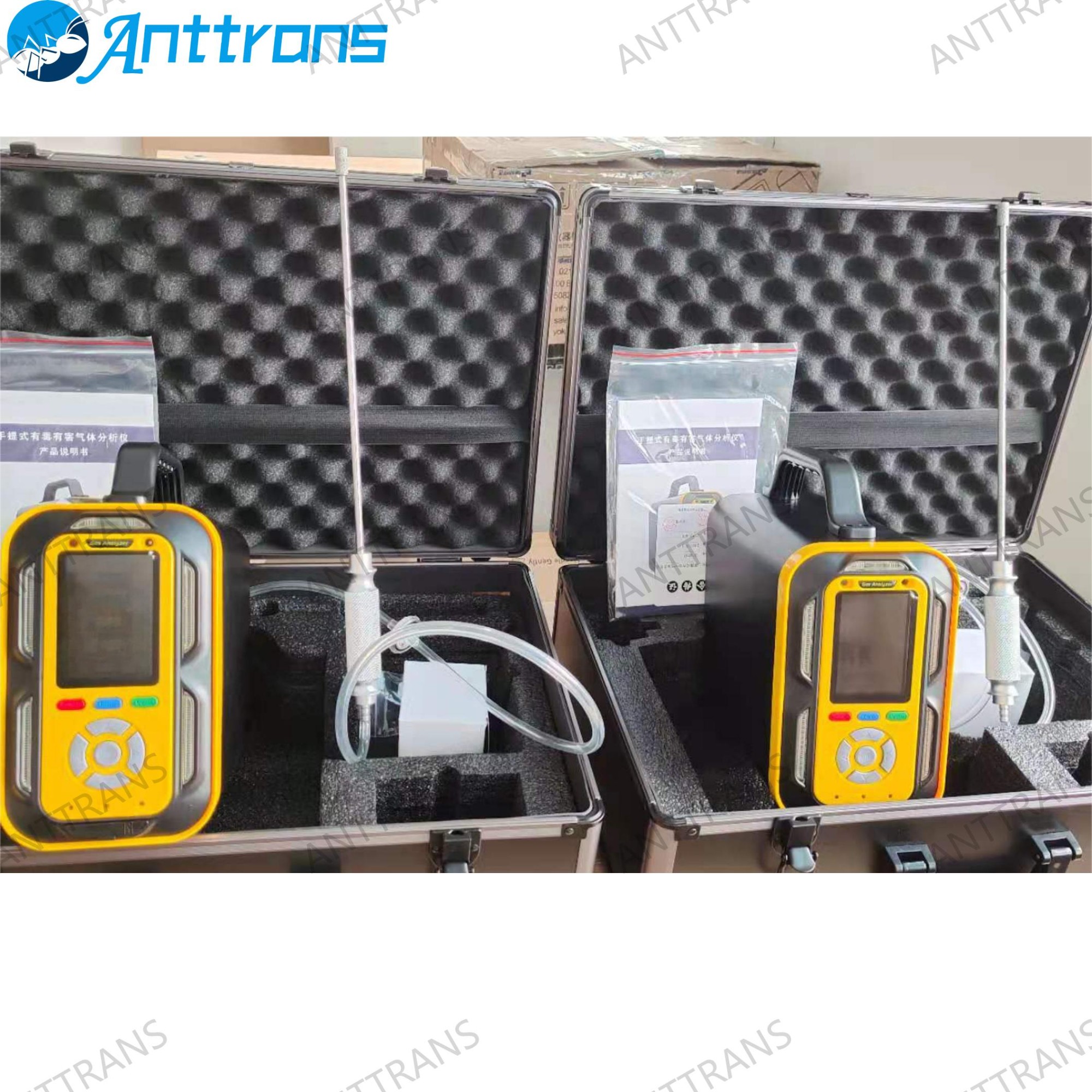

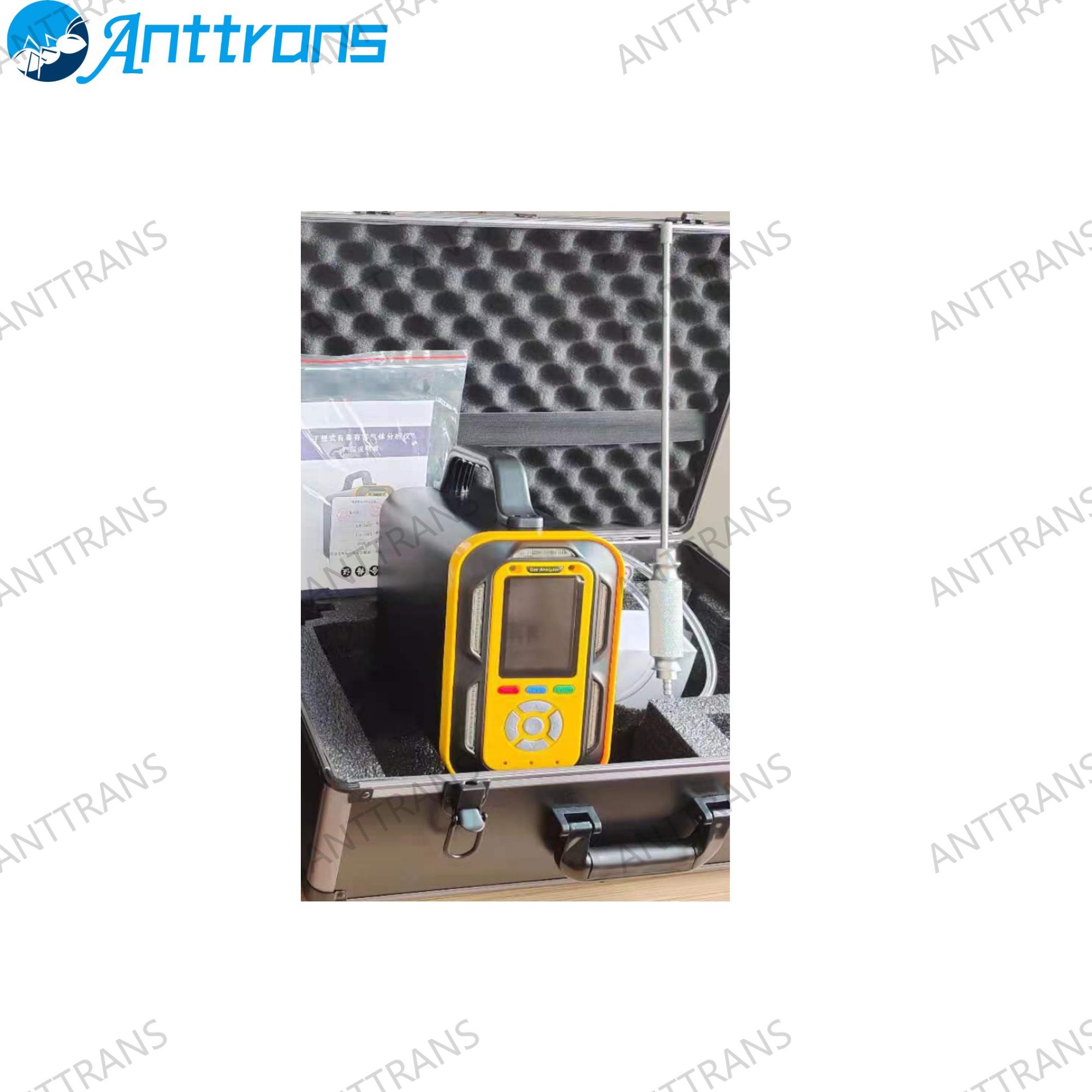

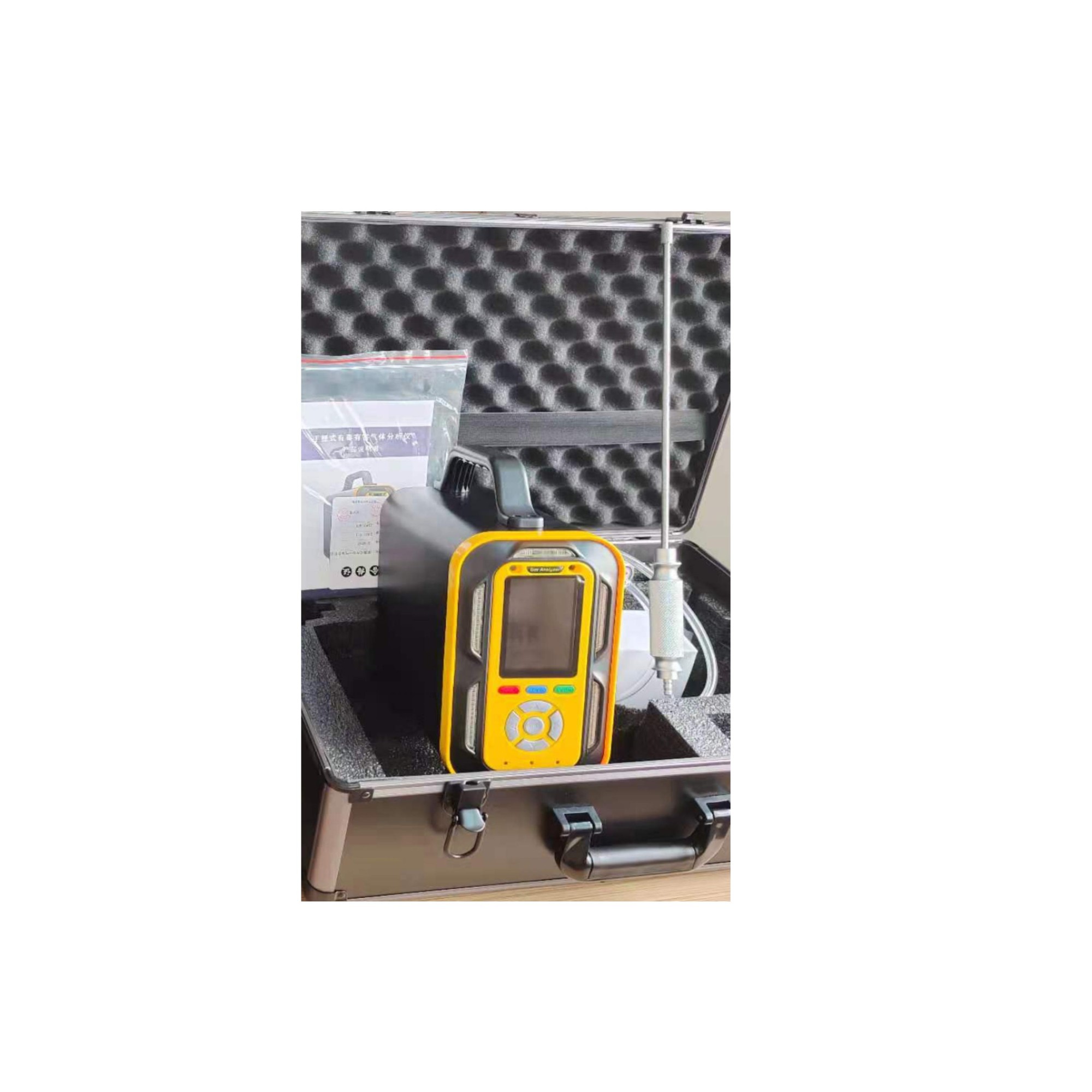

Standard Configuration:
Main unit, USB charger, water and dust filter, 40cm stainless steel sampling handle, aluminum case, certificate of conformity, warranty card, instruction manual

High-Temperature Probe Gun:

· Model: AT-L30

· Probe Length: 30cm

· Applicable Temperature: ≤1100℃

· Probe Diameter: 8mm

· Hose Length: Approximately 1.5m
