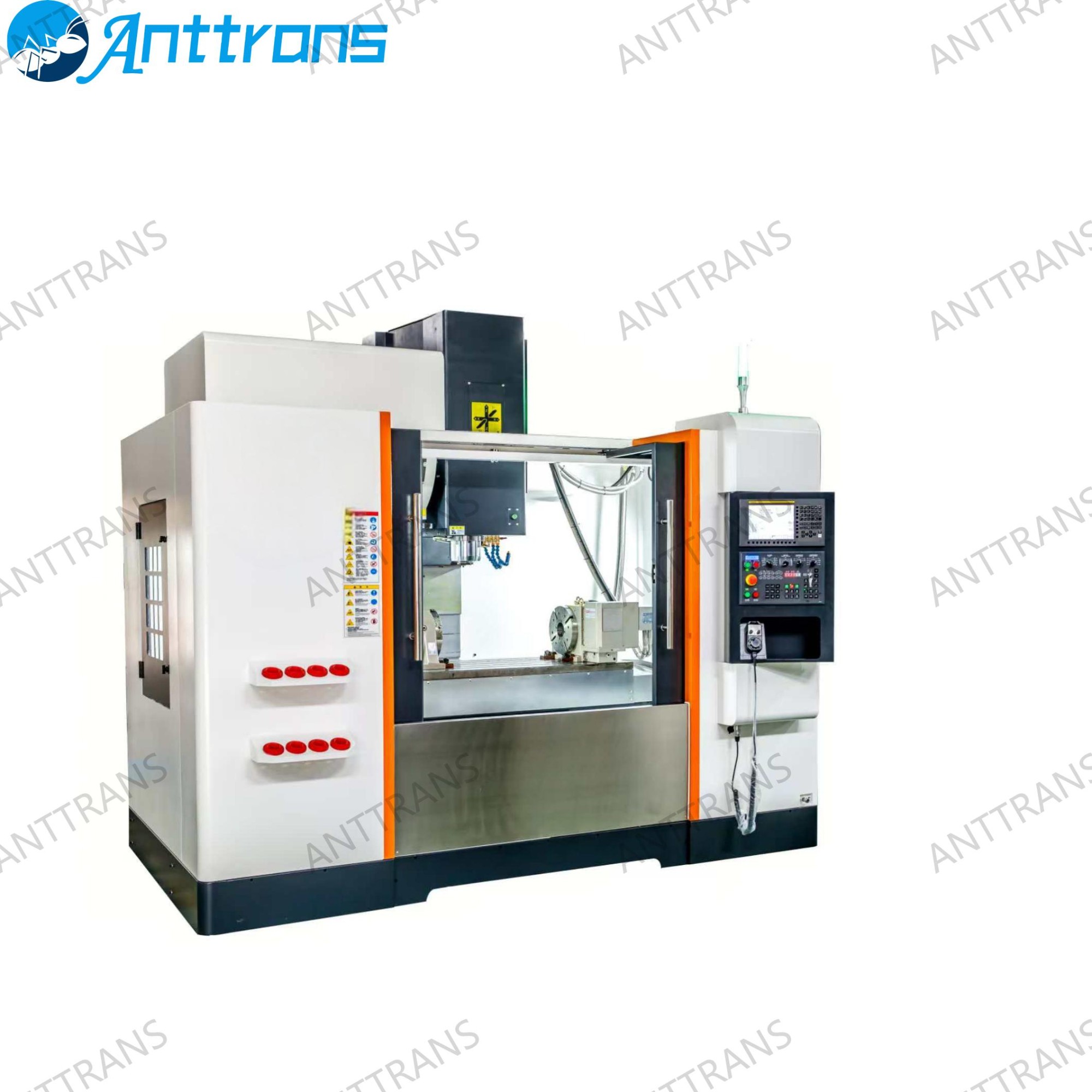

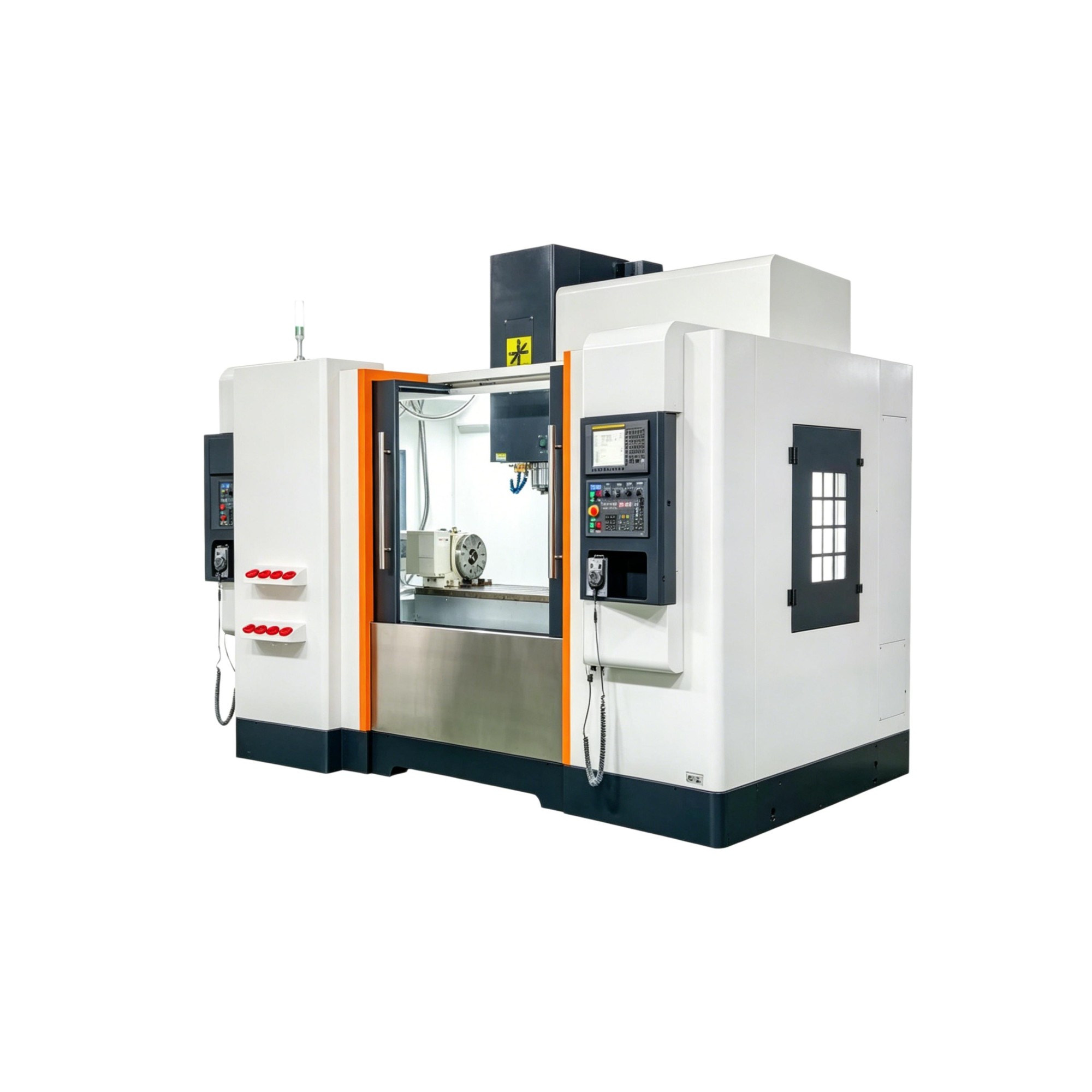

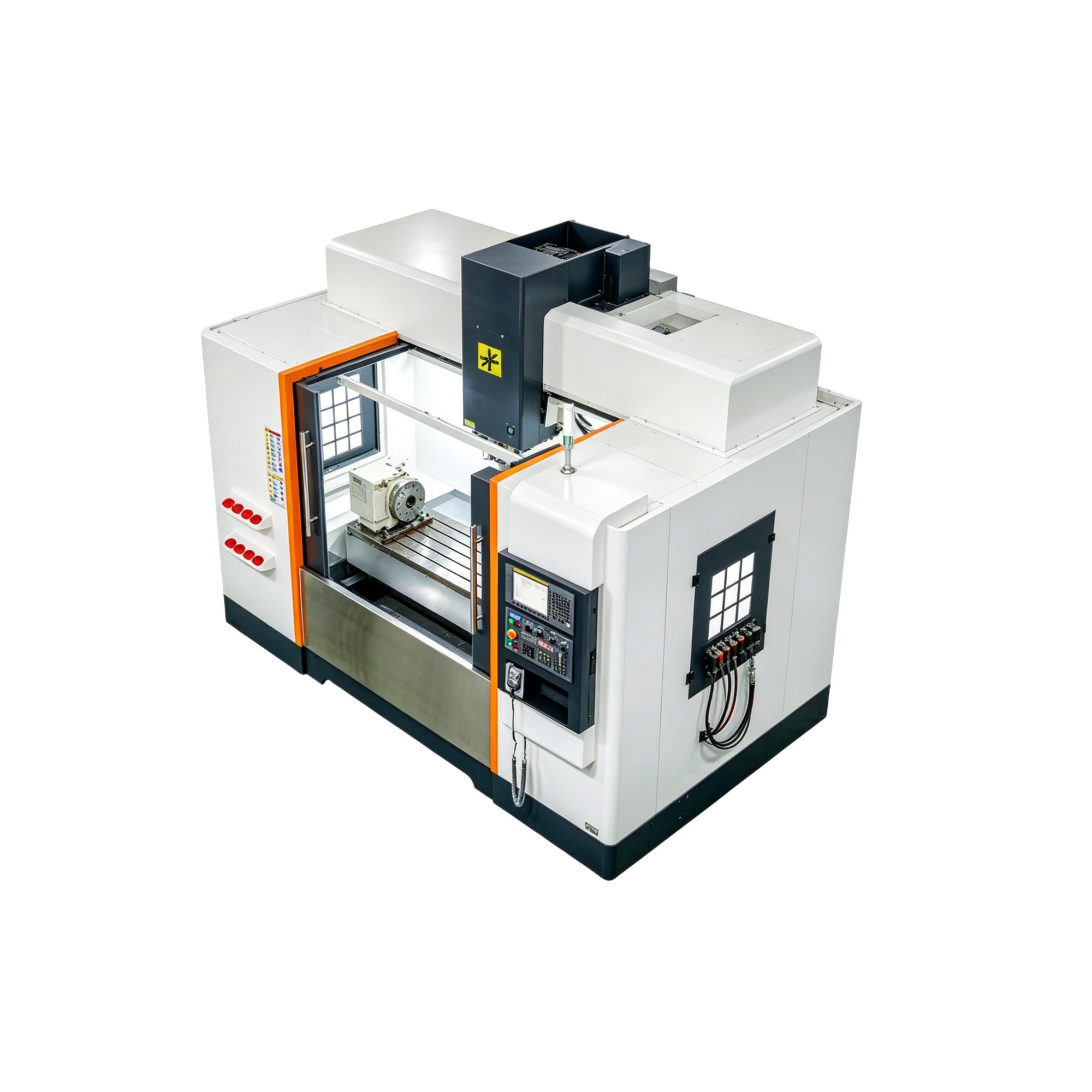

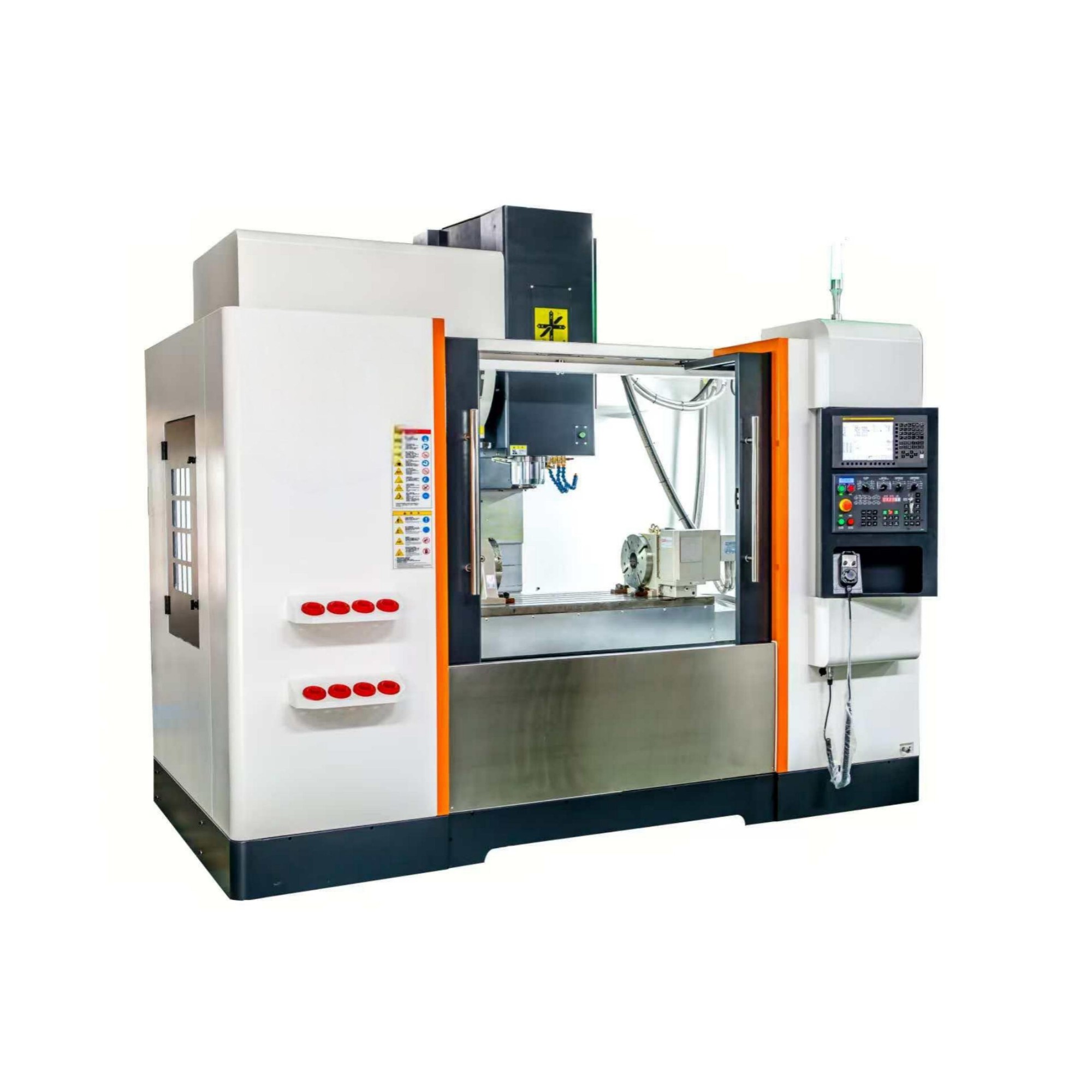

Two-Axis Linear Guide CNC Machine Tool

Product Introduction

1.Guide Rail System: Adopts a combination of two linear guides and one hard guide rail, with the linear guide width being 45mm. This design integrates the high speed and precision of linear guides with the high rigidity of hard guide rails, meeting various machining requirements.

2.Tool Magazine Configuration: Equipped with BT40 tool holders and a tool magazine capacity of 24 tools, enabling rapid tool changes and improving machining efficiency.

3.Spindle Speed: The spindle speed can reach up to 12 ,000 rpm, suitable for high-speed cutting, enhancing surface quality and machining efficiency, and meeting the processing requirements for various materials.

4.CNC System: Utilizes the Mitsubishi M80 system, known for its high stability, powerful functionality, and user-friendly interface, enabling precise control and efficient machining.

5.Travel Parameters: The X-axis travel is 800mm, the Y-axis travel is 550mm, and the Z-axis travel is 500mm. The large travel range accommodates the processing of larger-sized workpieces.

6.Worktable Size: The worktable measures 1000×500mm, capable of bearing workpieces of a certain weight, suitable for processing various types of parts.

7.Footprint and Weight: The machine occupies an area of 2700×2350×2470mm and weighs 6500kg. The overall structure is relatively compact while maintaining stability.
