Engraving and Milling Machine
- Product Item : AT-61055
- Category： CNC Precision Machine Tools
- Product description：

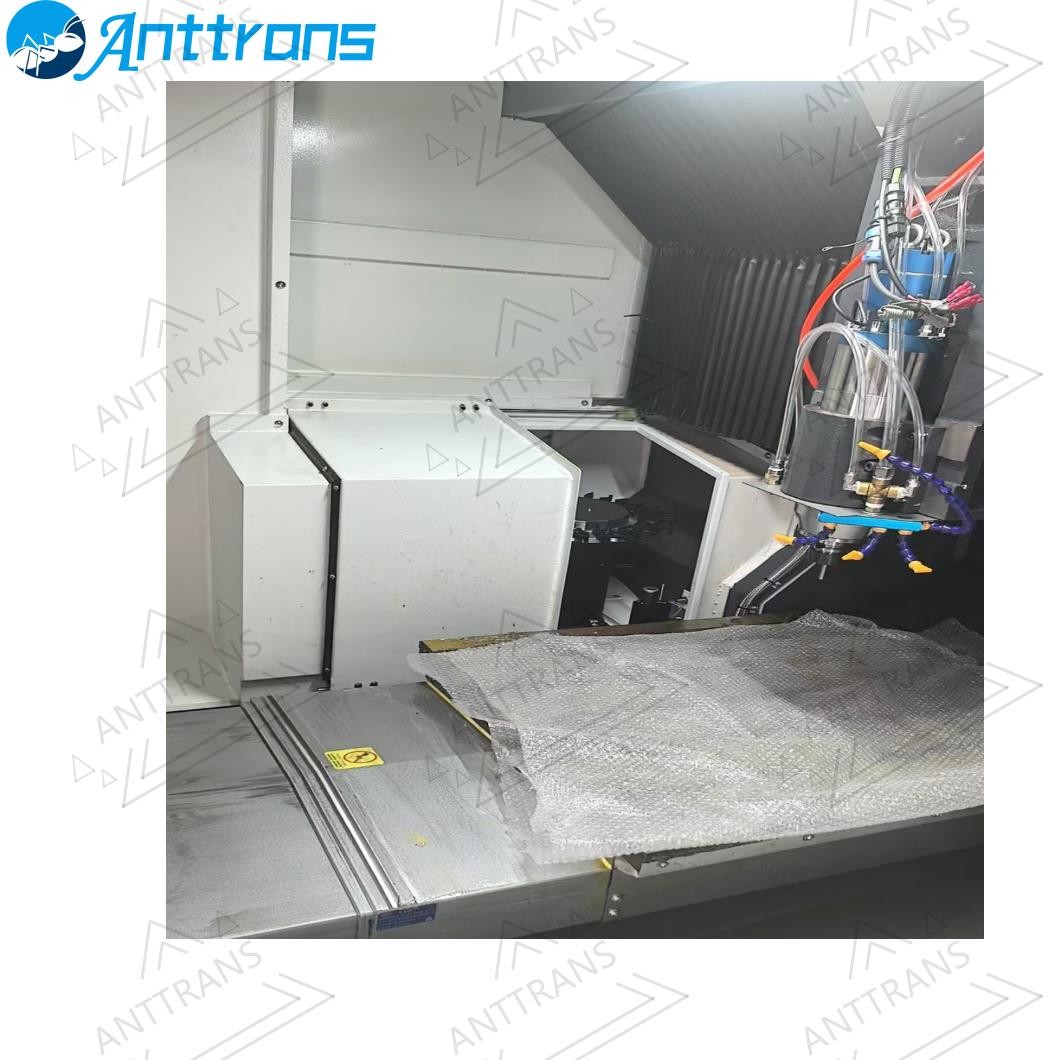

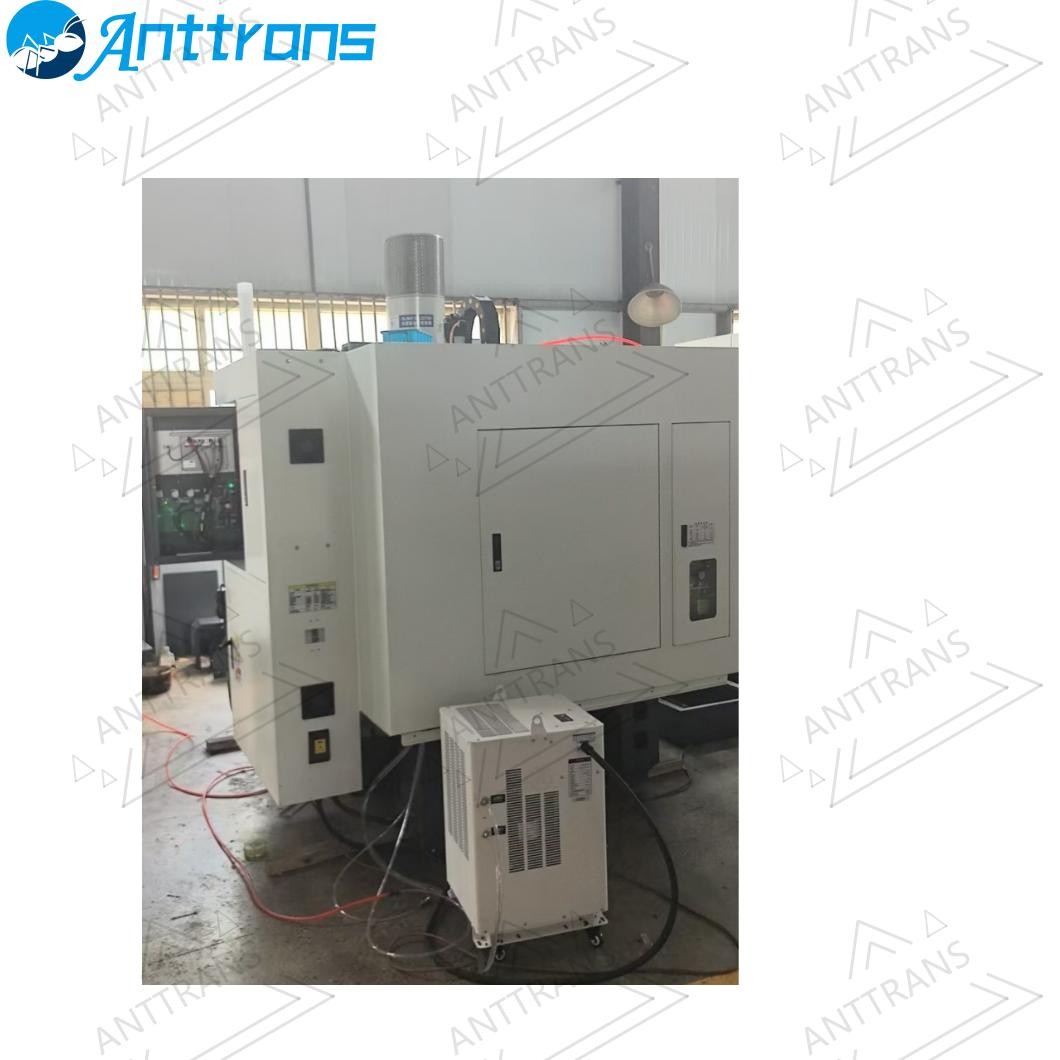

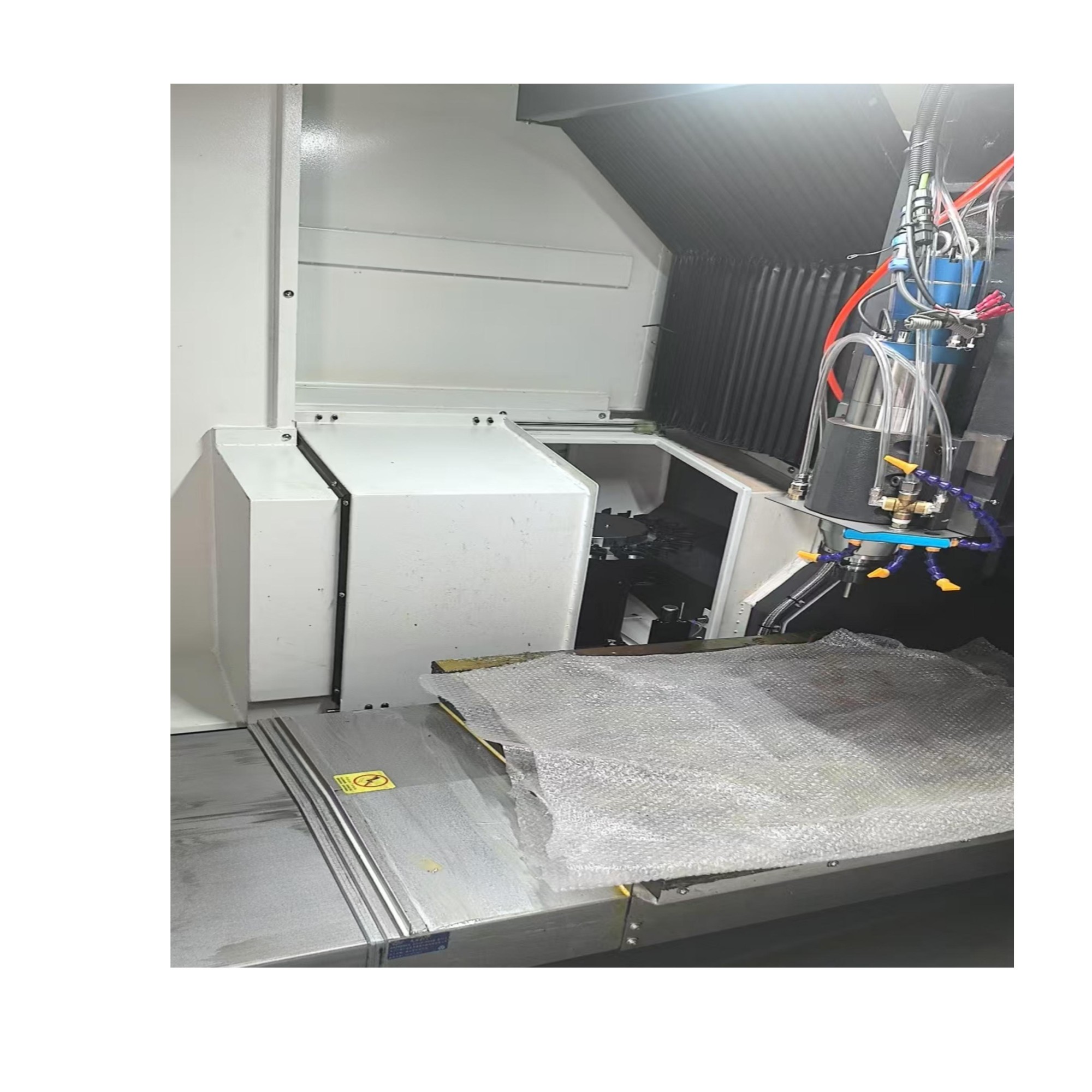

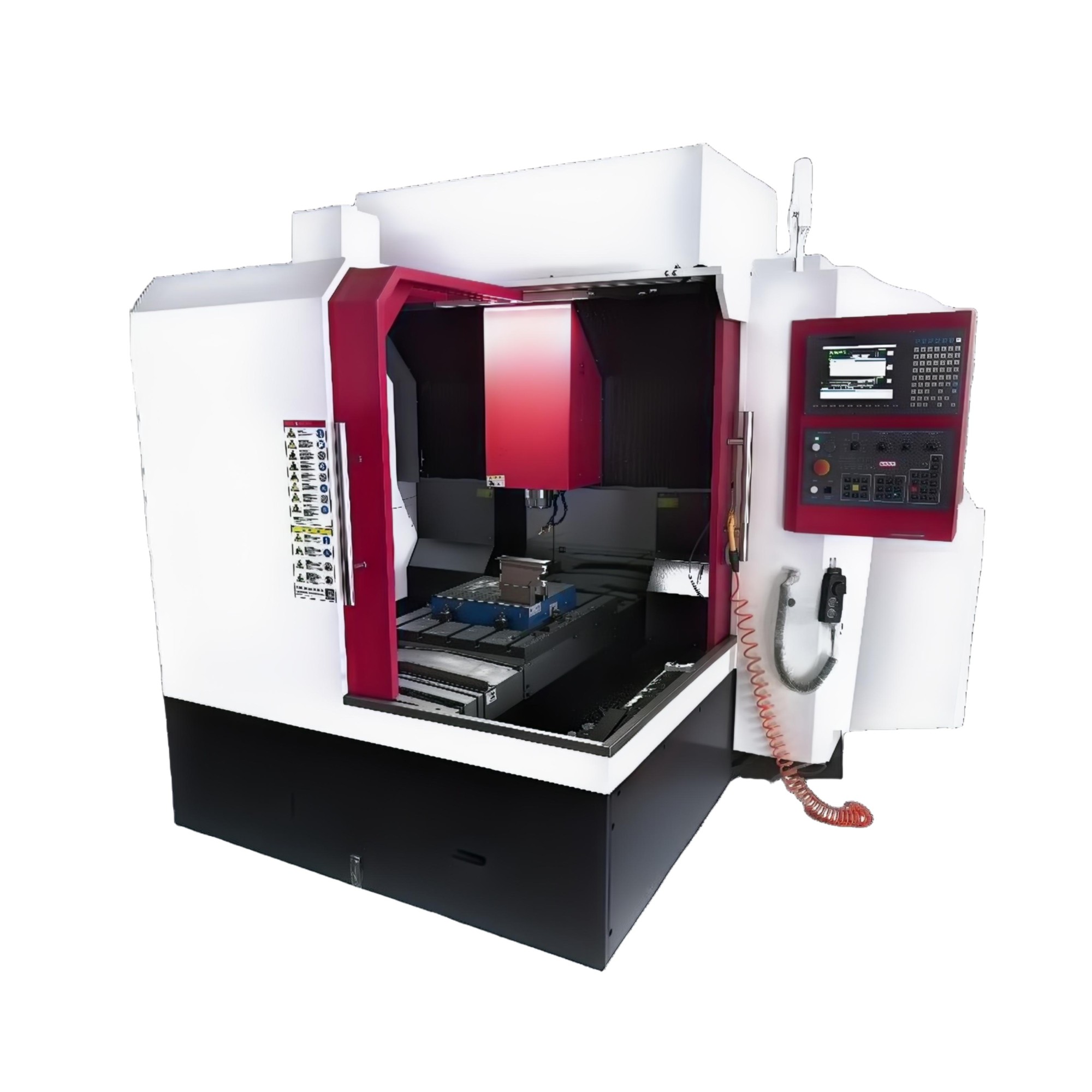

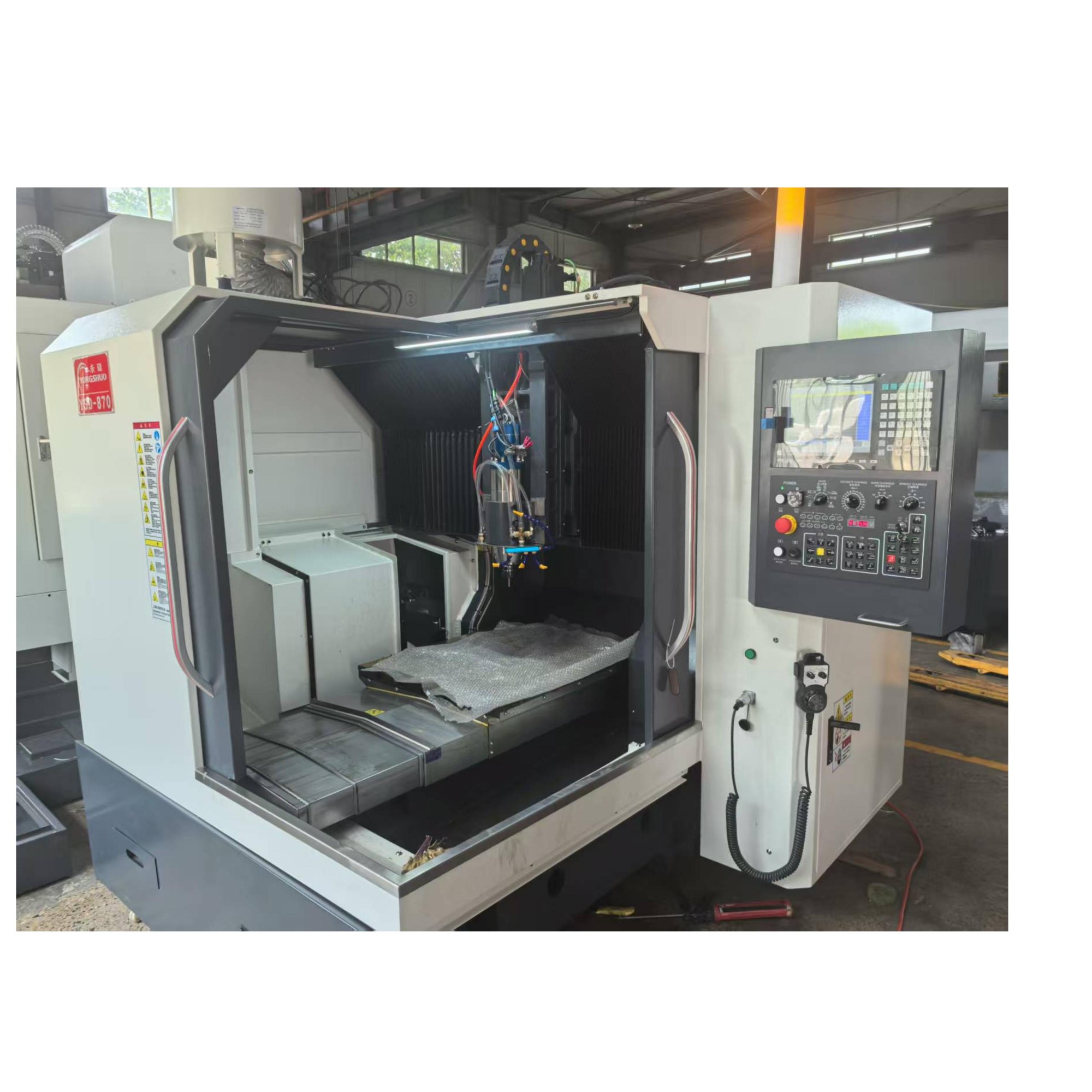

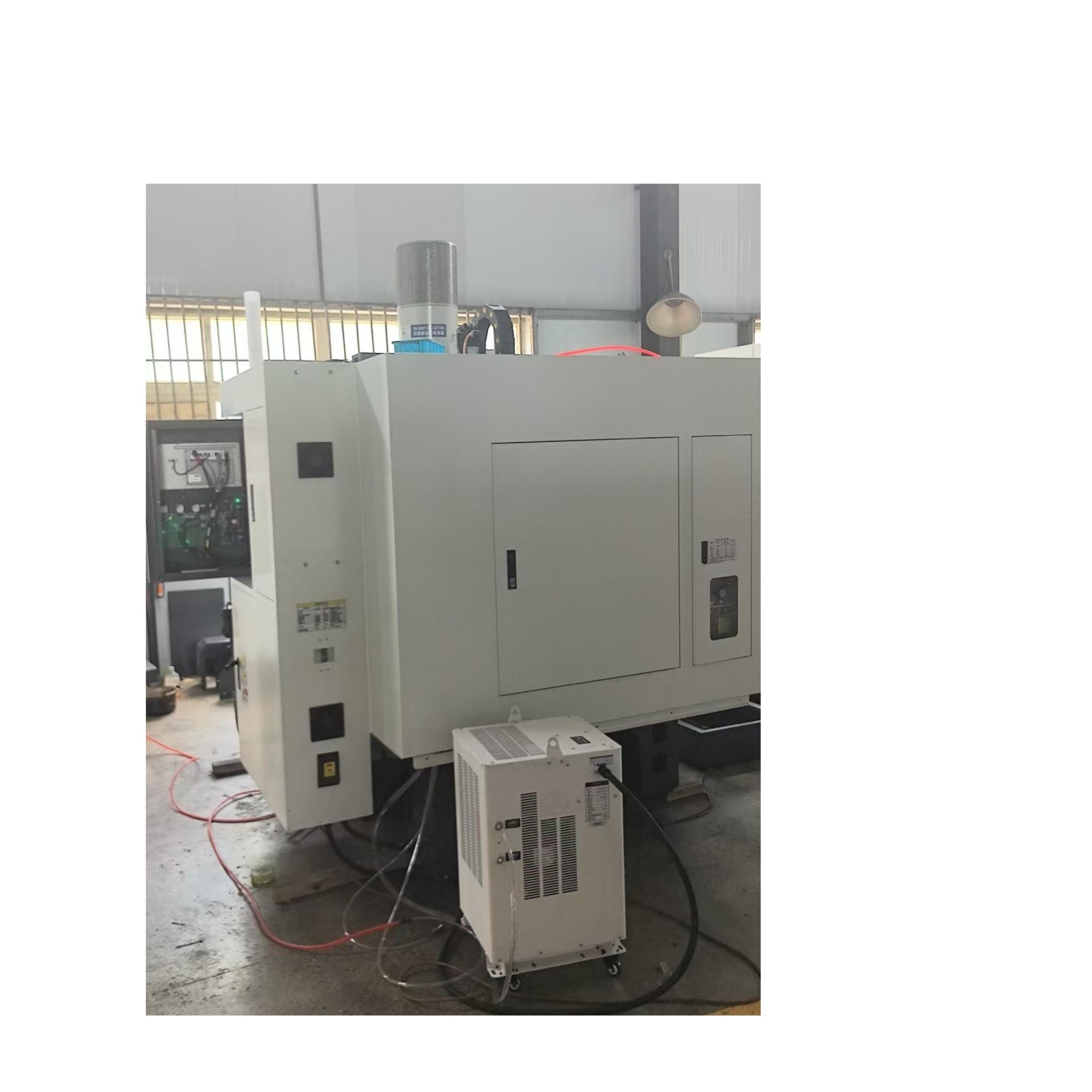

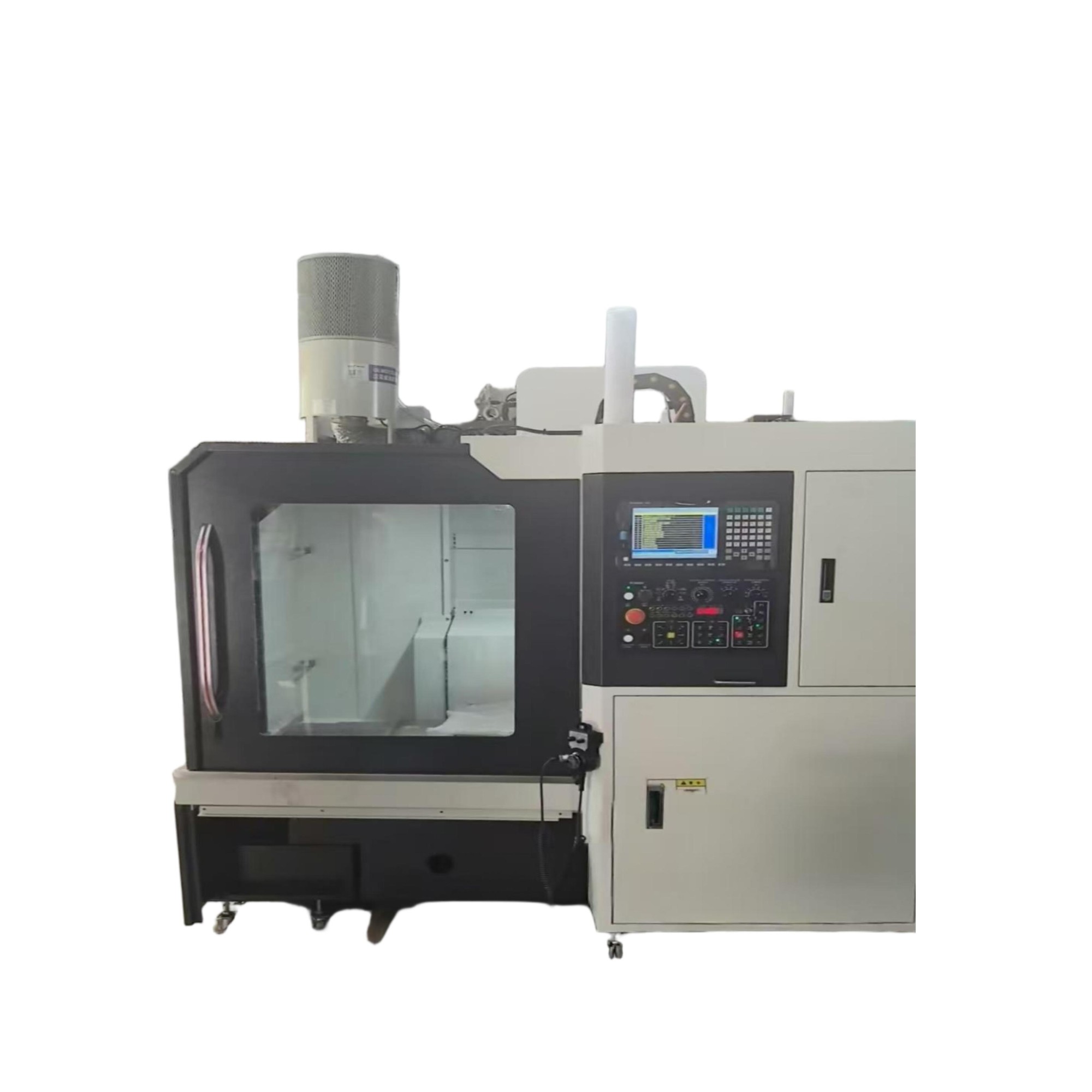

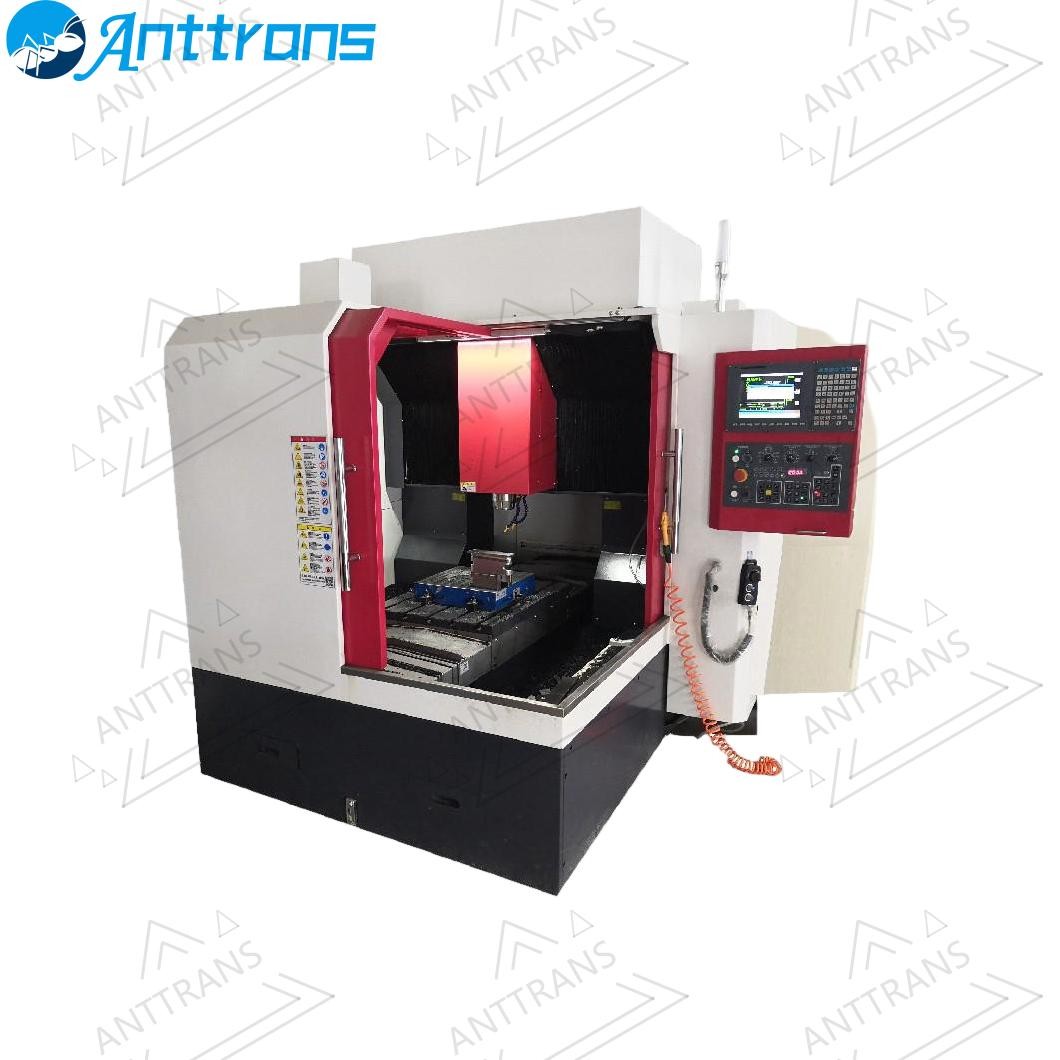

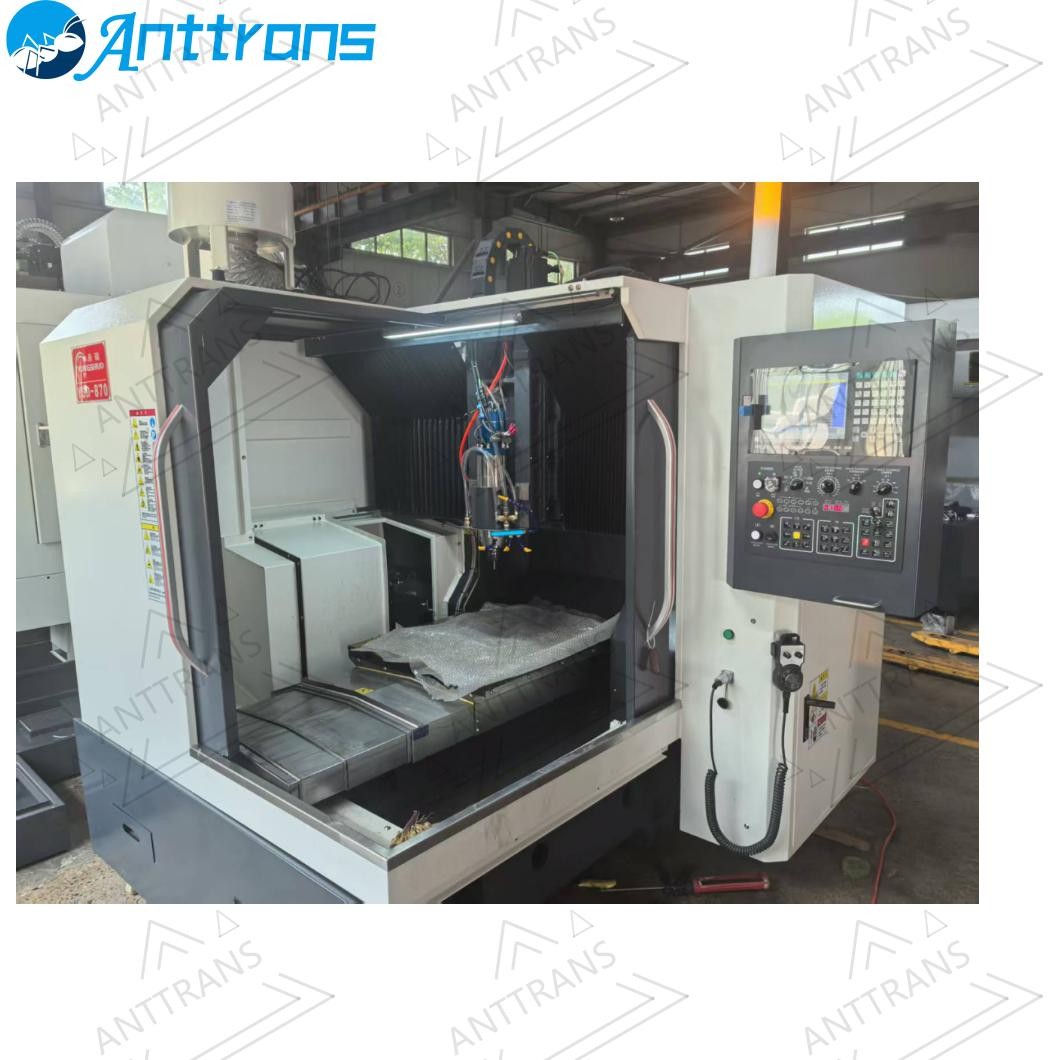

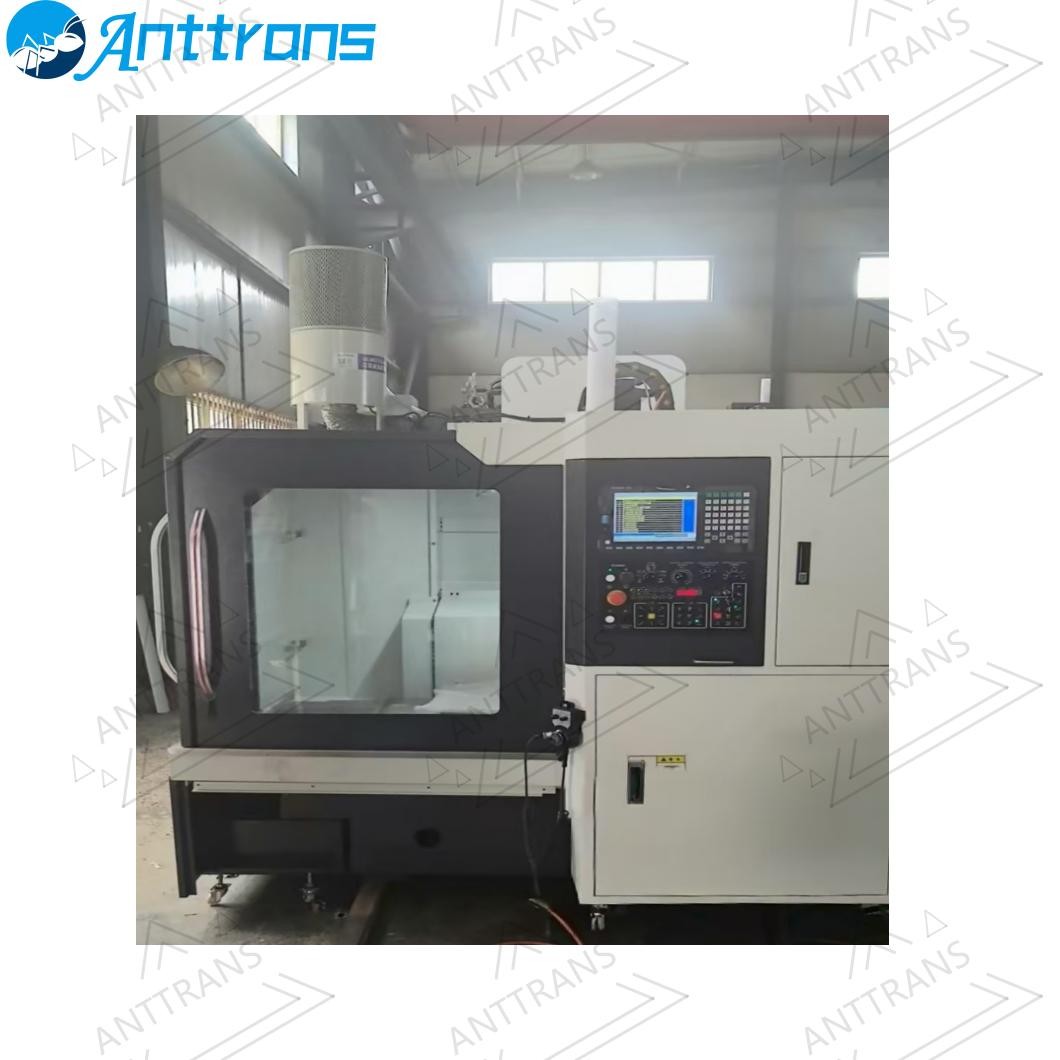

CNC Engraving and Milling Machine
The CNC engraving and milling machine is capable of both engraving and milling operations, serving as a highly efficient and precise numerical control (NC) machine tool. It finds extensive applications across various industries, including the precise machining of mold cores and cavities in one go for precision molds, the batch processing of aluminum products and copper electrodes for molds, shoe mold manufacturing, jig and fixture processing, as well as in the watch and eyewear industries.
Advantages:
Capable of engraving intricate patterns and milling high-hardness materials (such as steel molds with a hardness above HRC60), overcoming the limitations of traditional engr aving machines in processing hard materials.
More flexible and cost-effective compared to machining centers.
Application Areas:
Precision Molds: Such as automotive steel molds and the rough and finish machining of consumer electronic components (e.g., silicon wafers, ceramic substrates).
Special Materials: Non-contact cutting and drilling of high-hardness or brittle materials (e.g., diamonds, epoxy resins).
Batch Production: Suitable for the large-scale and efficient processing of small-sized components.
Equipment Parameters:
|
Technical Parameters |
AT860 |
AT7090 |
AT1280 |
AT13 16 |
AT1620 |
|
Worktable Length (mm) |
800 |
900 |
1200 |
1600 |
2000 |
|
Worktable Width (mm) |
600 |
700 |
800 |
1300 |
1600 |
|
X-axis Machining Distance (mm) |
800 |
900 |
1200 |
1600 |
2000 |
|
Y-axis Machining Distance (mm) |
700 |
700 |
800 |
1500 |
1700 |
|
Z-axis Machining Distance (mm) |
330 |
400 |
500 |
650 |
650 |
|
Gantry Width (mm) |
760 |
800 |
900 |
1500 |
1850 |
|
Worktable Load Capacity (Kg) |
400 |
300 |
450 |
1200 |
1600 |
|
T-slot Width (mm) |
4×16 |
5×16 |
5×16 |
9×18 |
7×18 |
|
T-slot Pitch (mm) |
165 |
150 |
165 |
160 |
210 |
|
Spindle Speed Range (rpm) |
Electric spindle 18000-24000 |
Electric spindle 18000-24000 |
Electric spindle 18000-24000 |
Mechanical spindle 12000 (direct drive) |
Mechanical spindle 12000 (direct drive) |
|
Tool Holder Type |
ER32/BT30 |
BT40 |
|||
|
Spindle Power (kW) |
4/5.5 |
4/5.5 |
5.5/7.5 |
7.5 |
7.5 |
|
Weight (kg) |
4500 |
4700 |
6500 |
10800 |
12800 |
