Fiber Optic Equipment, Cable Sheath Production Line
- Product Item : AT61034
- Category： Optical Fiber & Cable Production Equipment
- Product description：
QYSJ90X25 Optical Cable Sheathing Production Line
Equipment Application Scope:
Inner sheaths for optical cables: including polyethylene inner sheaths and aluminum-plastic composite tape with polyethylene inner sheaths.
Outer sheaths for optical cables: including polyethylene outer sheaths, aluminum-plastic composite tape with polyethylene composite outer sheaths, and steel-plastic composite tape with polyethylene composite outer sheaths.
Extrusion materials applicable: LDPE, LLDPE, HDPE, etc.
Main Technical Parameters of the Equipment:
|
Cable Core Outer Diameter |
Φ2.5 - Φ25mm |
|
Extruded Sheath Outer Diameter |
Φ4.5 - Φ30mm ±0.2 |
|
Production Speed |
≥80m/min (for diameters below 12mm) |
|
Equipment Center Height |
1000mm |
|
Main Extruder Output |
260KG/H (PE) |
|
Main Motor of Extruder |
90kw DC motor, 4-pole |
|
Power Supply |
380V ±10%, 50Hz, three-phase four-wire AC power |
|
Operating Environment |
-5℃ - +40℃, relative humidity 40% - 90% |
Equipment Composition:
|

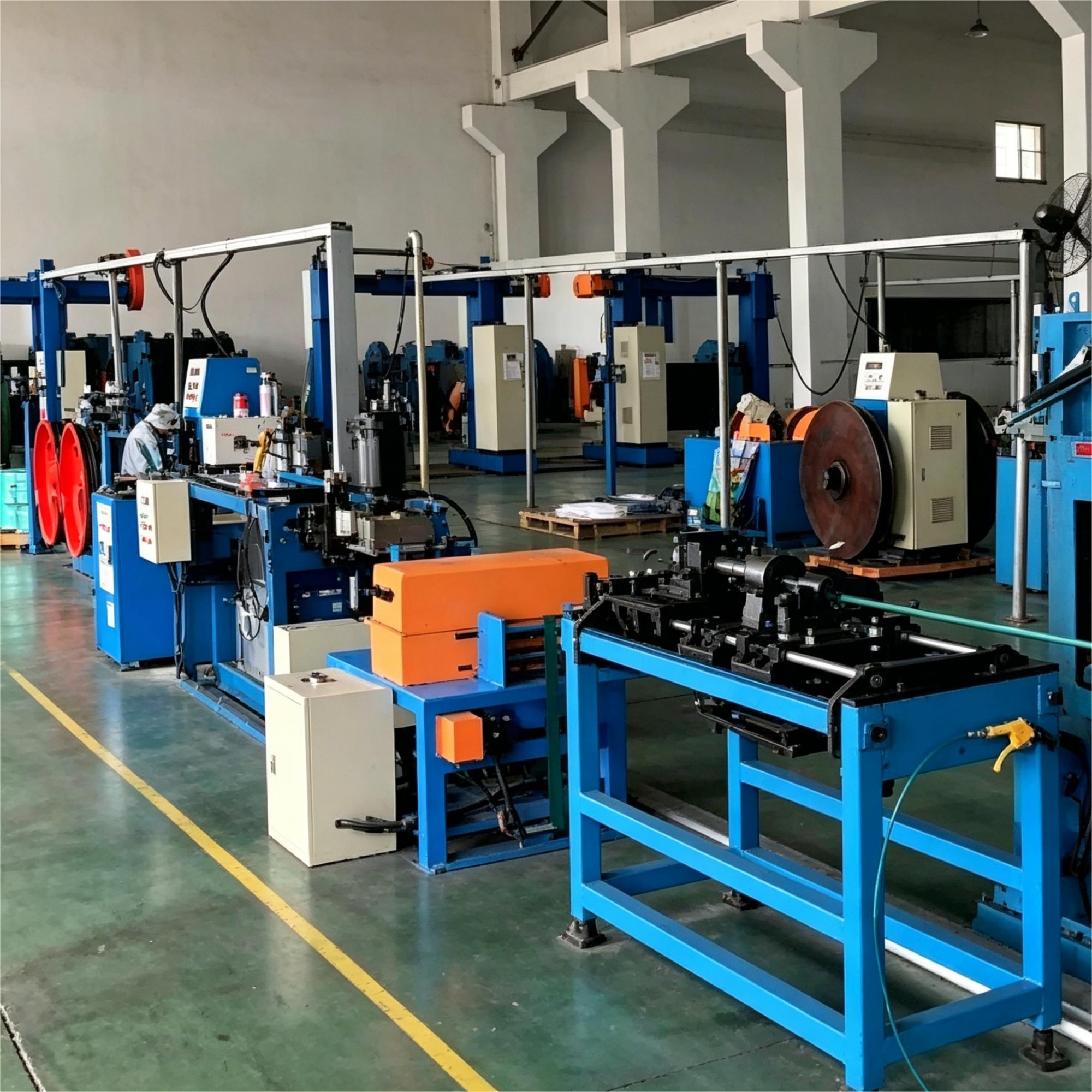

PN1600 Floor-mounted Gantry Active Pay-off Stand |
1 set |
|
Pay-off Tension Controller |
1 set |
|
Rotary Dual-disc Steel/Aluminum Tape Pay-off Stand |
1 set |
|
Steel/Aluminum Tape Spot Welder |
1 unit |
|
Steel/Aluminum Tape Storage Device |
1 set |
|
Steel/Aluminum Tape Corrugating Device |
1 set |
|
Cable Core Grease Filling Device |
1 set |
|
Steel/Aluminum Tape Longitudinal Wrapping Forming Device |
1 set |
|

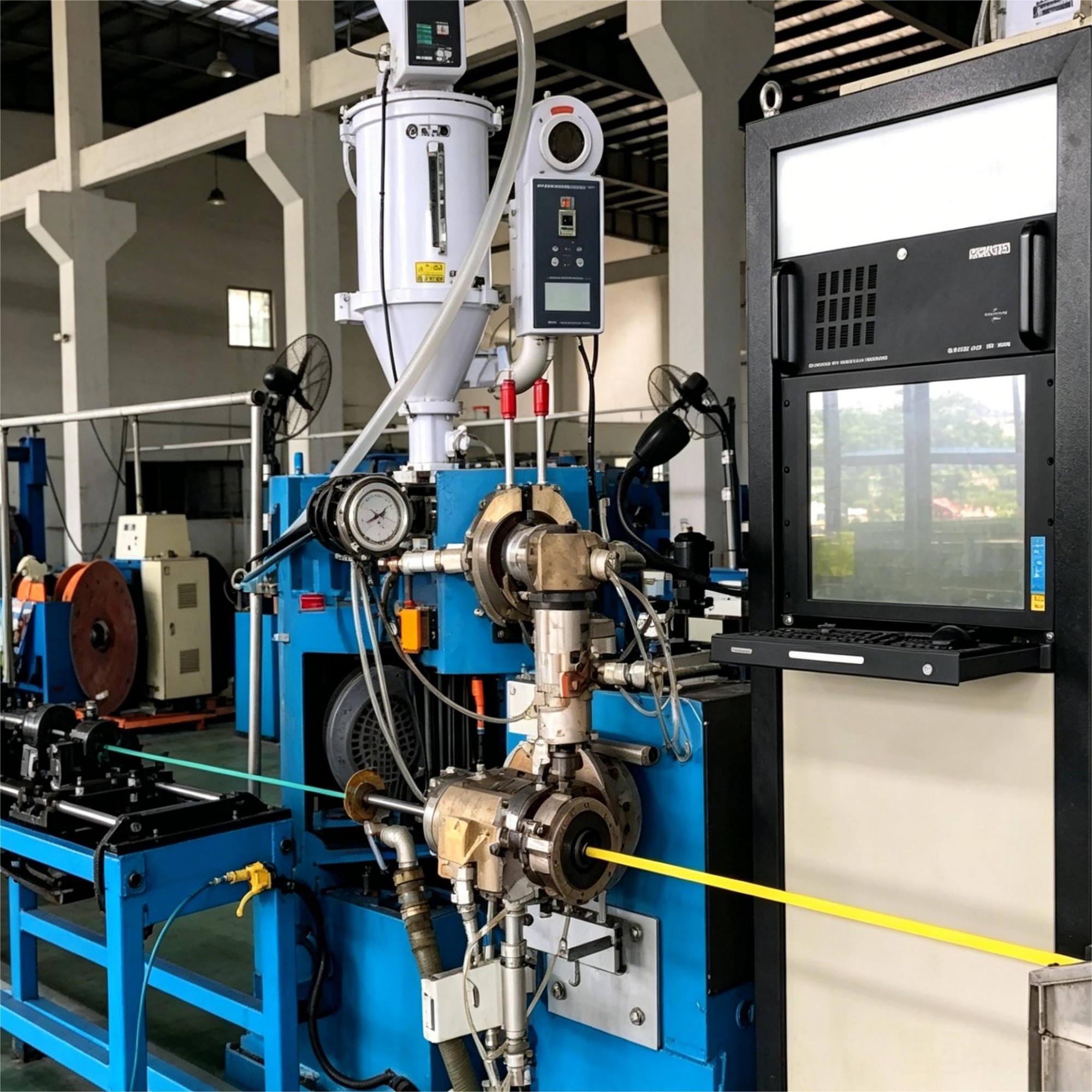

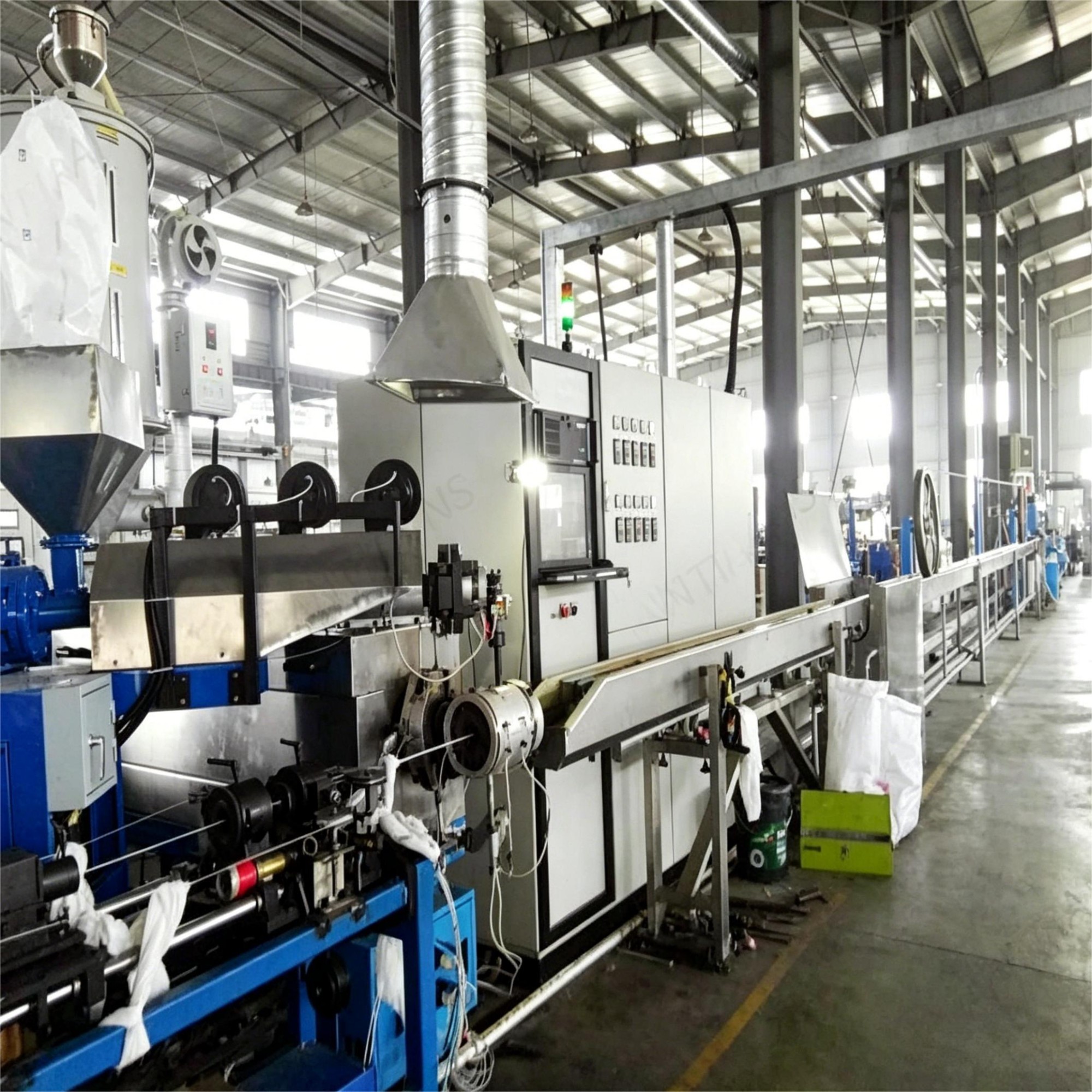

Φ90/25 Extruder with Material Feeding and Drying |
1 set |
|
Crosshead |
1 set |
|

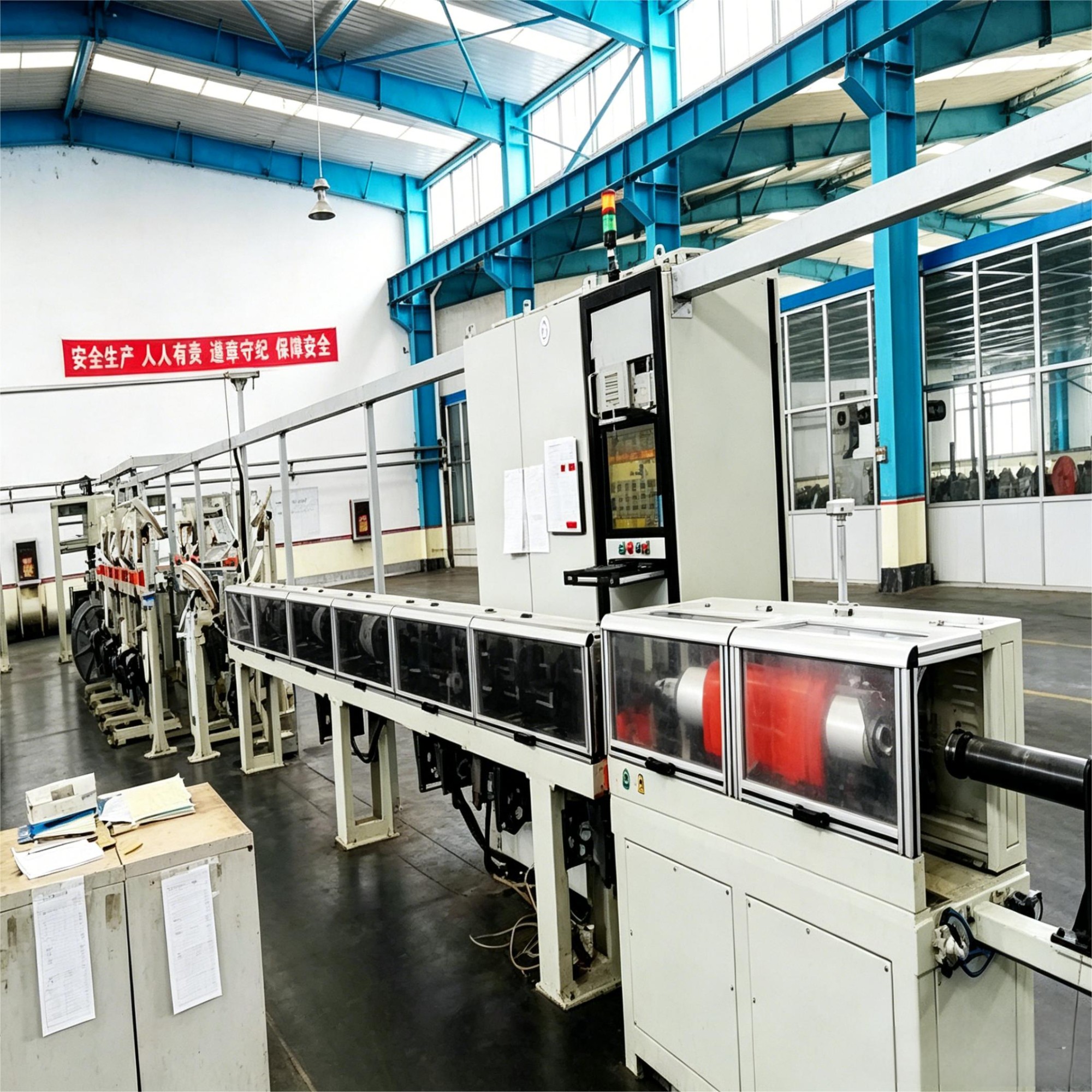

4m Mobile Water Trough and Water Tank |
1 set |
|
12m Dual Cooling Water Trough |
1 set |
|
Air Dryer |
1 set |
|
Unidirectional Diameter Measuring Instrument |
1 set |
|
Color Tape Printing and Meter Counting |
1 unit |
|

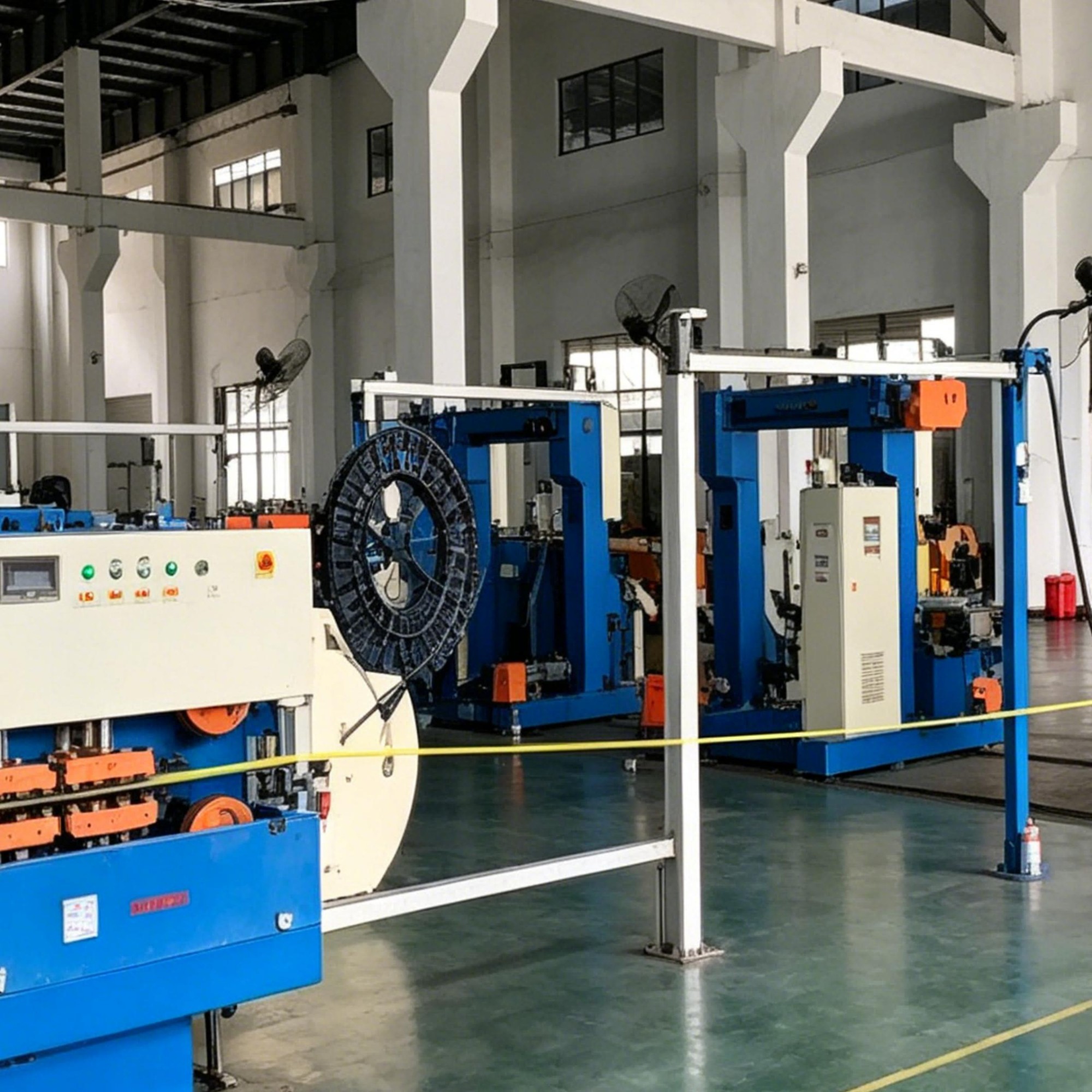

800KG Caterpillar Tractor |
1 set |
|

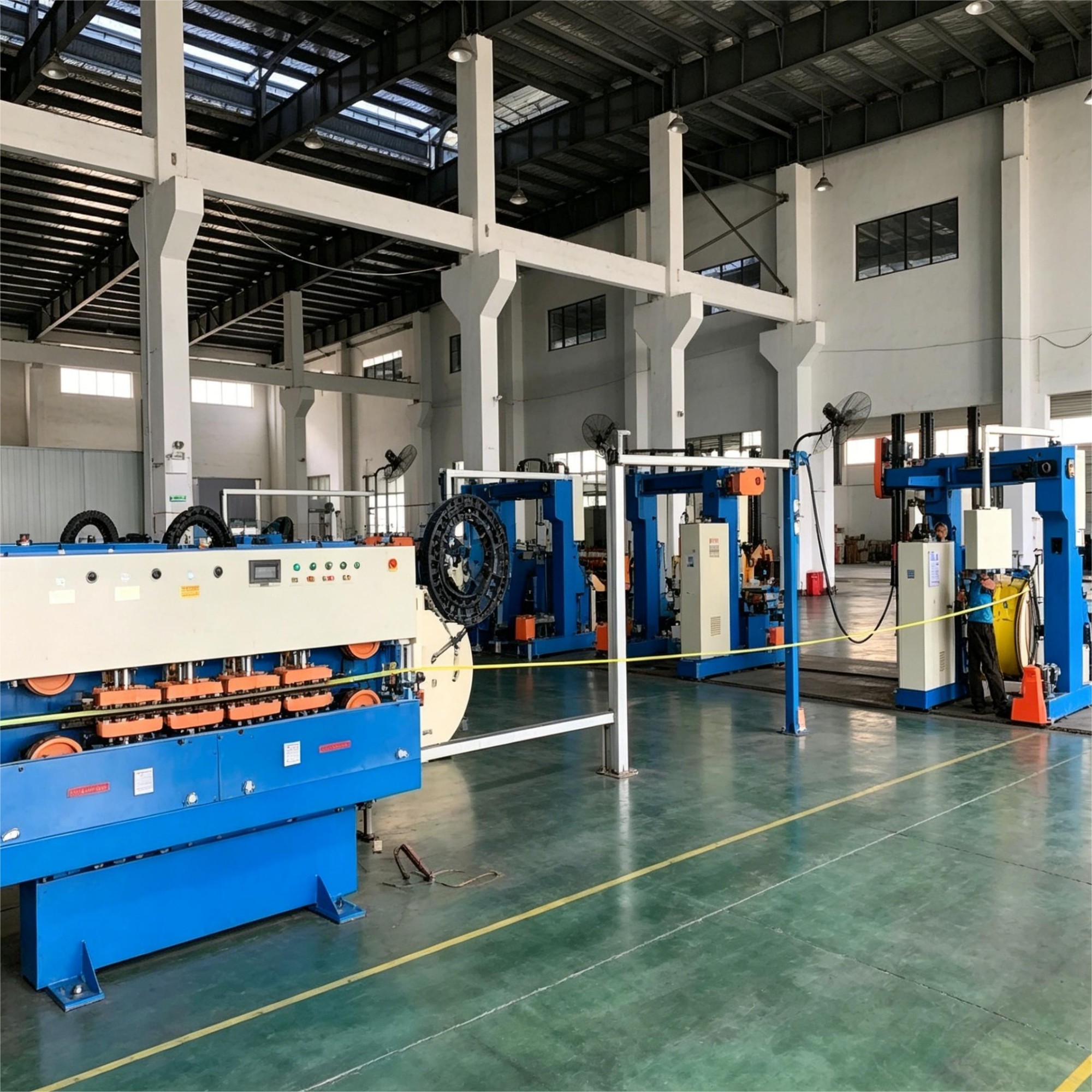

FN1600 Take-up and Coiling Stand |
1 set |
|
Electric Control System |
1 set |
