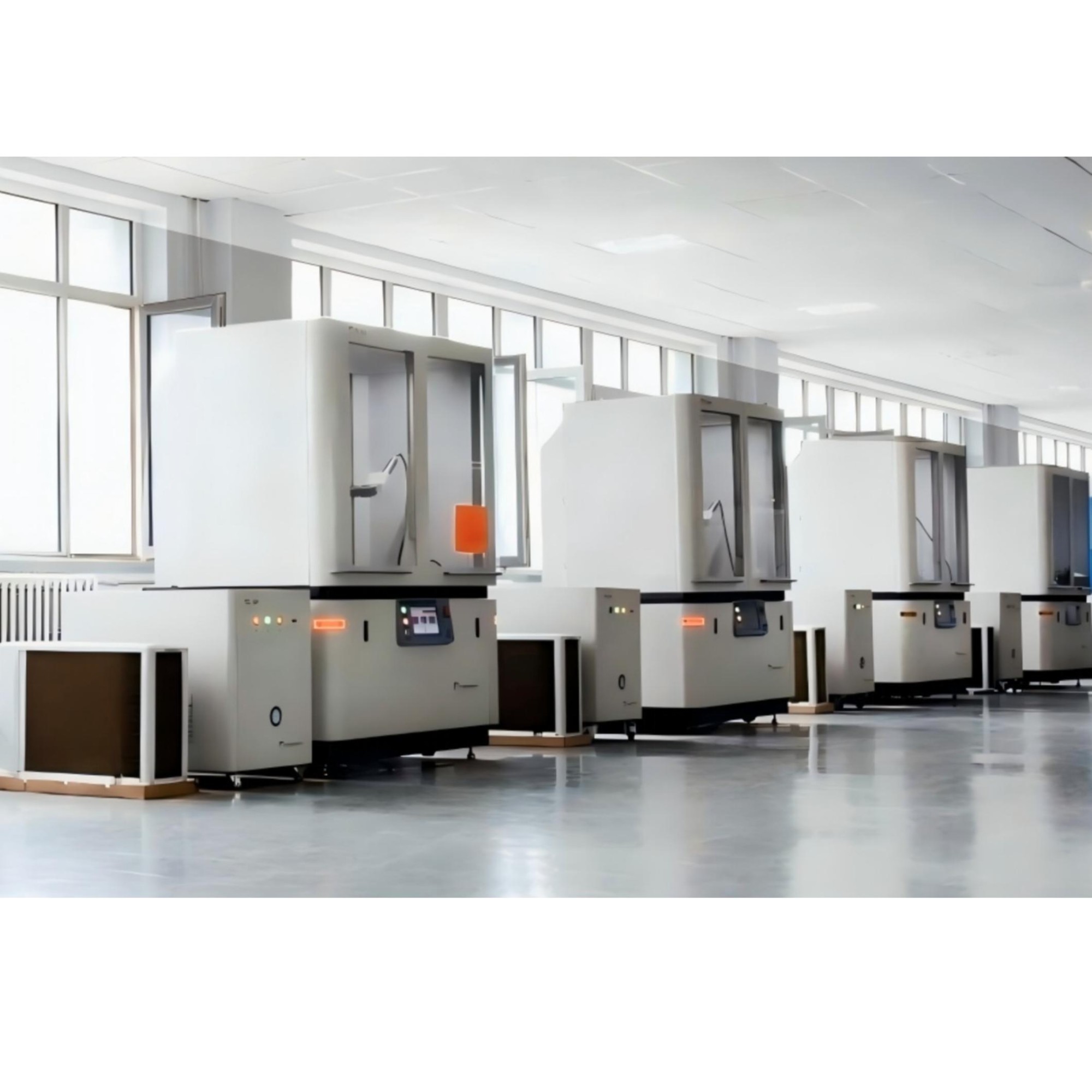

Diffraction Instrument/X-ray Generator/Detector X-ray Generator
- Product Item : AT61035
- Category： Optical Detection & Analysis Equipment
- Product description：
Instrument Functions:

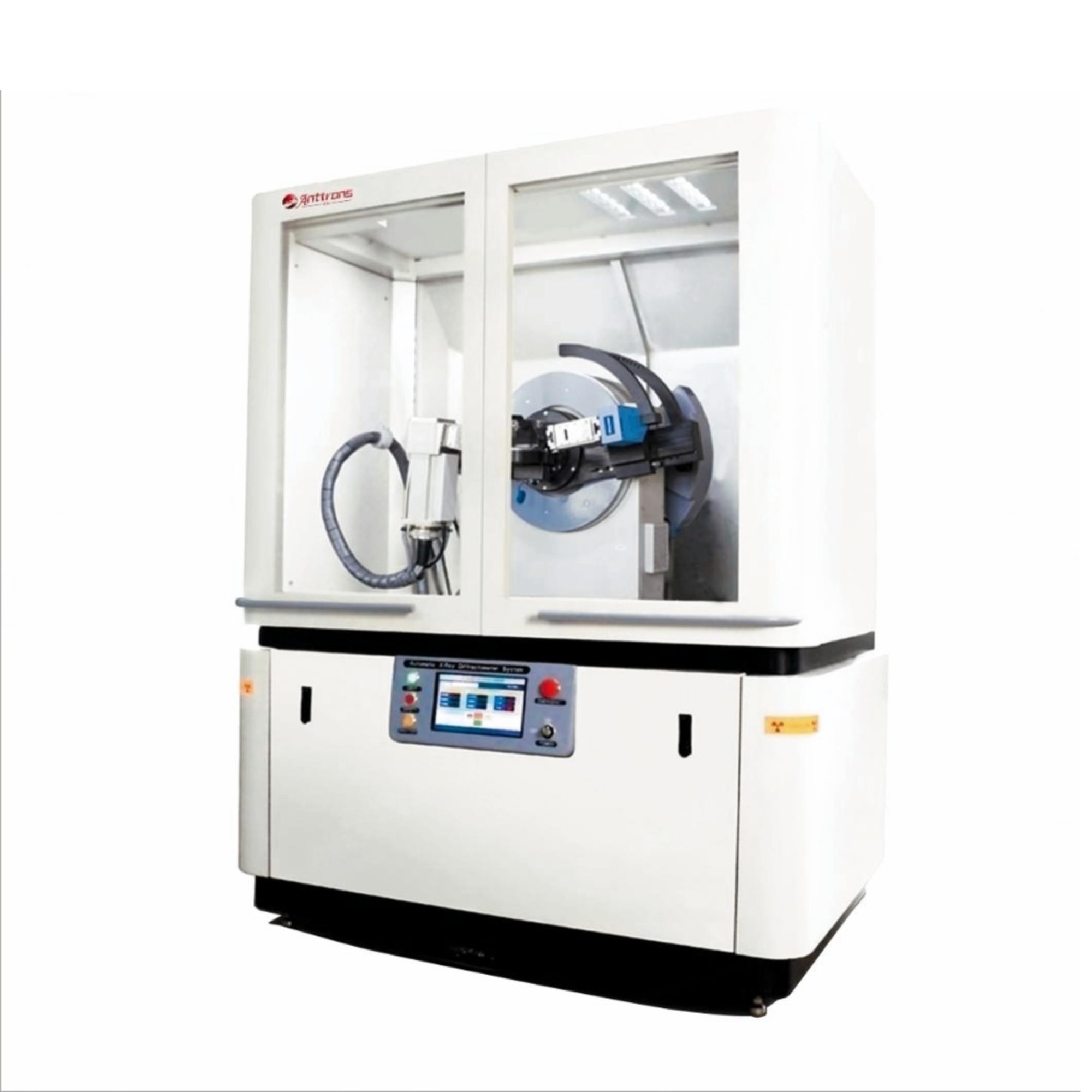

The X-ray diffractometer is primarily applied for qualitative and quantitative phase analysis of powder, bulk, or thin-film samples, as well as for crystal structure analysis, material structure analysis, crystal orientation analysis, determination of macroscopic or microscopic stresses, grain size measurement, and crystallinity determination.
Instrument Features:
Utilizes programmable logic controller (PLC) control technology for the entire machine.
User-friendly, one-button acquisition system.
Modular design with plug-and-play accessories, eliminating the need for calibration.
Real-time online monitoring via a touch screen to display instrument status.
High-power X-ray generator with stable and reliable performance.
Electronic lead door interlock device for dual protection, ensuring user safety.
Instrument Precision:
Scanning range: -110° to 161°.
Scanning modes: Transmission, step, continuous, OMG.
Minimum step angle: 0.0001°.
2θ angle repeatability: 0.0001°.
Full-spectrum 2θ angle linearity precision: ≤±0.01°.
Device Parameters:
|
Parameter |
Details |
|
|
Target Material Types |
Cu, Fe, Co, Cr, Mo, Ti, W, etc.; corrugated ceramic tube or metal ceramic tube. |
|
|
Focal Spot Size |
1×10mm², 0.4×14mm², or 0.2×12mm². |
|
|
Maximum Output Power |
2.4kW. |
|
|
X-ray Tube Voltage |
10~6 0kV, 1kV/step. |
|
|
X-ray Tube Current |
2~60mA, 1mA/step. |
|
|
Maximum Output Power (Generator) |
3kW high-frequency high-voltage solid-state generator. |
|
|
Output Stability |
≤0.005% (with 10% power supply voltage fluctuation). |
|
|

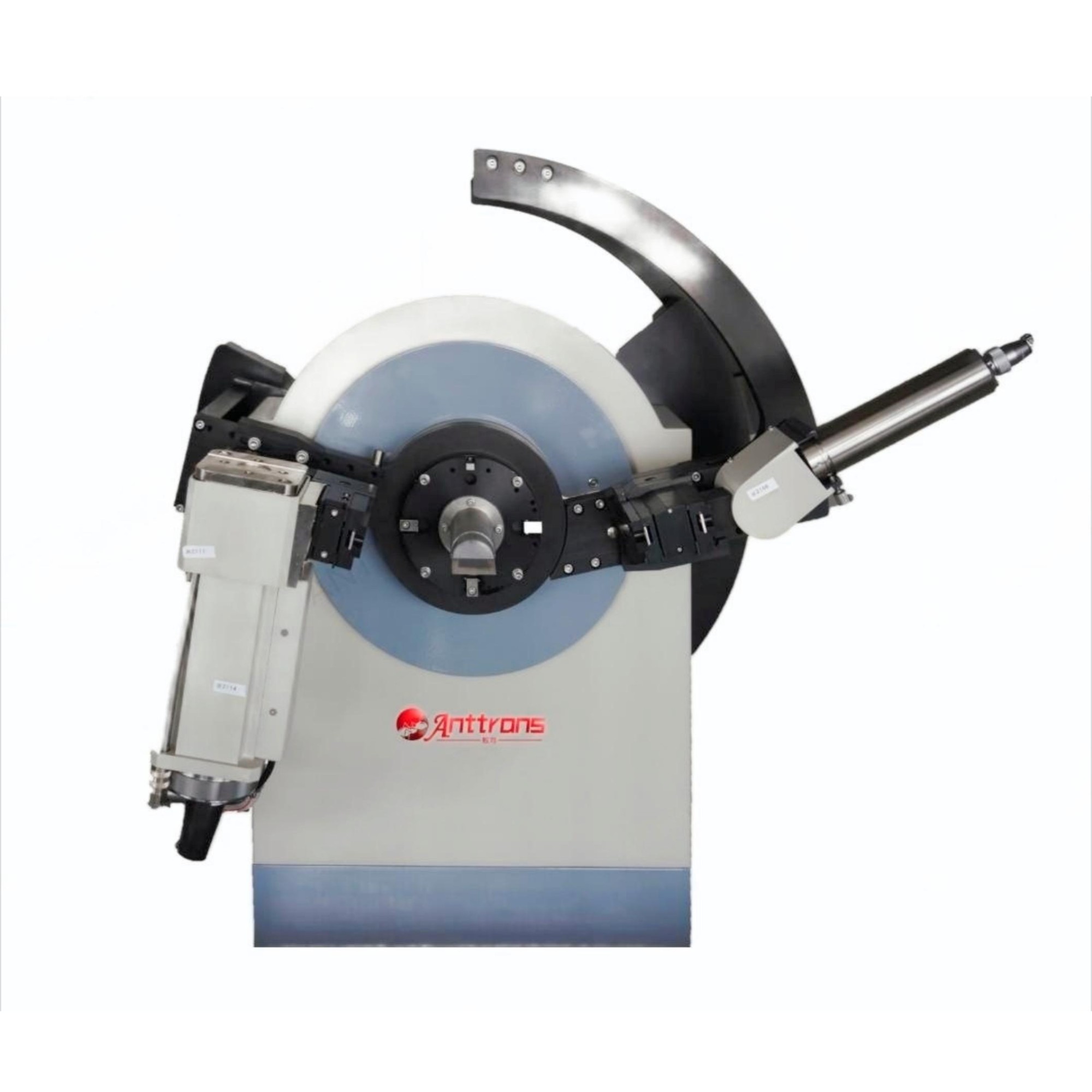

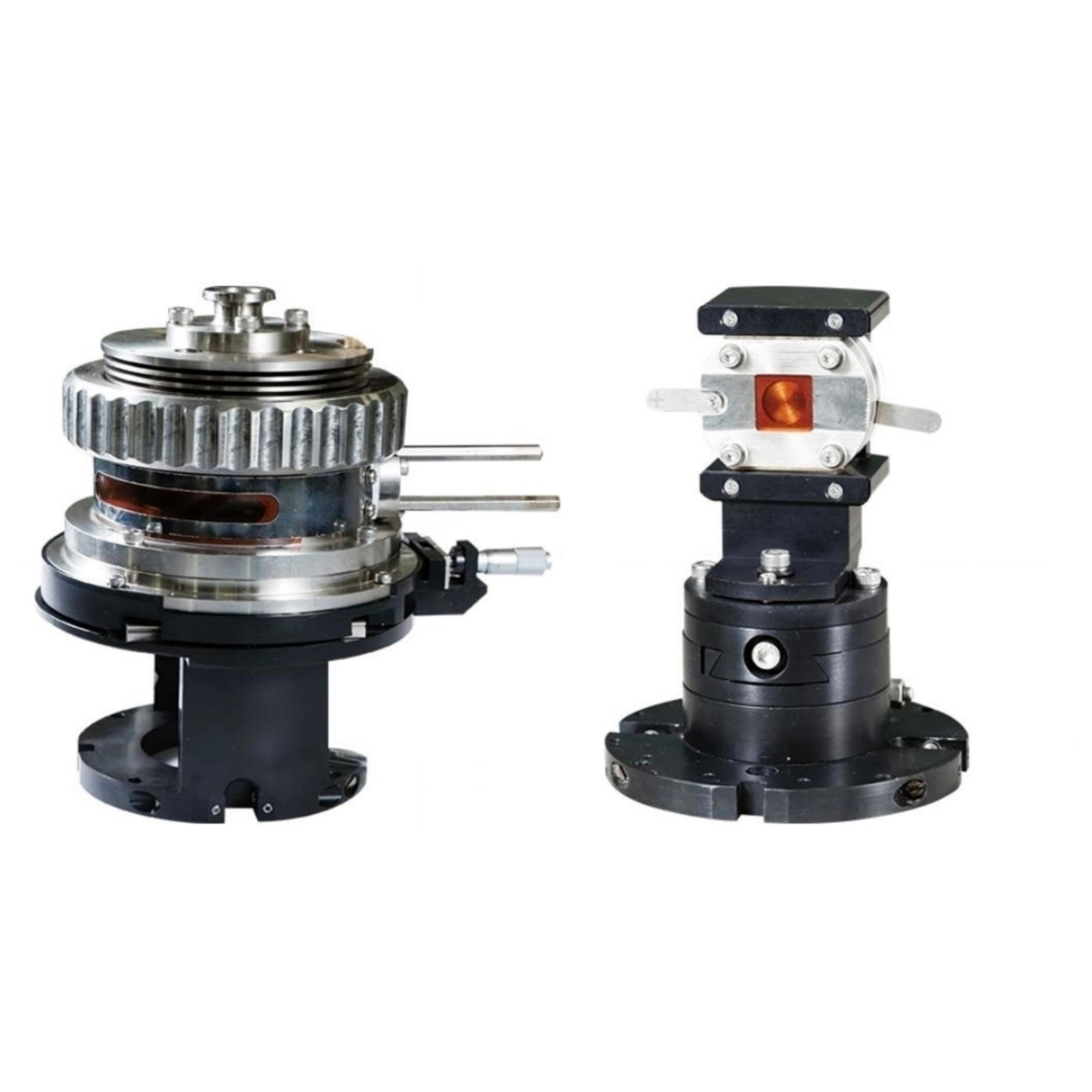

Goniometer Structure |
Vertical goniometer θs-θd structure (sample remains horizontally fixed). |
|
|
Scanning Radius |
Standard 225mm (continuously adjustable from 150mm to 325mm). |
|
|
Scanning Range |
-110° to 161°. |
|
|
Scanning Speed |
0.0012° to 120°/min. |
|
|
Drive Mode |
θs-θd linkage, θs or θd single motion. |
|
|
Scanning Modes |
Step, continuous, OMG, transmission. |
|
|
Minimum Step Angle |
0.0001°. |
|
|
2θ Angle Repeatability |
0.0001°. |
|
|
Angular Positioning Speed |
1500°/min (2θ). |
|
|
Full-spectrum Diffraction Angle Linearity |
≤±0.01° (international standard). |
|
|

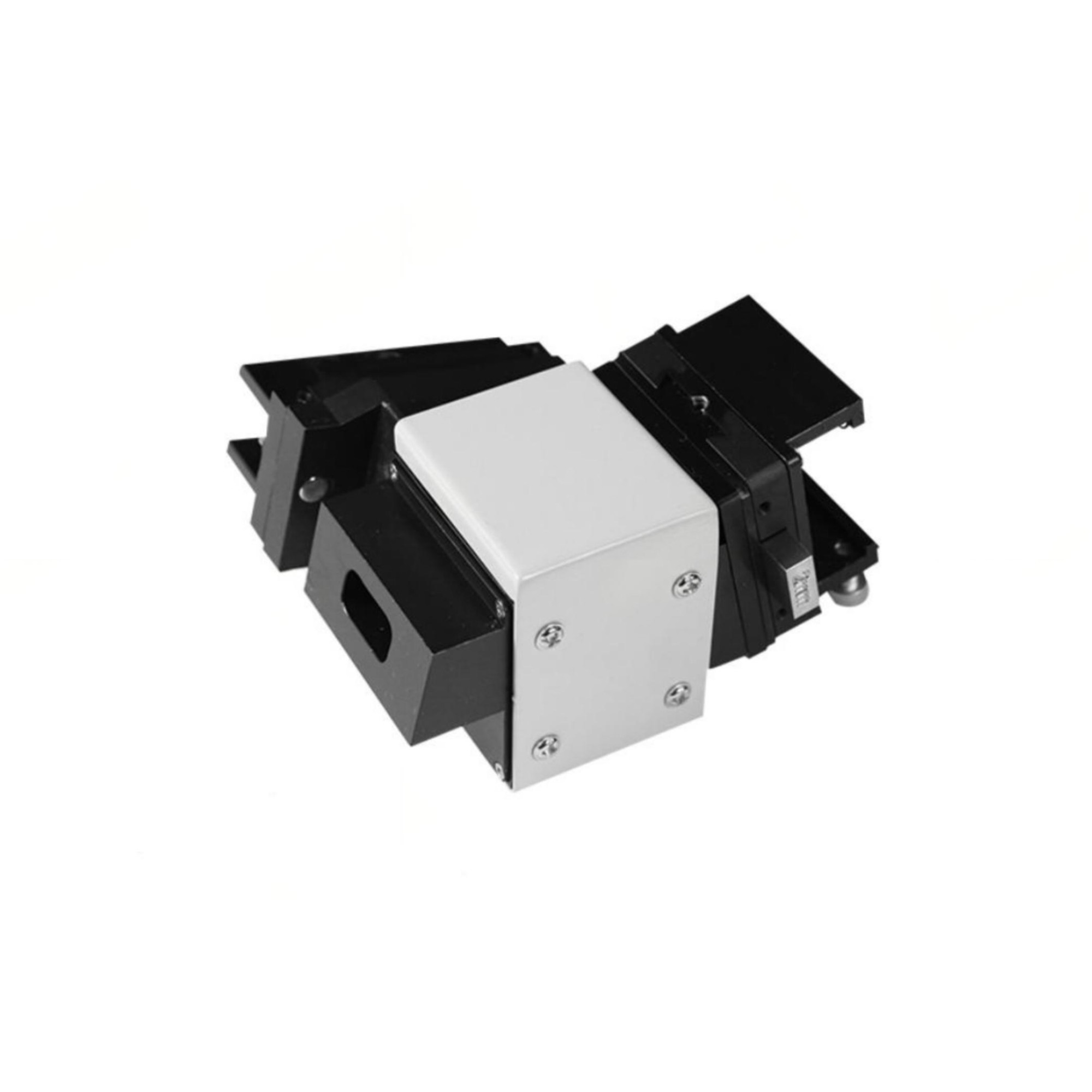

Detector Type |
Proportional (PC) |
Scintillation (SC) |
|
Energy Spectrum Resolution |
≤2 0% (PC) |
≤50% (SC) |
|
Maximum Linear Count Rate |
1×10^7 CPS, noise ≤0.2 CPS. |
|
|
Safety Indicators |
Employs an electronic protection system with a lead door interlock device for dual protection, ensuring user safety. |
|
|
X-ray Leakage |
≤0.12µSv/h (at maximum power of the X-ray tube). |
|
|
Comprehensive Stability |
≤0.3% (40kV, 40mA, continuous operation for 8 hours). |
|
|
Dimensions (mm ) |
1300 (length) × 1000 (width) × 1800 (height). |
|
