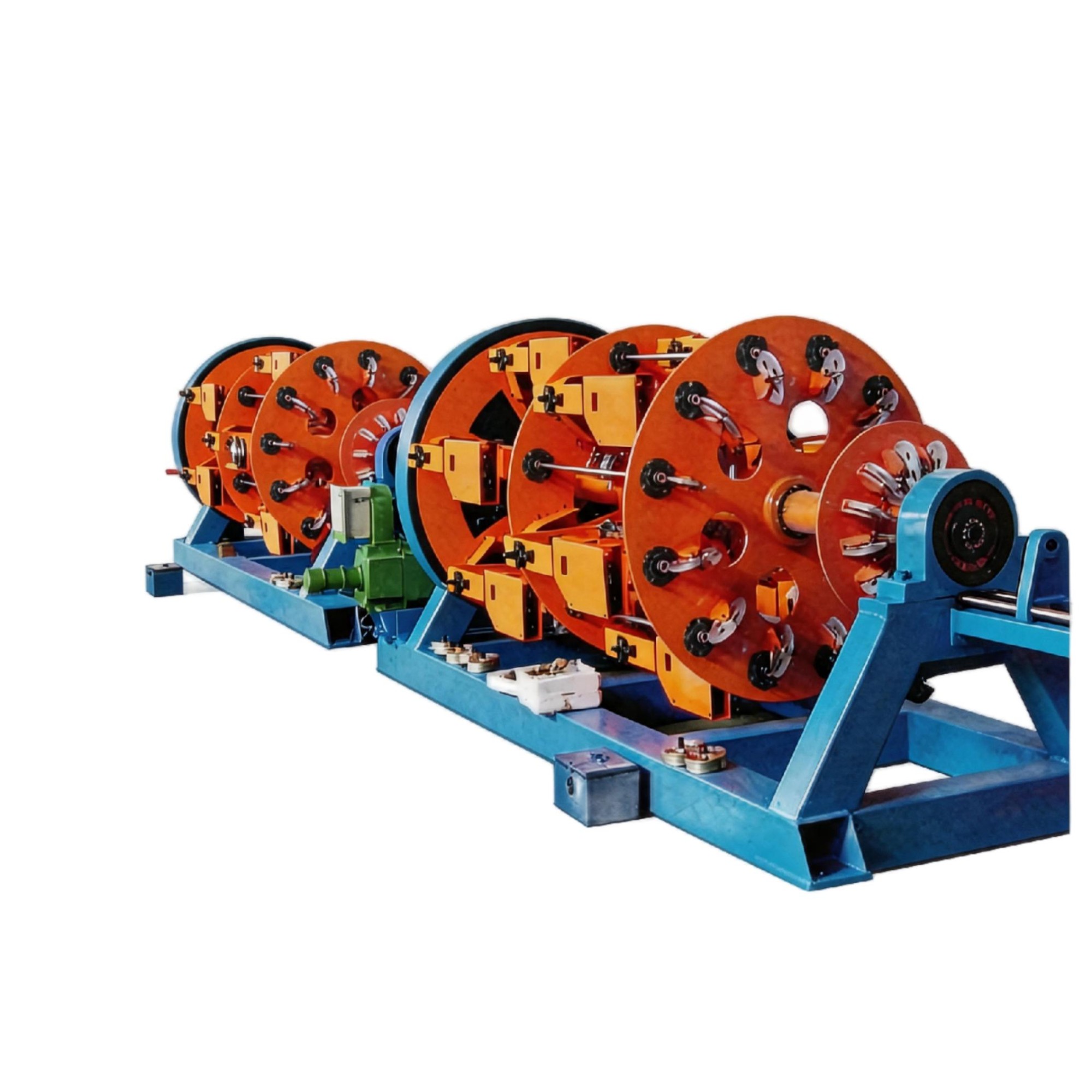

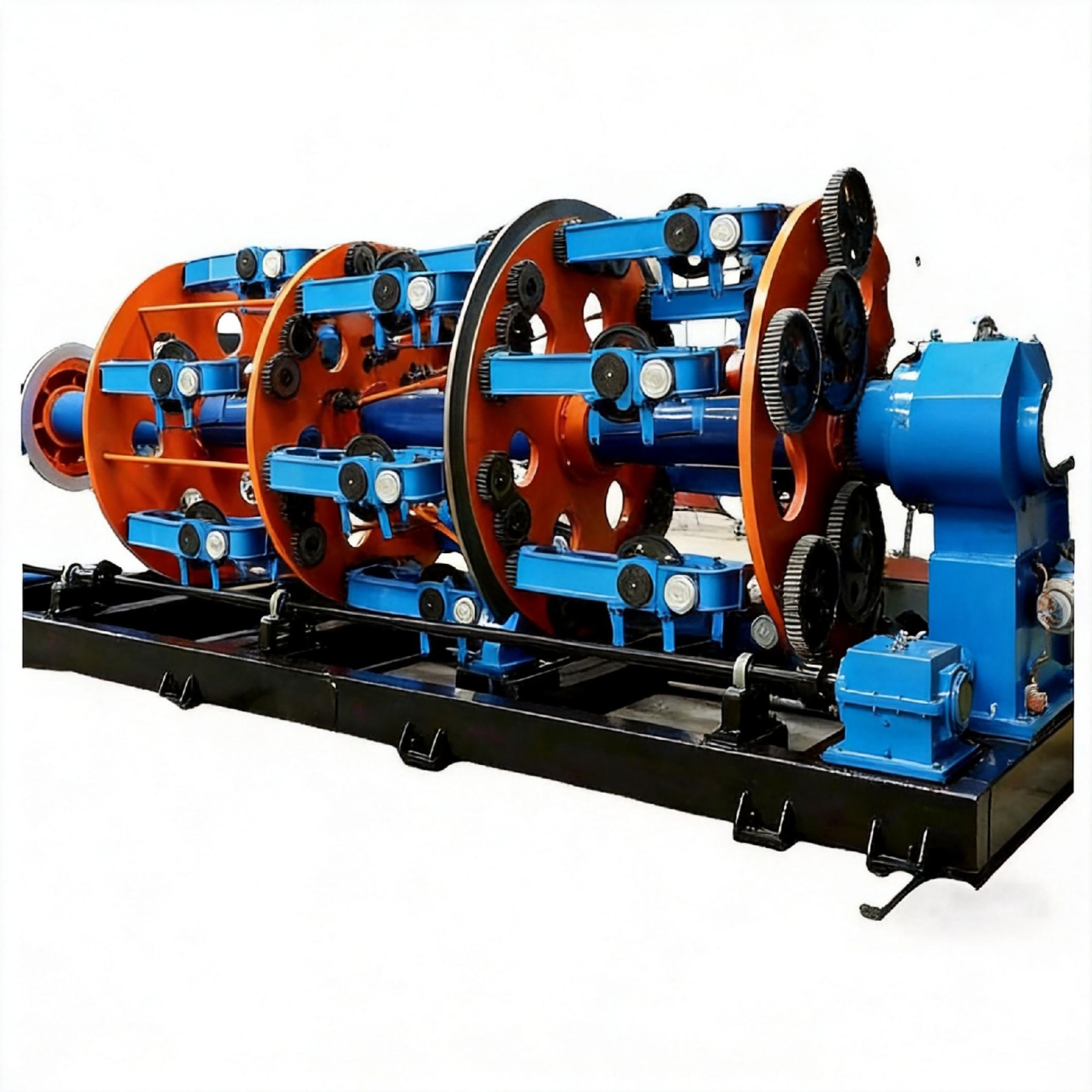

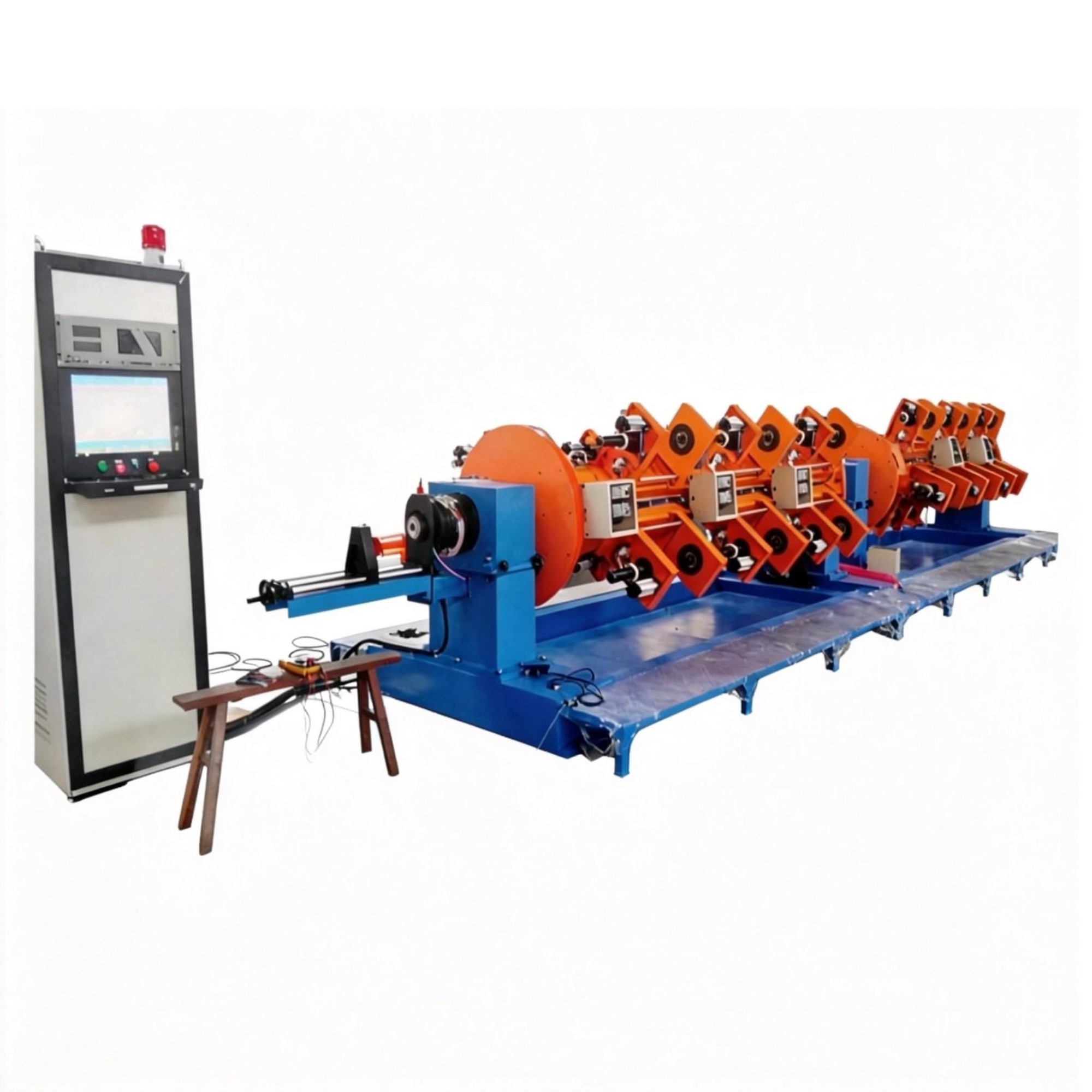

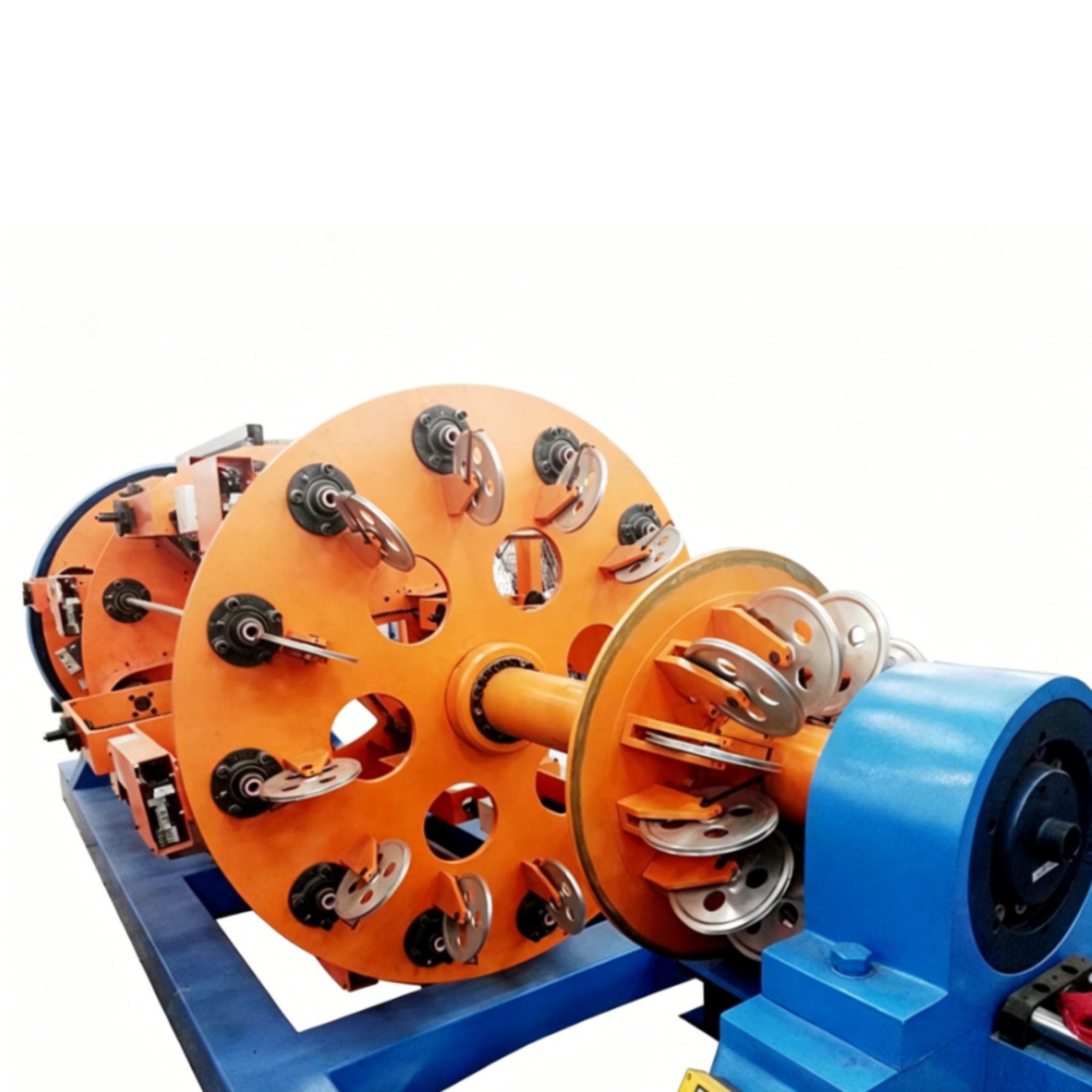

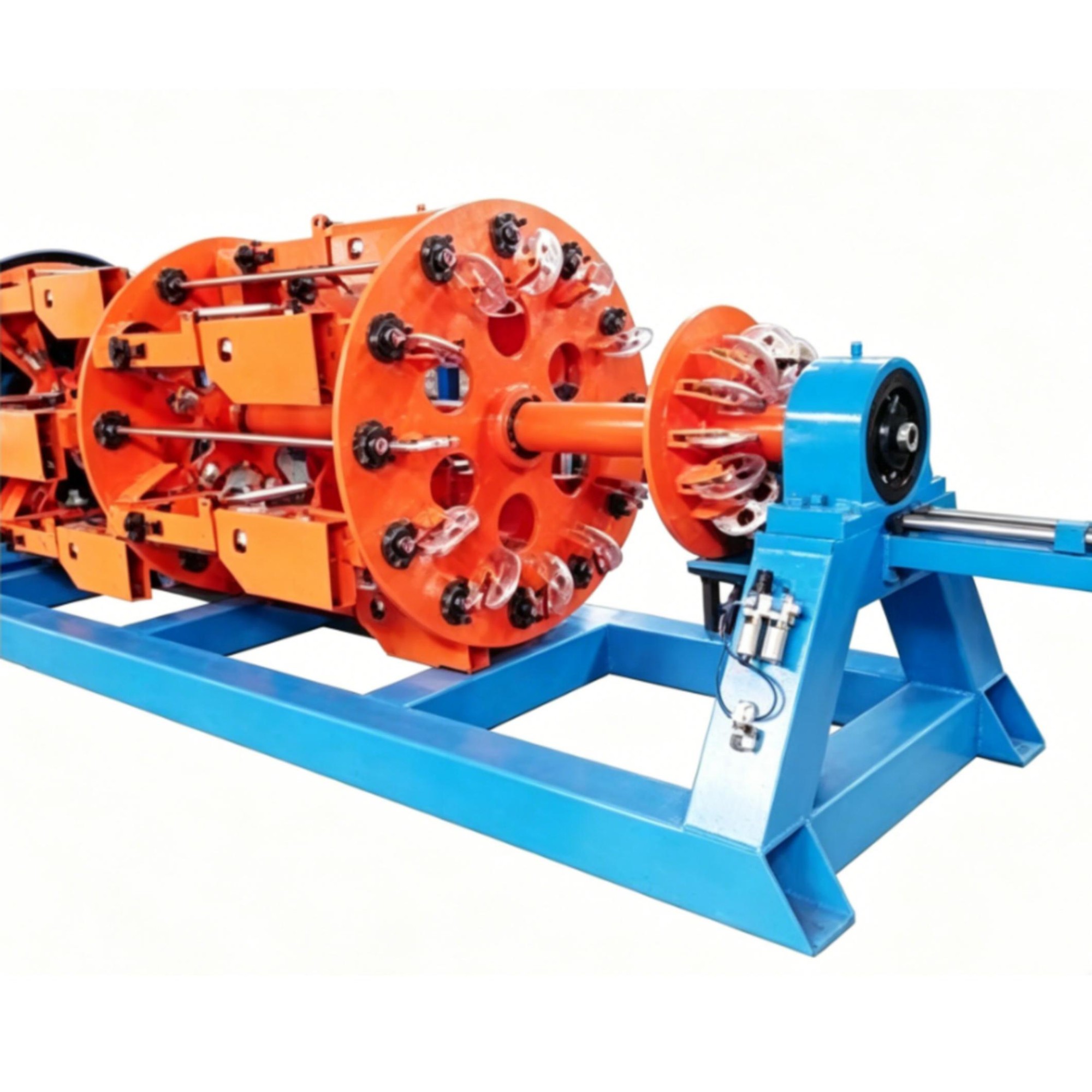

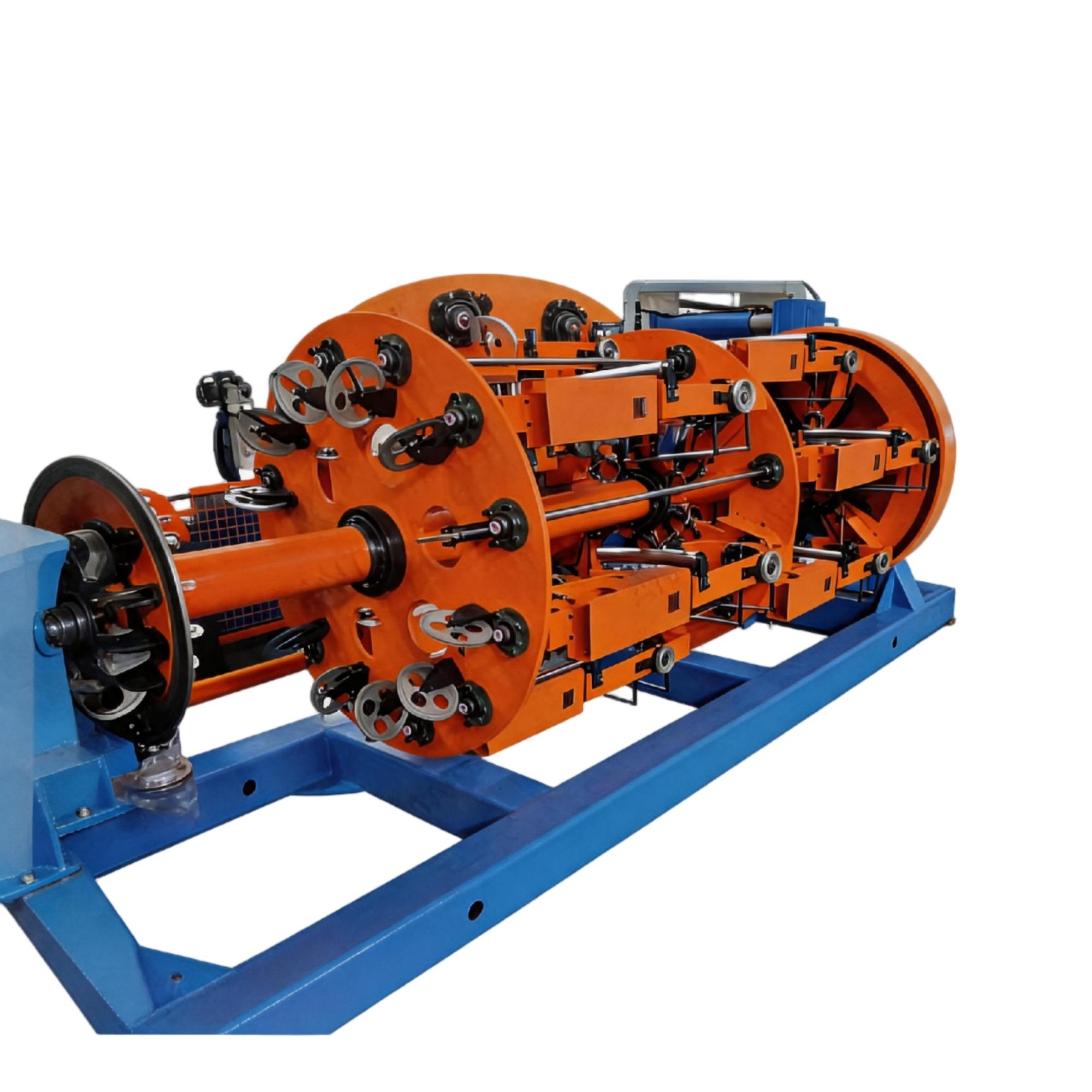

Fiber Optic Active Unwinding Cage Winch
- Product Item : AT61037
- Category： Optical Fiber & Cable Production Equipment
- Product description：
I. Purpose and Features:
This series of equipment is designed for the stranding of extremely fine wires. Each cradle in the machine is equipped with an independent motor for driving active wire pay-off.
II. Equipment Composition:
The entire production line consists of a wire pay-off stand, various sections of the stranding cage body, a wire converging die holder, a meter counter, a pulling device, a take-up and traverse wire rack, a drive system, an electronic control system, and a safety protection system.
III. Main Technical Parameters
|
1. Single Wire Diameter |
Ф0.3～Ф1.2mm |
|
2. Stranded Outer Diameter |
≤Ф5mm |
|
3. Bobbin Size on Stranding Cage |
PN250 (Outer Diameter Ø250×Bobbin Width 190×Inner Hole Ø125)mm |
|
4. Stranding Cage Speed |
51～118r/min |
|
5. Stranding Pitch |
39～655mm |
|
6. Pulling Wheel Diameter |
Φ600mm |
|
7. Pulling Speed |
3.74～33.74m/min |
|
8. Main Motor Power |
15kW (AC Variable Frequency Control) |
