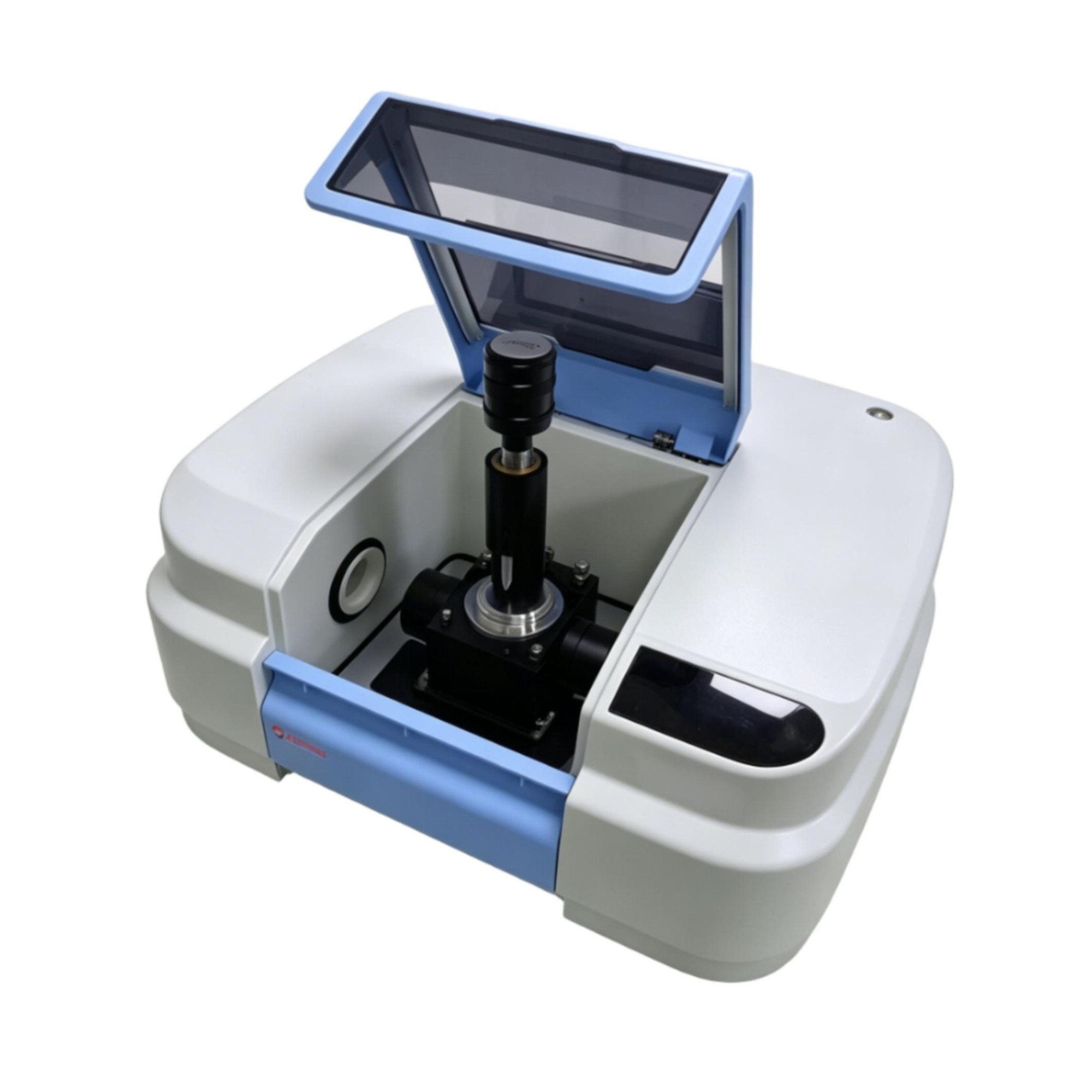

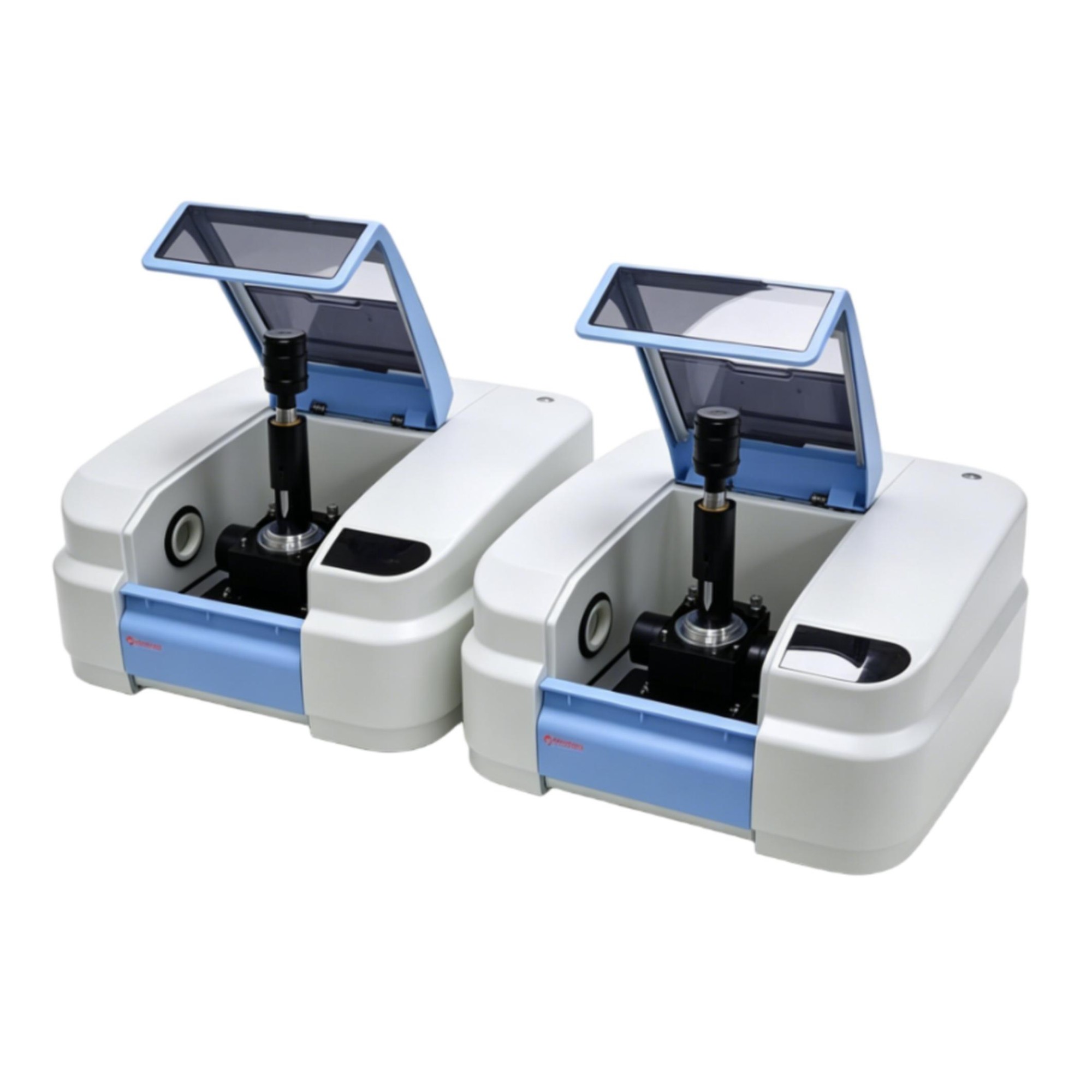

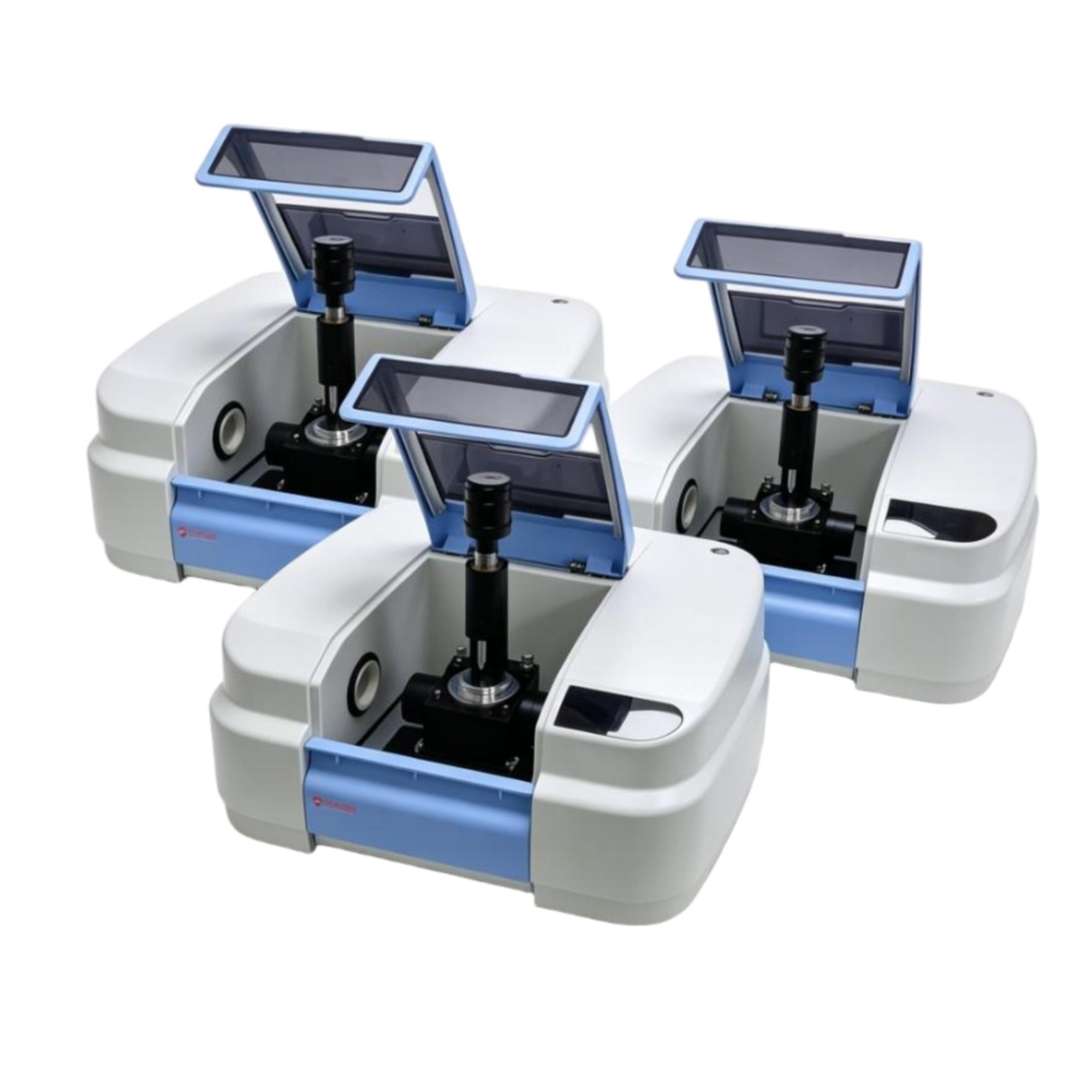

Fourier Transform Infrared Spectrometer
- Product Item : AT61009
- Category： Optical Detection & Analysis Equipment
- Product description：The AT-61009 Fourier Transform Infrared Spectrometer, boasts easy installation, simple operation, and convenient maintenance. It is an indispensable spectral analysis instrument in fields such as mate
Instrument Description
The AT-61009 Fourier Transform Infrared Spectrometer, boasts easy installation, simple operation, and convenient maintenance. It is an indispensable spectral analysis instrument in fields such as materials science, biomedicine, petrochemical engineering, and food safety. Additionally, it is a necessary laboratory analysis instrument for relevant majors in universities, research institutes, and other institutions.
Instrument Features
Utilizes large aperture gold-plated reflectors as the moving and fixed mirrors of the interferometer, ensuring excellent energy efficiency.
Off-axis mirrors employ SPDT cutting technology, providing superior optical efficiency and system consistency.
Major components are installed using pin-alignment, eliminating the need for adjustment, greatly enhancing instrument stability and reducing maintenance costs.
Features intelligent human-machine interaction design, allowing users, regardless of prior experience with Fourier Transform Infrared Spectrometers, to quickly become proficient.
Unique spectral data acquisition preview and full monitoring mode, offering a comprehensive view of the acquisition process.

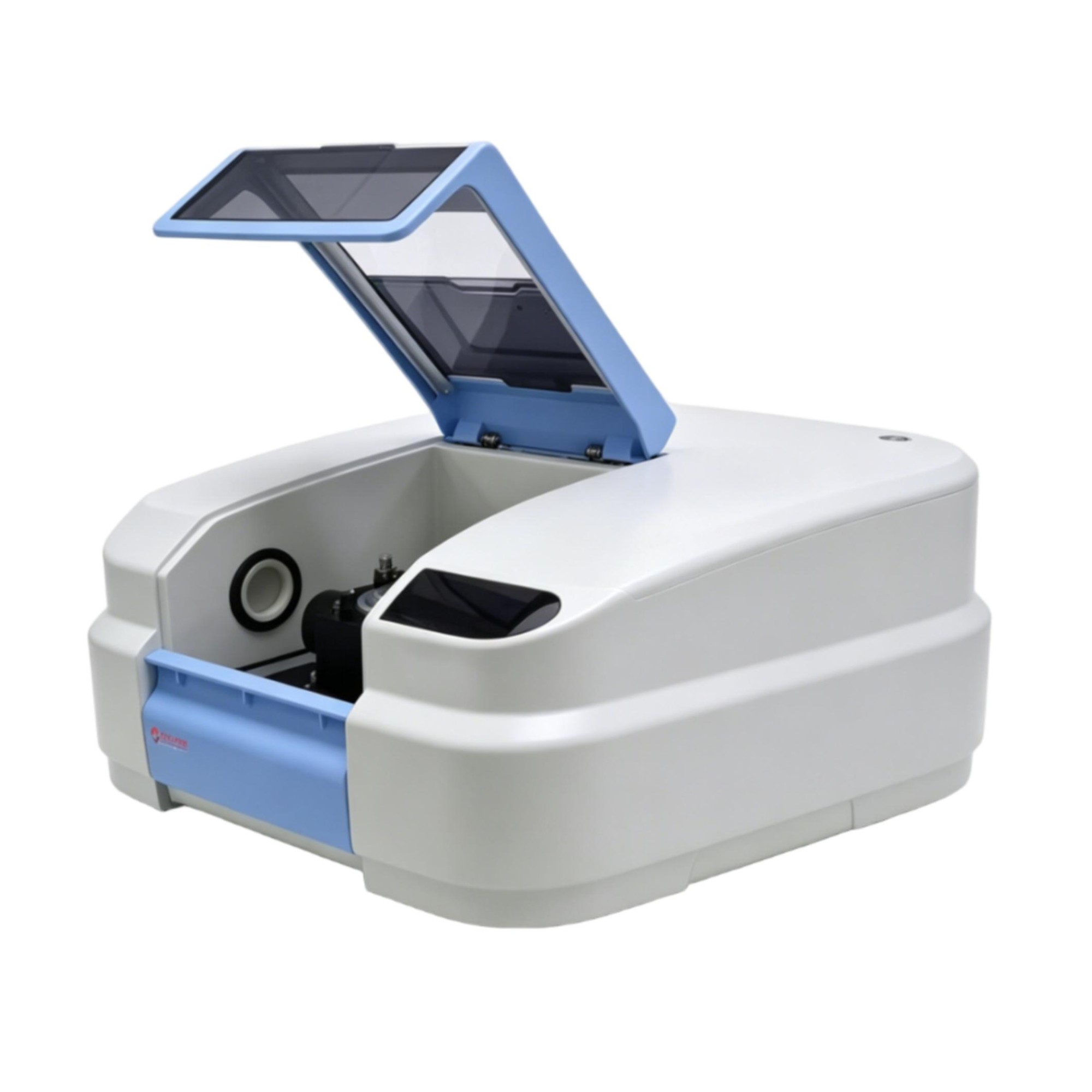

Sliding sample chamber door design significantly reduces interference from water and carbon dioxide in the external air on experimental test results.

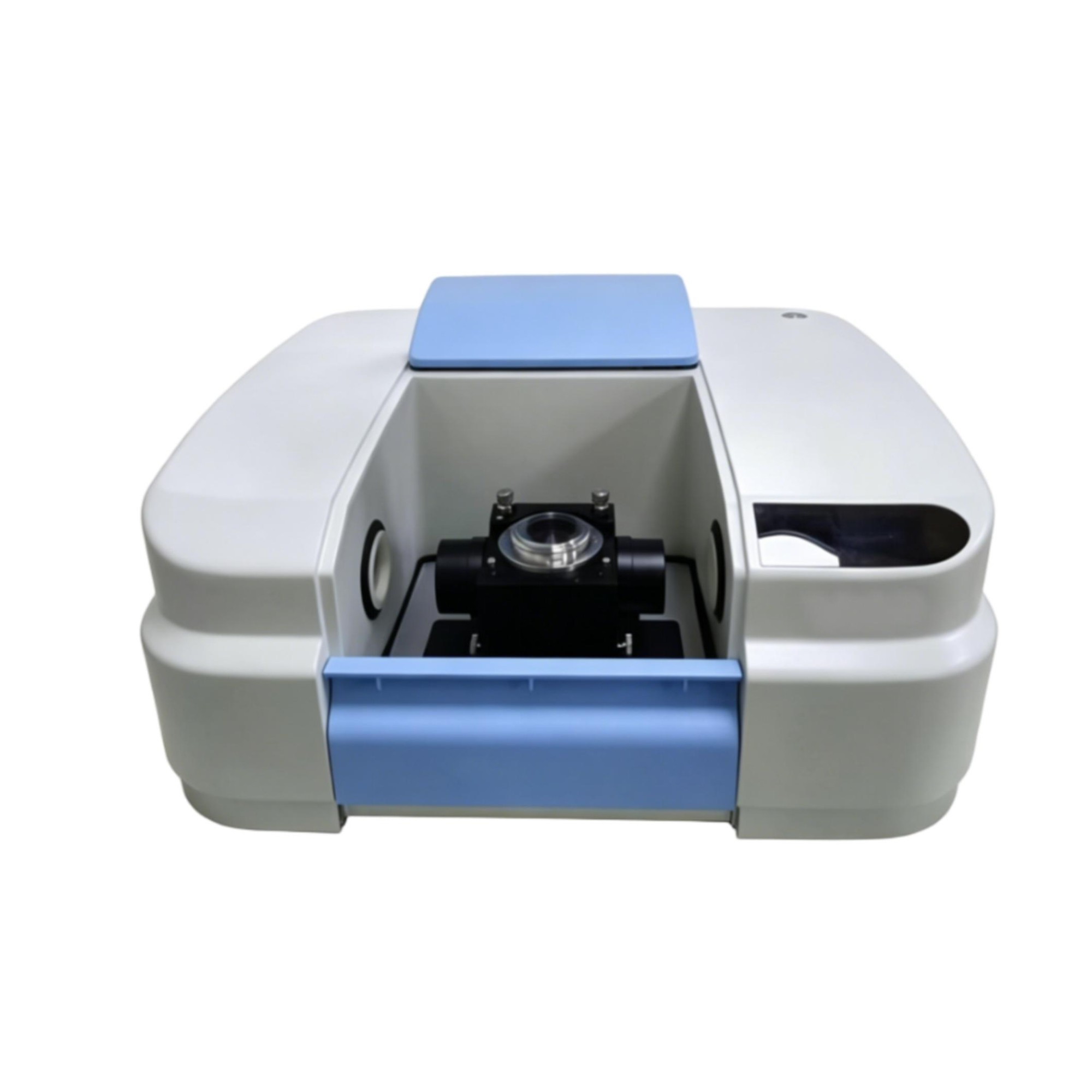

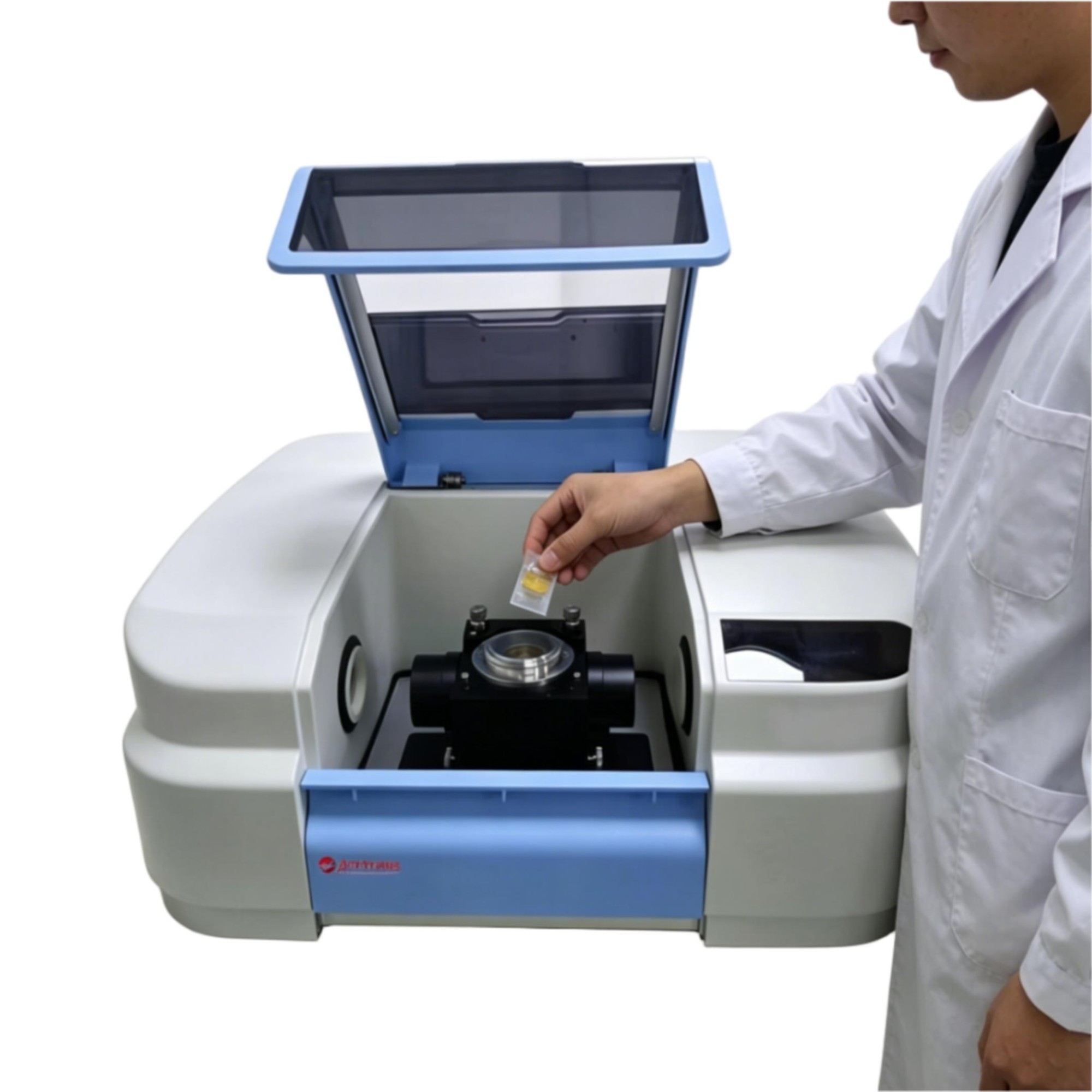

Large sample chamber design facilitates the connection of various accessories.
Compact and lightweight design with easy installation , simple operation, and convenient maintenance. The overall weight is only 14Kg, saving space on the experimental bench.
Product Specifications
|
Spectral Range |
7800～350 cm⁻¹ |
|
Resolution |
Better than 1.0 cm⁻¹ |
|
Wavenumber Accuracy |
≤0.01 cm⁻¹ |
|
Signal-to-Noise Ratio |
Better than 15000:1 / Better than 30000:1 (P-P value, 4 cm⁻¹, one-minute scan), optional |
|
Beam Splitter |
Germanium-coated KBr substrate (imported) |
|
Light Source |
High-energy, high-efficiency, long-life ceramic light source (imported) |
|
Interferometer |
30-degree incidence angle Michelson interferometer |
|
Detector |
High-sensitivity DLATGS detector with moisture-proof membrane (imported) |
|
Data Transfer Interface |
USB 2.0 (compatible with 3.0) |
|
Supported Systems |
Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 |
|
Dimensions |
450mm×350mm×235mm |
|
Weight |
14Kg |
Application Industries
Testing of food,pharmaceuticals, and their packaging materials.
Identification of polymers such as plastics, rubbers, nylons, and resins.
Traceability of asphalt and determination of SBS content.
Measurement of fatty acid methyl ester content.
Determination of the structural clusters of mineral insulating oils and lubricants.
Identification and determination of typical unconventional additives in automotive gasoline.
Measurement of carbon and oxygen content in silicon crystals.
Identification of textile fibers.
