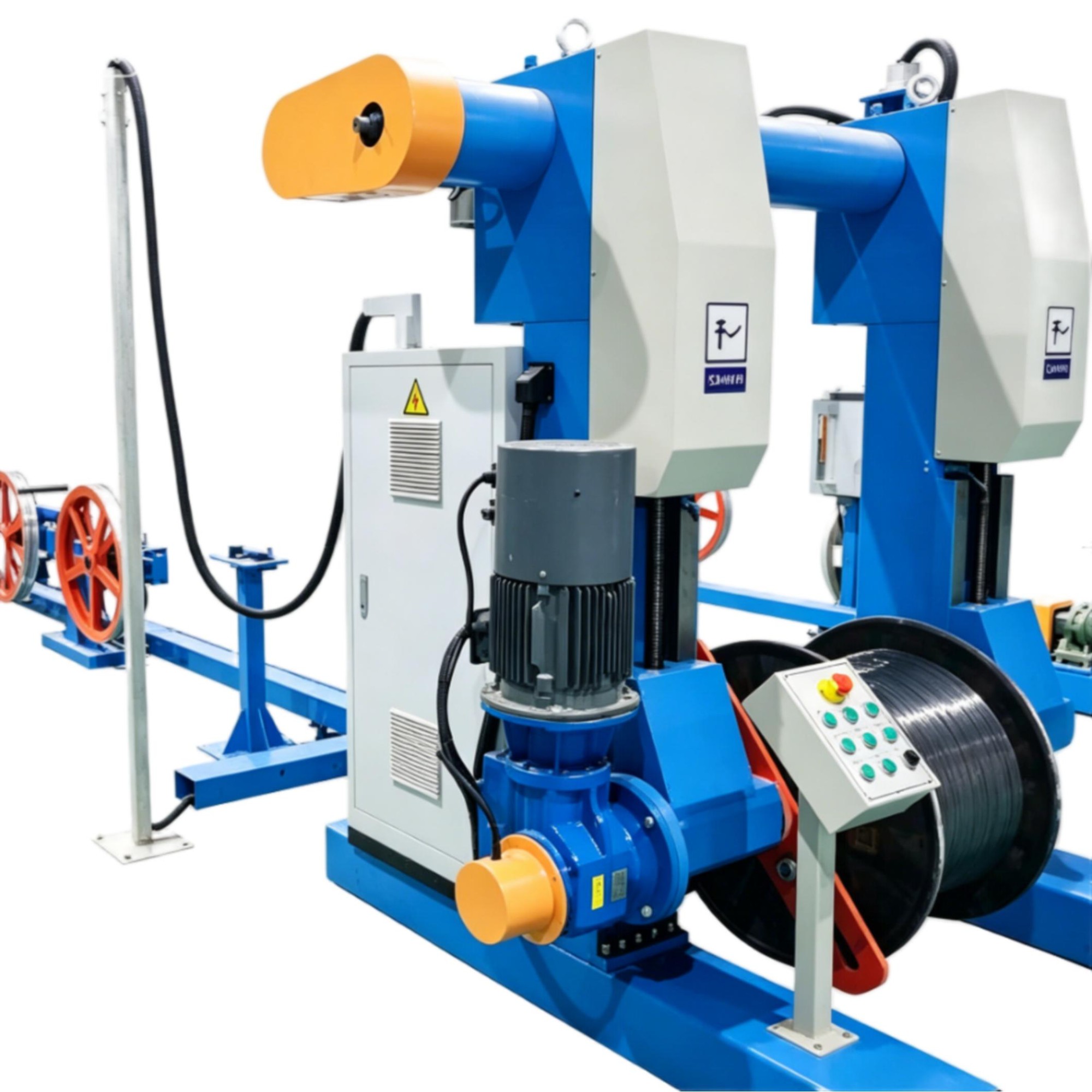

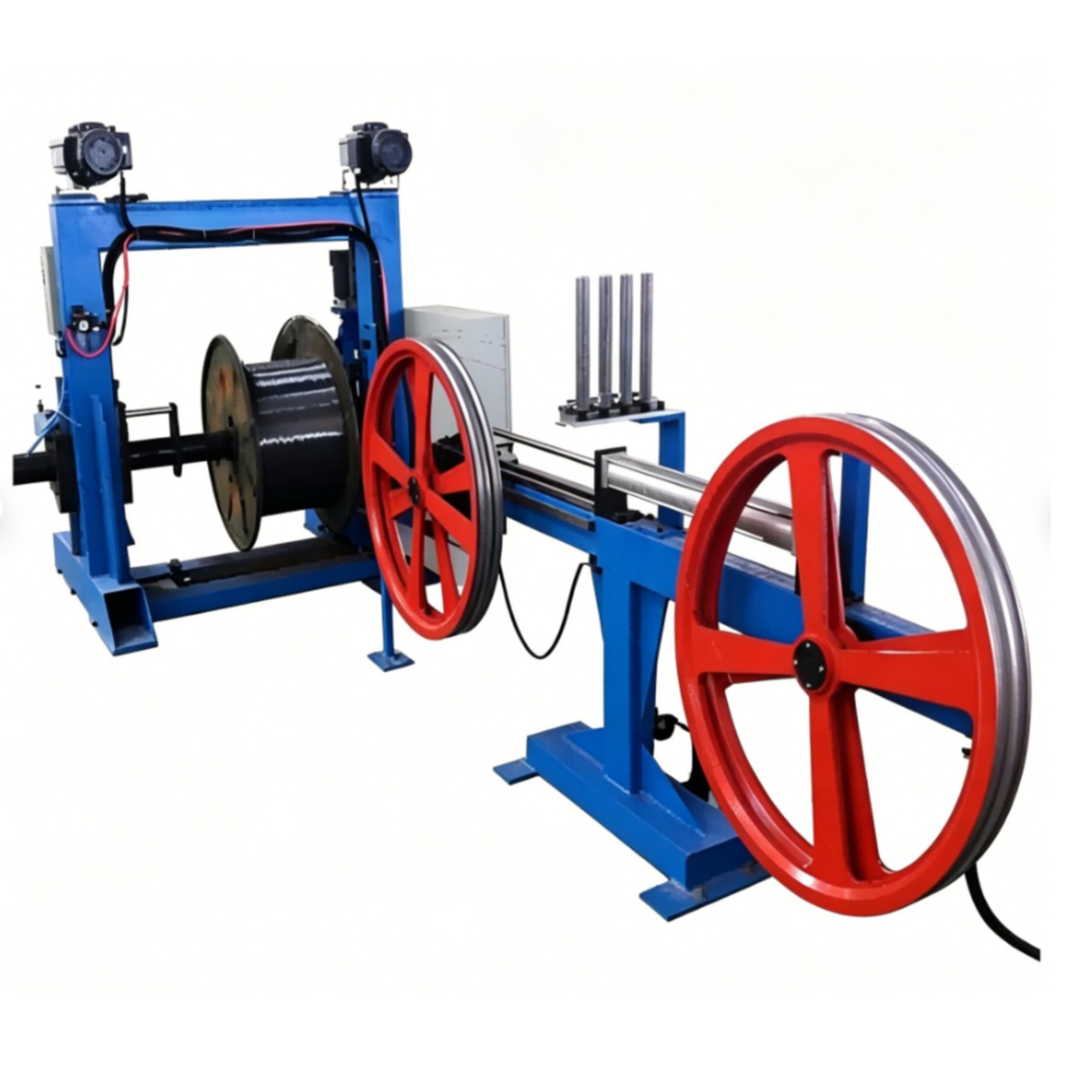

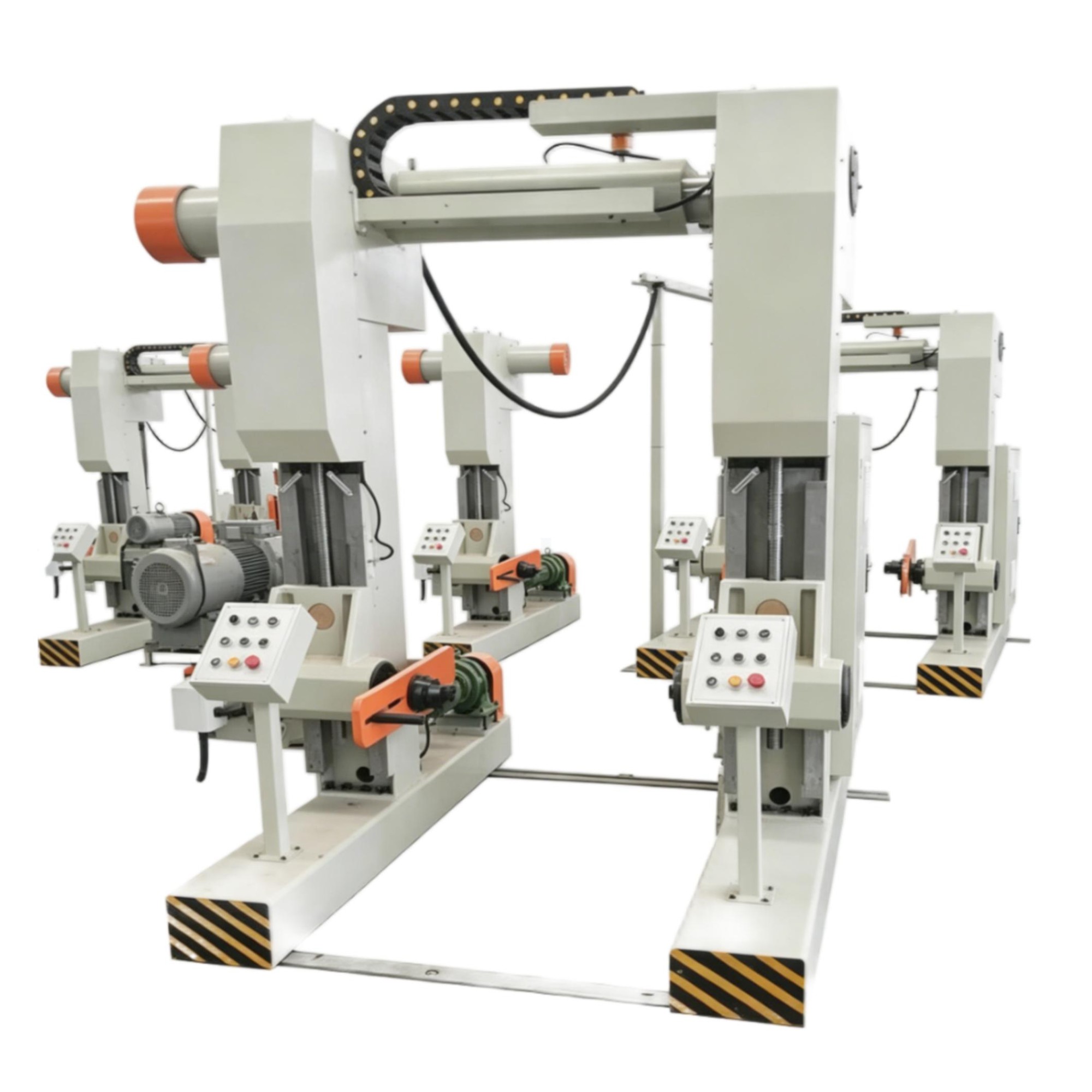

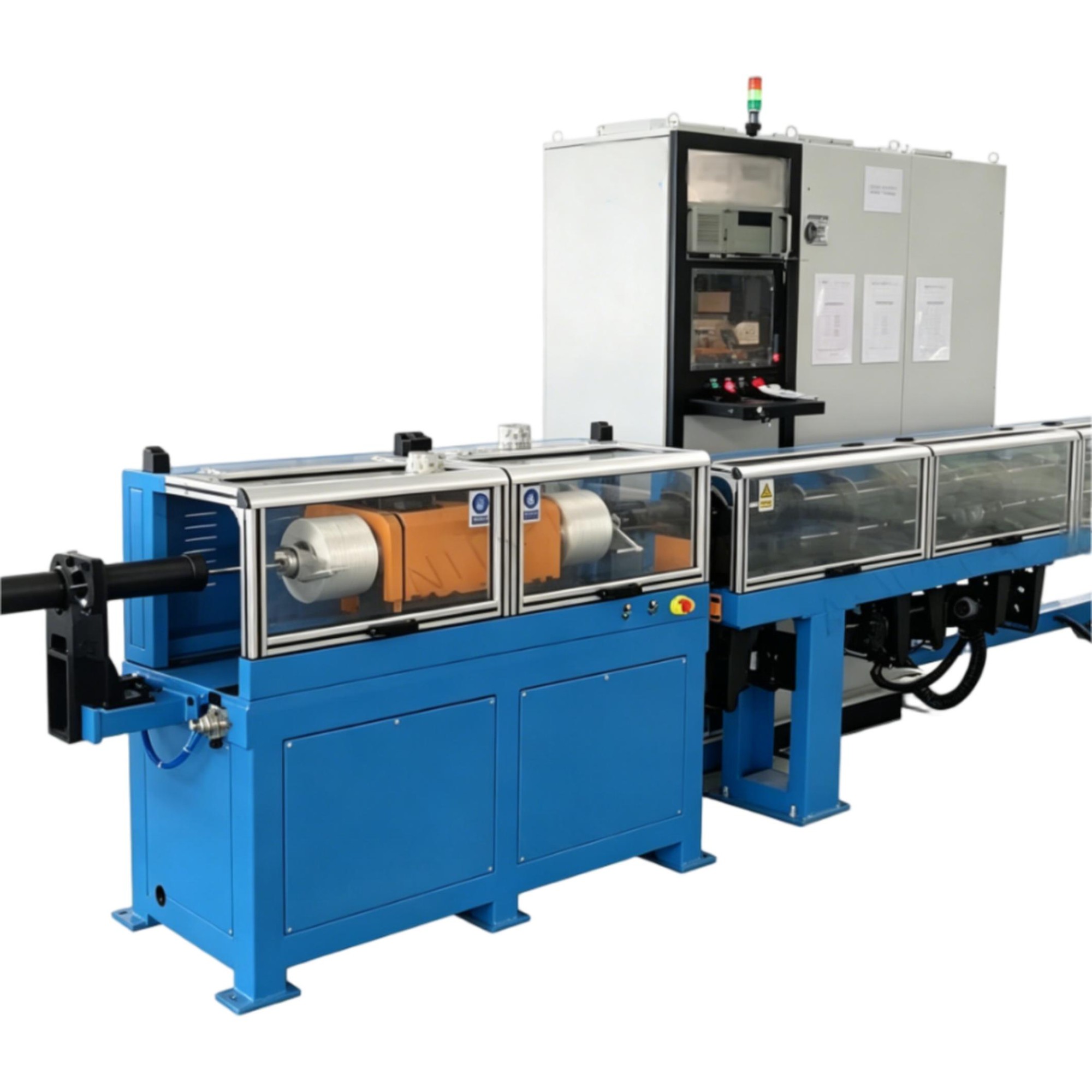

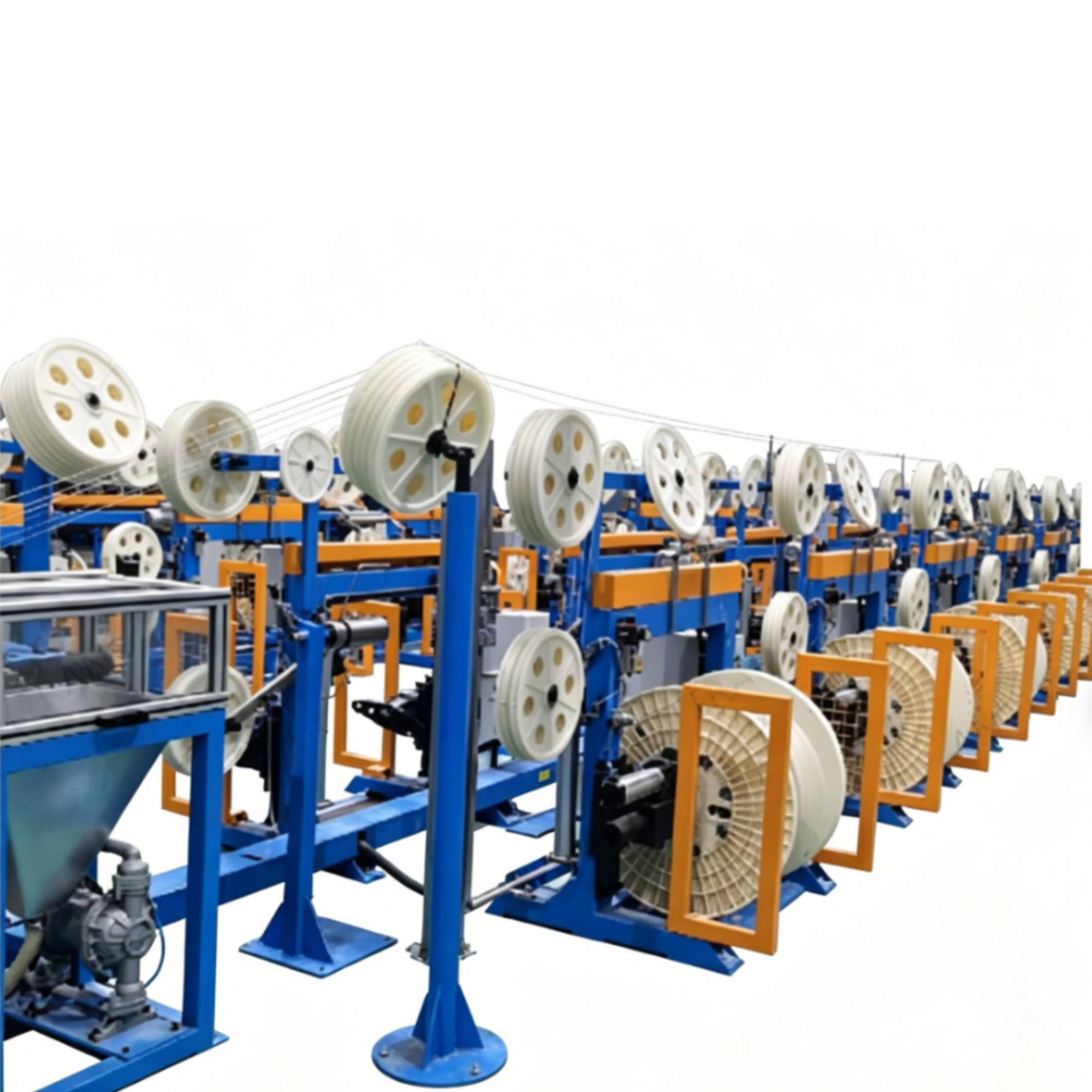

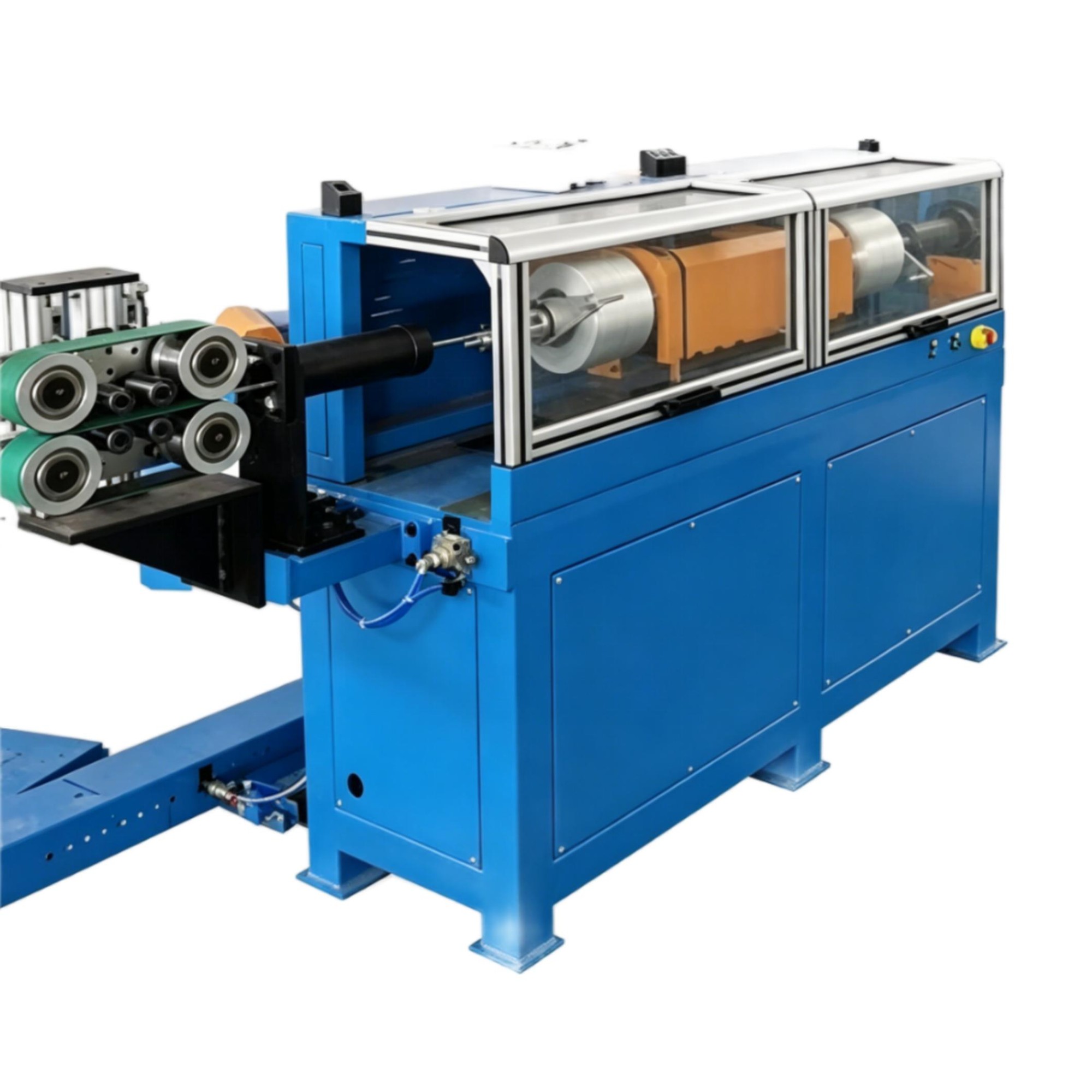

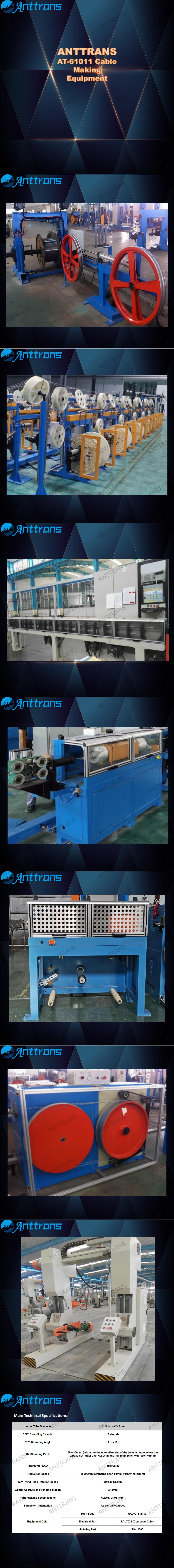

Cabling equipment
- Product Item : AT61011
- Category： Optical Fiber & Cable Production Equipment
- Product description：Its main feature is the adoption of a double-concentric high-speed yarn tying head and a high-speed "SZ" stranding head, which can significantly increase the speed and production efficiency of the c a
Equipment Main Purpose and Characteristics:
This equipment is suitable for "SZ" stranding of optical fiber loose tubes with diameters below Ф3.5mm. Its main feature is the adoption of a double-concentric high-speed yarn tying head and a high-speed "SZ" stranding head, which can significantly increase the speed and production efficiency of the c abling machine.
|
Loose Tube Diameter |
Ф1.5mm～Ф3.5mm |
|
|
"SZ" Stranding Strands |
12 strands |
|
|
"SZ" Stranding Angle |
±8π-±18π |
|
|
SZ Stranding Pitch |
55～300mm (related to the outer diameter of the jacketed tube: when the tube is not larger than Ф2.0mm, the minimum pitch can reach 55mm) |
|
|
Structural Speed |
100m/min |
|
|
Production Speed |
≥90m/min (stranding pitch 60mm, yarn tying 23mm) |
|
|
Yarn Tying Head Rotation Speed |
Max 4000r/min |
|
|
Center Aperture of Stranding Station |
Ф12mm |
|
|
Yarn Package Specifications |
Ф220170Ф95 (mm) |
|
|
Equipment Orientation |
As per the contract |
|
|
Equipment Color |
Main Body |
RAL5015 (Blue) |
|
Electrical Part |
RAL7032 (Computer Color) |
|
|
Rotating Part |
RAL2003 |
|
Main Technical Specifications:
