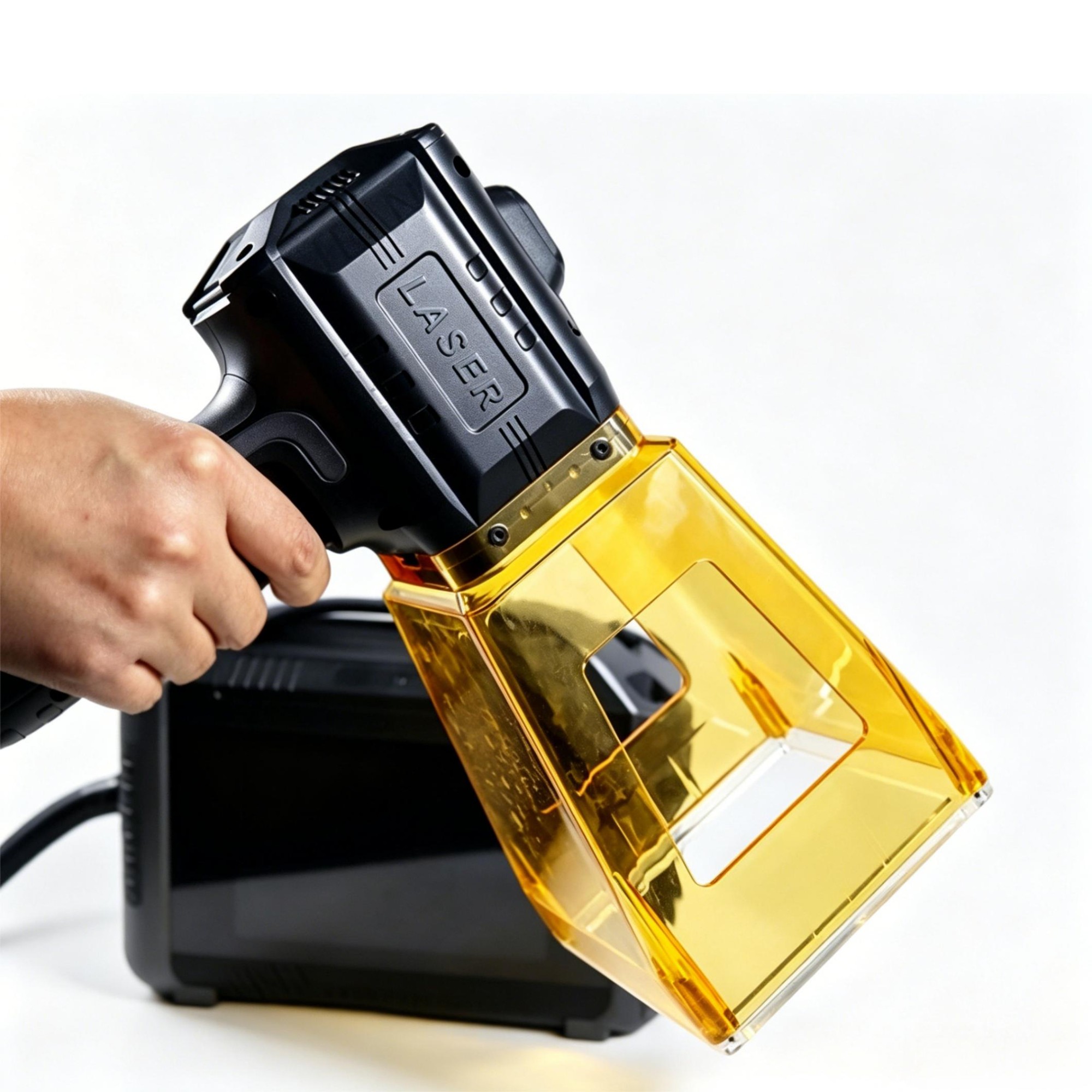

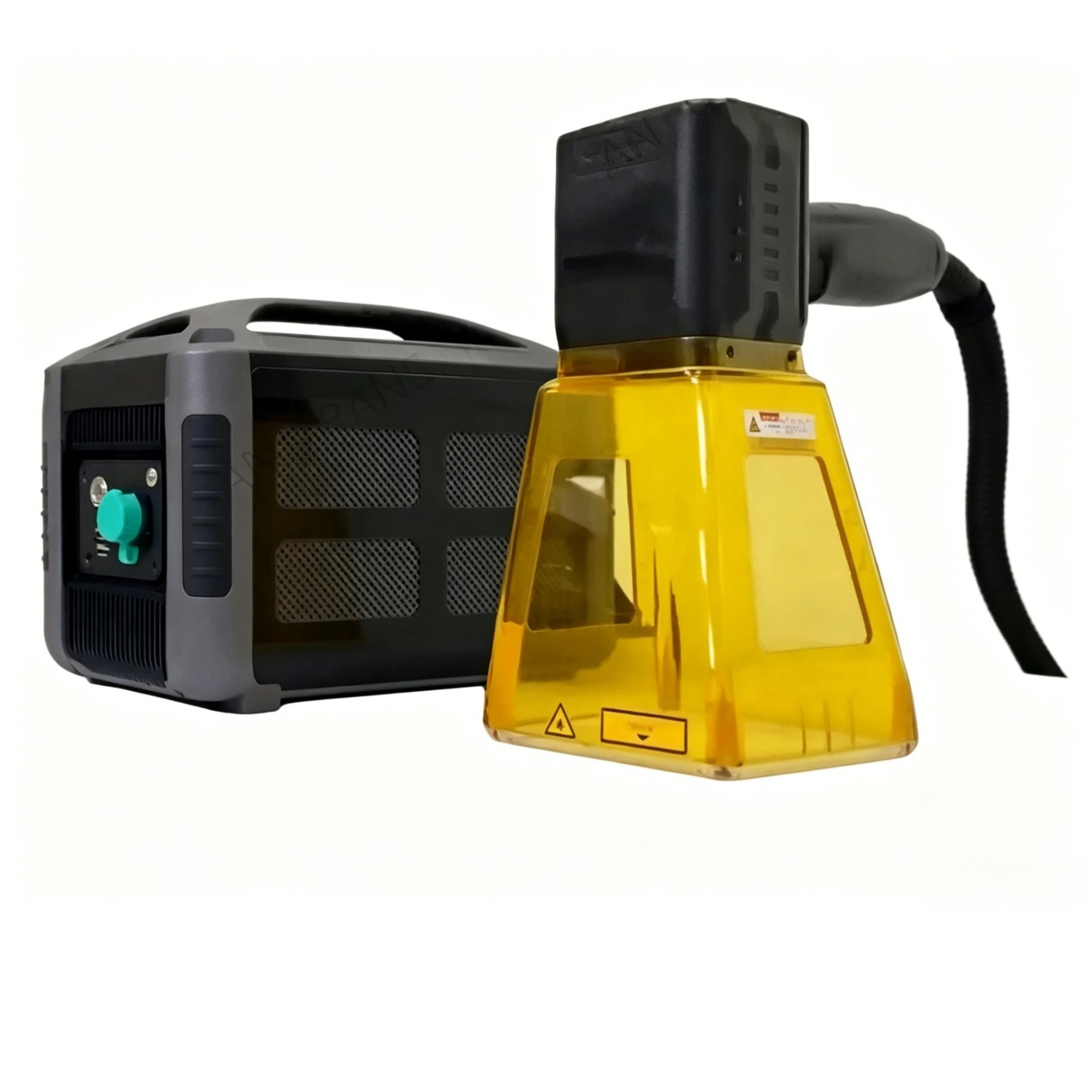

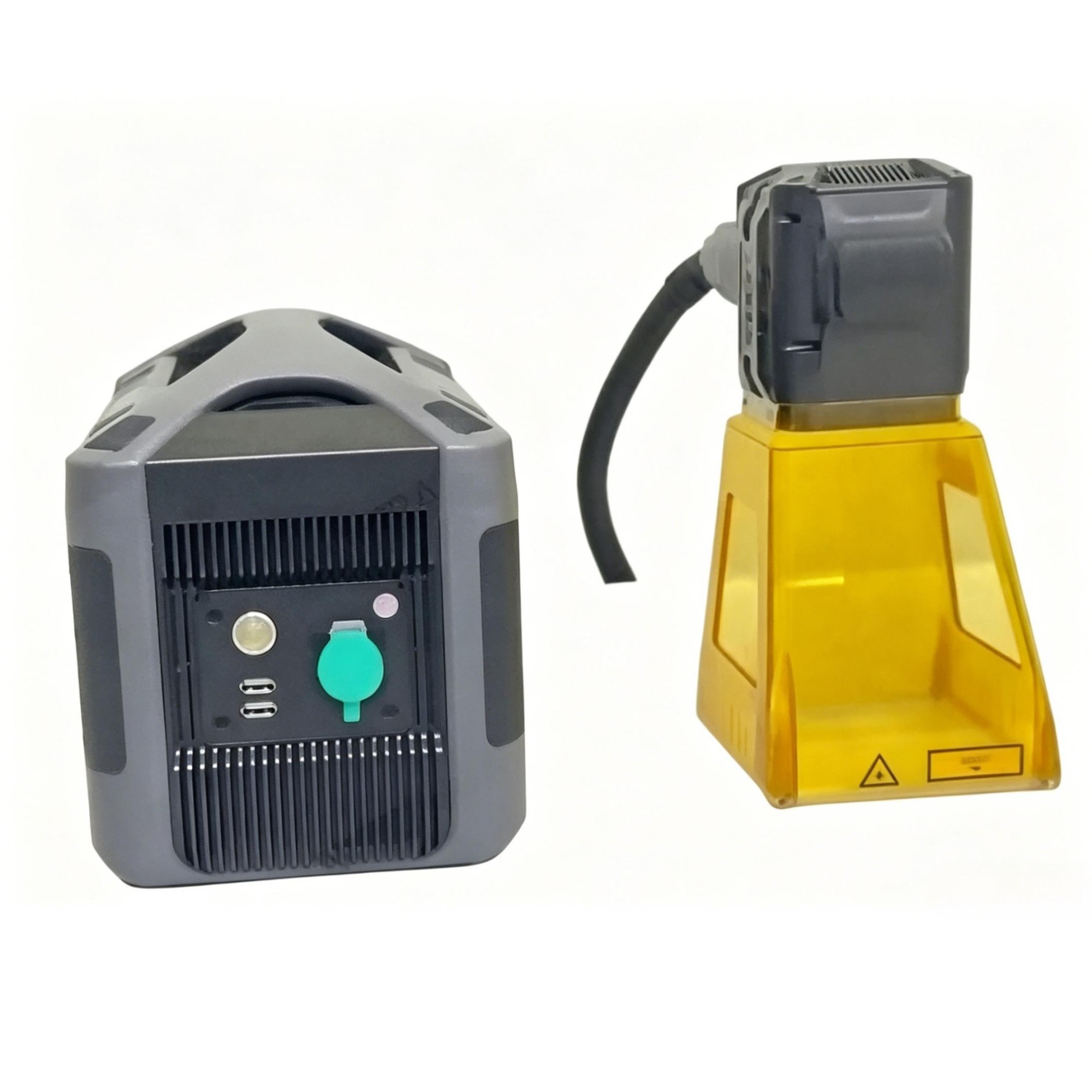

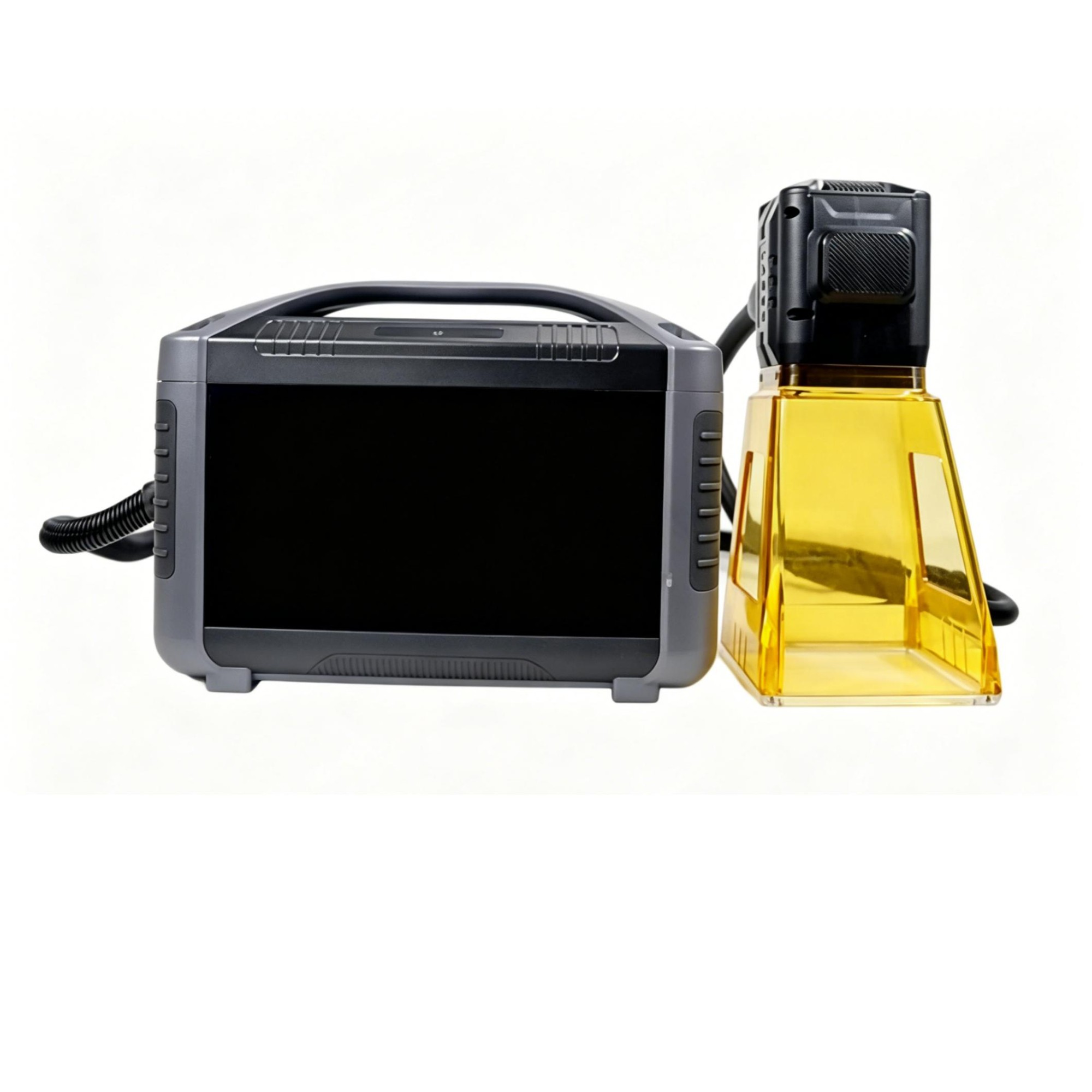

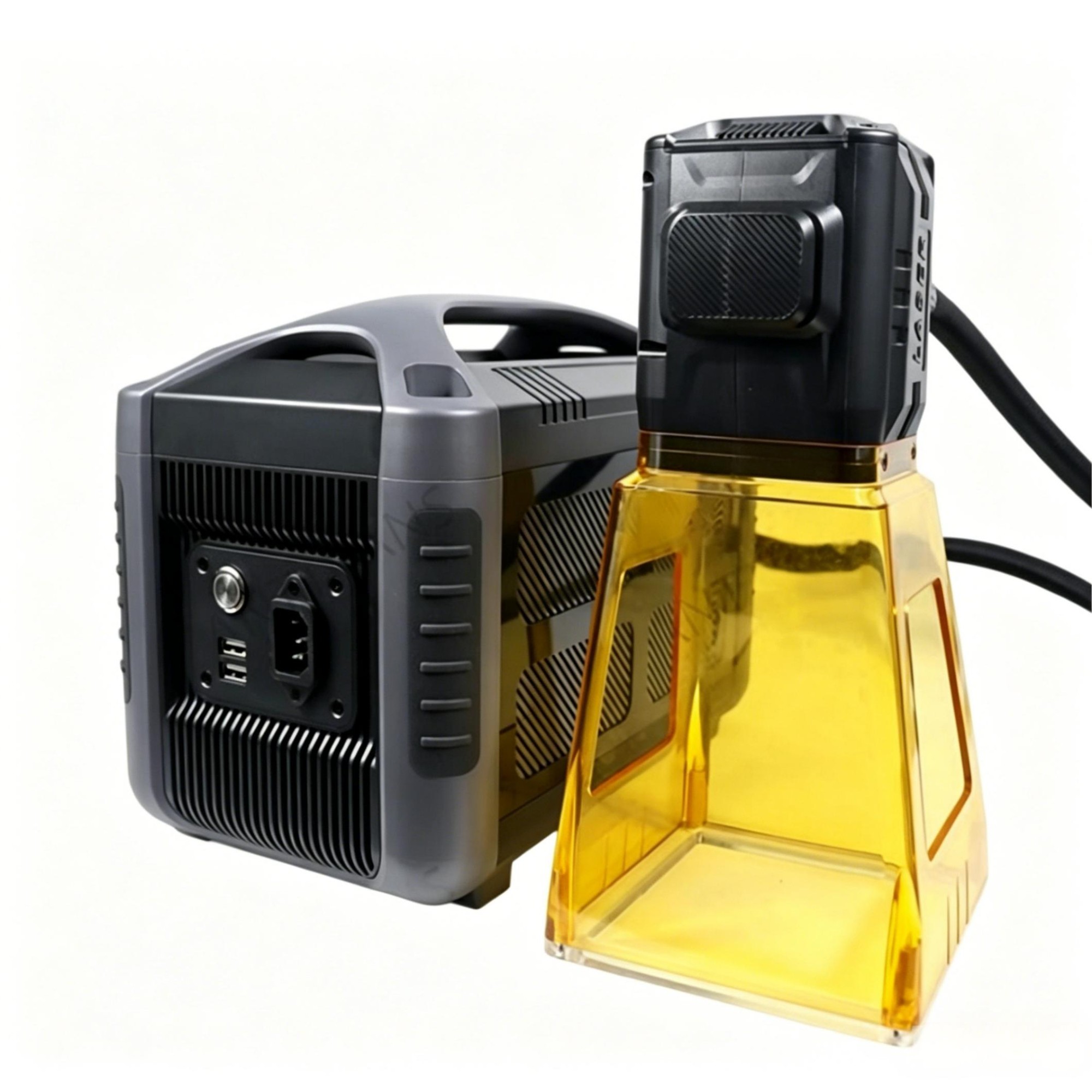

Handheld laser marking machine
- Product Item : AT61013
- Category： Laser Processing Equipment
- Product description：Handheld laser marking machine is a portable laser marking device that uses fiber laser technology to directly and permanently mark metal or partially non-metal surfaces, such as text, patterns, QR co
Product Introduction
Widely applied in industries such as hardware products, 3C components, automotive parts, home appliances, kitchenware, and bathroom fixtures. Methods including mechanical engraving, chemical etching, screen printing, ink printing, and more.
Handheld fiber laser marking equipment, compact and portable, simple to operate, and flexible to use.
This equipment offers high cost-effectiveness, utilizing high-quality fiber lasers and high-stability galvanometer systems to easily meet most common laser marking applications.
Fiber laser engraving offers advantages such as low cost, high flexibility, and environmental friendliness.
Anti-counterfeiting: A typical feature is the use of a laser beam to create permanent markings. These markings are difficult to Imitation and change
Product Specifications
|
Specification |
Value |
Specification |
Value |
|
Laser Power |
20W |
Laser Power |
30W |
|
Laser Wavelength |
1064nm |
Laser Wavelength |
1064nm |
|
Beam Quality |
<1.8 |
Beam Quality |
<1.8 |
|
Repetition Accuracy |
±0.002mm |
Repetition Accuracy |
±0.002mm |
|
Maximum Line Speed |
12000mm/s |
Maximum Line Speed |
12000mm/s |
|
Engraving Range |
5050mm-100100mm |
Engraving Range |
5050mm-100100mm |
|
Minimum Line Width |
0.012mm |
Minimum Line Width |
0.012mm |
|
Minimum Character Size |
0.15mm |
Minimum Character Size |
0.15mm |
|
Operating System |
Proprietary Operating System |
Operating System |
Proprietary Operating System |
|
Power Requirement |
220V/50Hz/10A |
Power Requirement |
220V/50Hz/10A |
|
Operating Temperature |
0℃-45℃ |
Operating Temperature |
0℃-45℃ |
|
Supported Formats |
PLT, DXF, and other line formats |
Supported Formats |
PLT, DXF, and other line formats |
|
Price |
RMB 8000 |
Price |
RMB 9000 |
