Gorilla Glass Victus 2
- Product Item : AT-61159
- Category： Optical Cover Glass Materials
- Product description：continues to push the boundaries of glass by advancing the durability of our toughest Gorilla Glass yet. Gorilla Glass Victus 2 delivers improved drop performance on rough surfaces like concrete, whil
Gorilla Glass Victus 2
continues to push the boundaries of glass by advancing the durability of our toughest Gorilla Glass yet. Gorilla Glass Victus 2 delivers improved drop performance on rough surfaces like concrete, while maintaining the advantaged scratch performance of Gorilla Glass Victus .
Product information
Benefits
• Improved drop performance, up to 1m on 80-grit and up to 2m on 180-grit
• High resistance to scratch and sharp contact damage
• High retained strength after use
• Superior surface quality, with the same advantaged scratch resistance as Gorilla Glass Victus
Applications

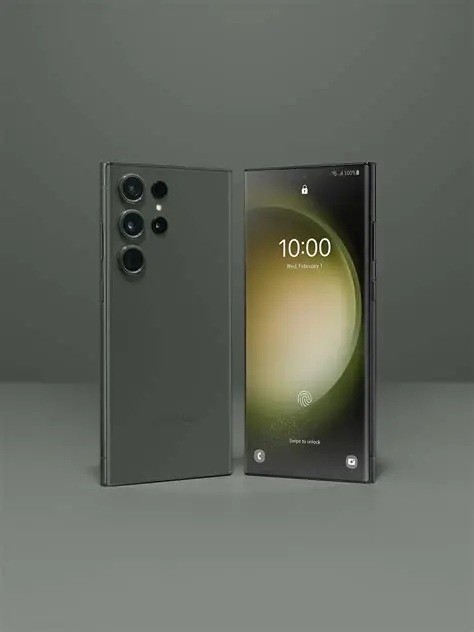

Ideal protective cover material for the front and back of all
|
electronic devices: • Smartphones • Notebook PCs • Tablets • Smartwatches and wearables |
• Smart Homedevices • Cameras • Commercial and Point of Sale Displays |
Thickness
Standard
Other
Viscosity
Softening Point (107.6 poises) 878 °C
Annealing Point (1013.2 poises) 631 °C
Strain Point (1014.7 poises) 579 °C
|
Properties Density Young’s Modulus Poisson’s Ratio Shear Modulus Vickers Hardness (200g load) Unstrengthened Strengthened Fracture Toughness Coefficient of Thermal Expansion (0-300°C) |
2.41 g/cm3 79 GPa 0.22 32.2 GPa 595 kgf/mm2 670 kgf/mm2 0.82 MPa m0.5 58.8 x 10-7/°C |
Chemical Strengthening
Please contact a Account Manager for chemical
strengthening capability based on thickness and application.
Optical
Refractive Index (590 nm)
Core Glass* 1.51
Compression Layer 1.52
Photo-elastic constant 30.8 nm/cm/MPa
Transmission ≥ 90.5%
@ 0.7 mm thickness
Chemical Durability
Durability is measured via weight loss per surface area after immersion in the solvents shown below. Values are highly dependent upon actual testing conditions. Data is reported for Gorilla Glass Victus 2.
|
Reagent |
Time |
Temperature(° C) |
Weight Loss(mg/cm2) |
|
HCI – 5 wt% |
24 hrs. |
95 |
3.6 |
|
NH4F:HF – 10 wt% |
20 min. |
20 |
1.3 |
|
HF – 10 wt% |
20 min. |
20 |
14.6 |
|
NaOH – 5 wt% |
6 hrs. |
95 |
2.2 |
Electrical
Frequency (MHz) Dielectric Constant Loss Tangent
54 6.45 0.008
163 6.41 0.008
272 6.40 0.009
381 6.38 0.009
490 6.38 0.008
599 6.37 0.009
912 6.39 0.010
1499 6.37 0.010
1977 6.36 0.011
2466 6.34 0.011
2986 6.33 0.012
Terminated coaxial line similar to that outlined in NIST Technical Notes 1520 and 1355-R

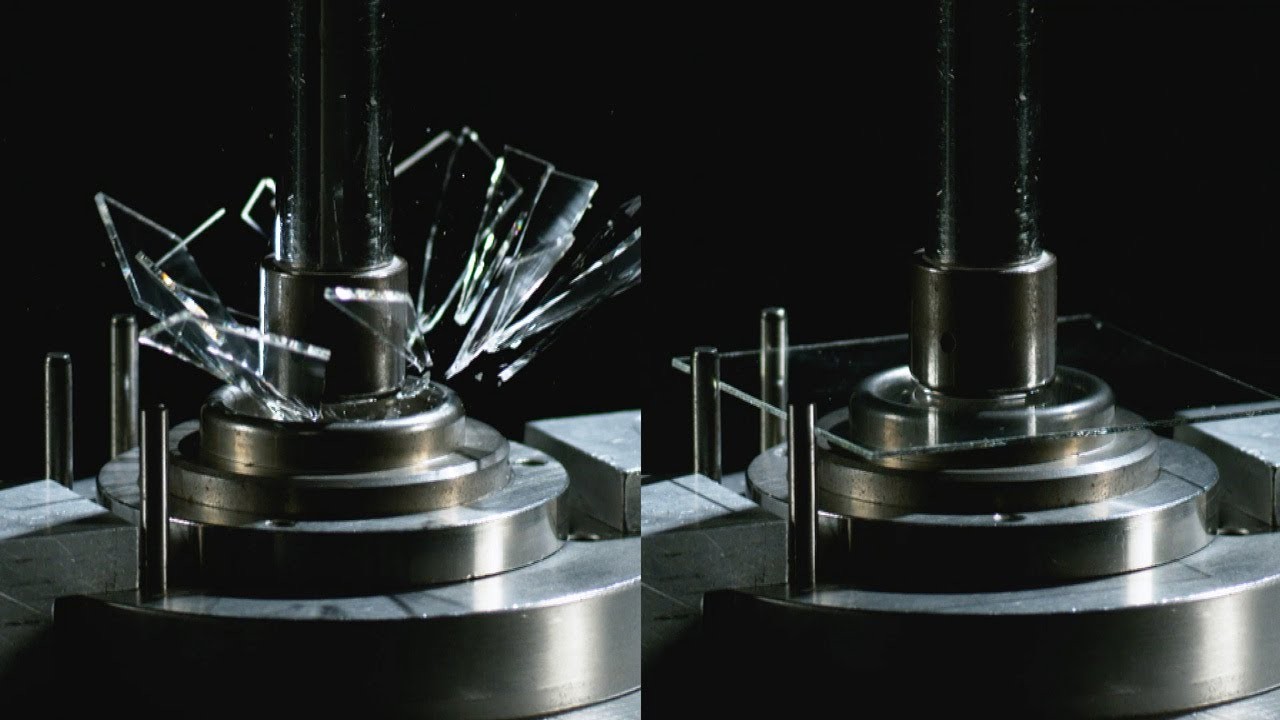

Drop Test Performance
Gorilla Glass Victus 2 is up to 50% better than competitive Al-Si glasses on 80-grit sandpaper
In lab tests, Gorilla Glass Victus 2 survived drops from up to 1 meter on 80-grit sandpaper, simulating rough surfaces.Competitive aluminosilicate typically fails from less than 0.5 meters.
In additional lab testing, Gorilla Glass Victus 2 survived drops from up to 2 meters on 180-grit sandpaper.

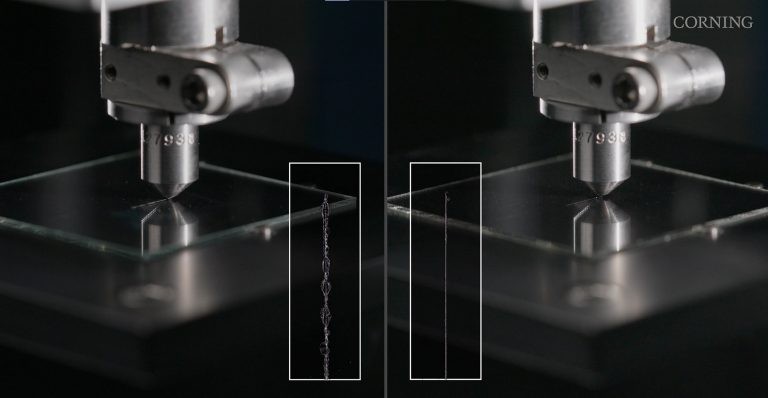

Scratch Test Performance
Gorilla Glass Victus 2 has up to 4x higher scratch threshold than competitive Al-Si glasses
We tested for scratch threshold using our Knoop Diamond Scratch Test.
For Gorilla Glass Victus 2, the scratch threshold is typically 8-10 Newtons.
The typical threshold for competitive aluminosilicate is at 2-4 Newtons.
